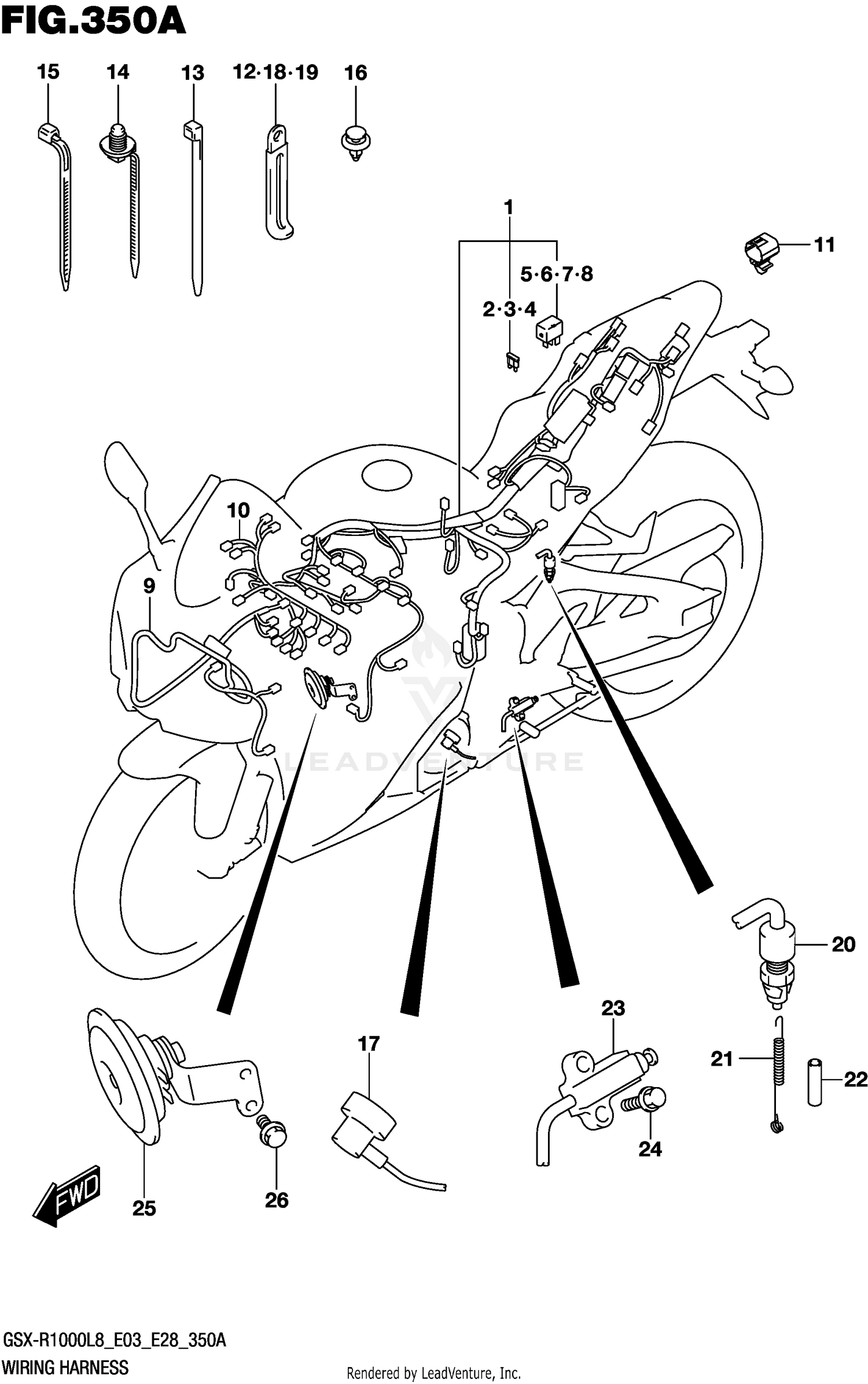

Wiring Harness (gsx-r1000l8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-17K40
Superseded by 36610-17K41
|
$1,057.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (7.5A)
09481-07504
|
$1.56 | ||
|
Unavailable |
|||
|
#3
.FUSE (10A)
09481-10504
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15504
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
.RELAY
38860-76F01
|
$43.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RELAY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#7
.RELAY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#8
.RELAY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#9
HARNESS, WIRING NO.2
36620-17K10
|
$279.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
HARNESS,WIRING NO.3
36630-17K00
|
$223.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP,TS
36654-06J30
Superseded by 36654-06J31
|
$16.41 | ||
|
Unavailable |
|||
|
#12
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#13
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP
09409-06328
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE,OIL PRESSURE SWITCH LEAD
36851-17K00
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#19
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH ASSY,STOP LAMP
37740-17K00
|
$28.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING
43232-17K00
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
SWITCH ASSY,SIDE STAND
37840-35F00
Superseded by 37840-35F02
|
$63.94 | ||
|
Unavailable |
|||
|
#24
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
HORN ASSY
38500-17K00
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
