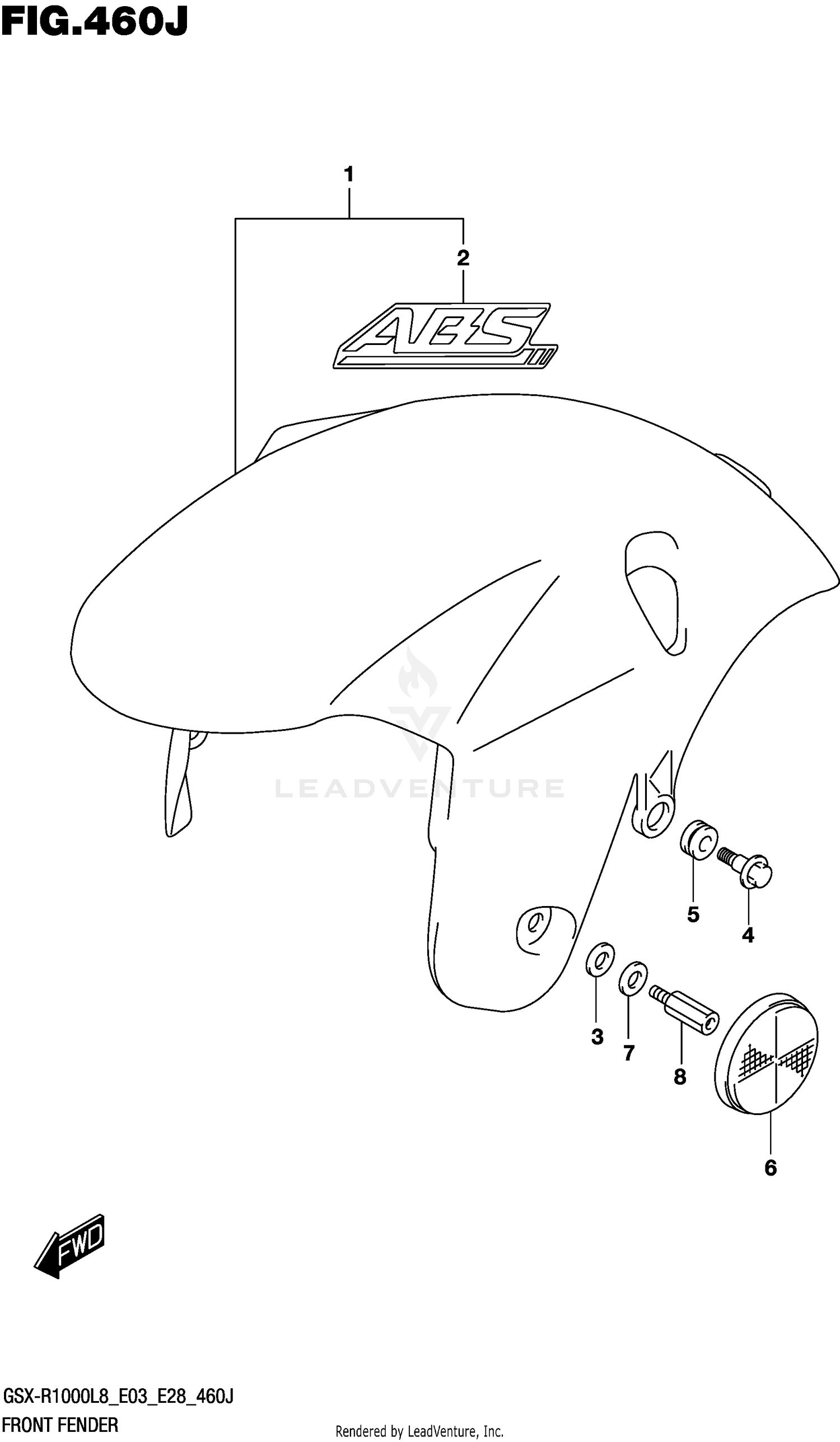

Front Fender (gsx-r1000rzl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
FENDER,FRONT (BLACK)
53110-17K10-YVB
Superseded by 53110-17K11-YVB
|
$294.16 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
FENDER,FRONT
53110-17K10-YWW
Superseded by 53110-17K11-YWW
|
$296.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,ABS (GRAY)
68151-44G00-1ZY
Superseded by 68151-44G01-1ZY
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,FR FENDER,FRONT NO.2
53121-33E00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X19)
09111-06092
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (8.5X18X1)
09160-08043
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
35952-17K00
Superseded by 35952-17K01
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
