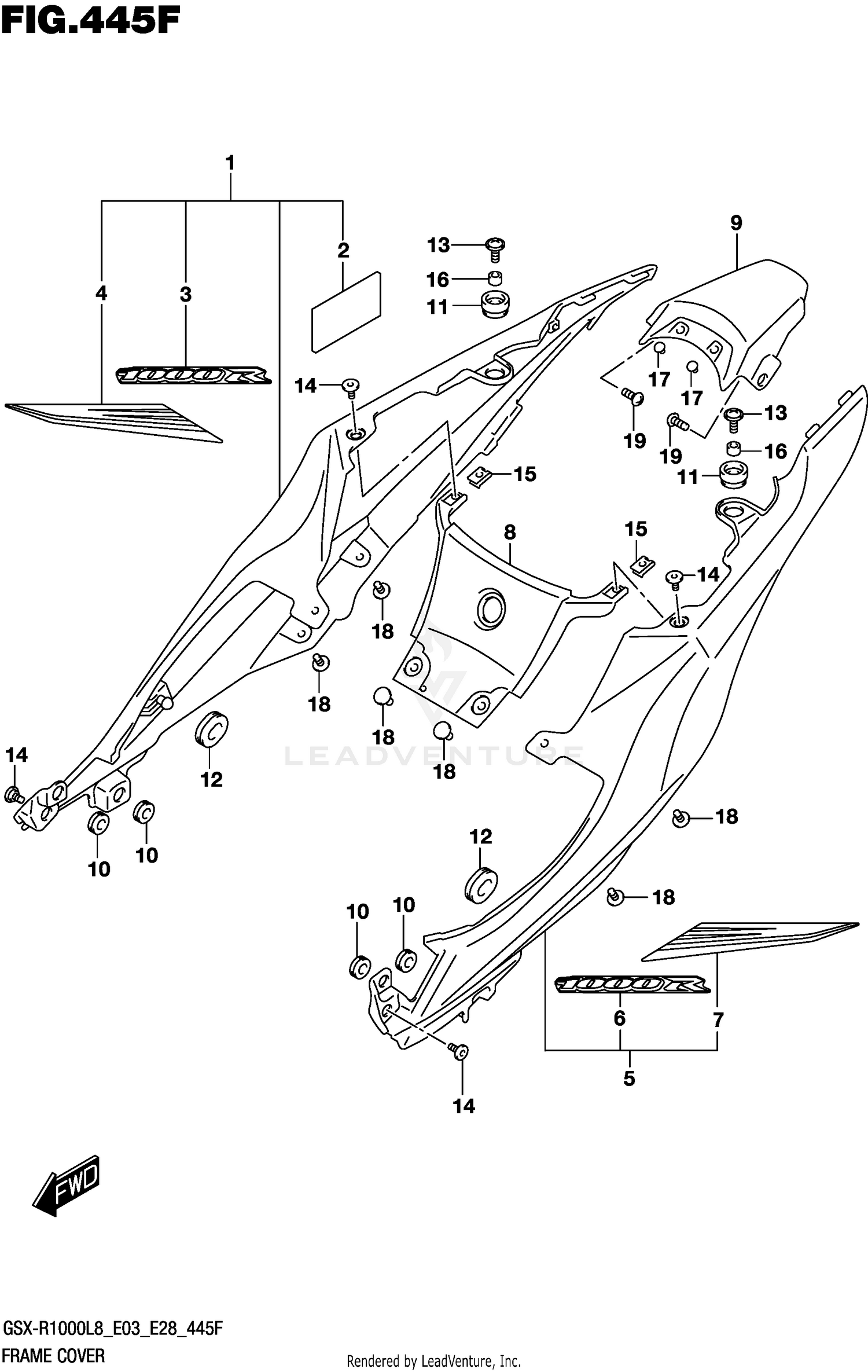

Frame Cover (gsx-r1000rzl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
COVER, FRAME RH (BLACK)
47110-17K30-YVB
|
$170.07 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
COVER, FRAME RH (WHITE)
47110-17K30-YWW
|
$163.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CUSHION
33652-17K10
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
.EMBLEM, FRAME COVER
68131-17K00-BQP
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
.EMBLEM,FRAME COVER (WHITE,OR
68131-17K00-BQN
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
.TAPE, FRAME COVER RH
68135-17K10-BQM
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
.TAPE, FRAME COVER RH
68135-17K10-BQL
|
$35.83 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
COVER, FRAME LH (BLACK)
47210-17K30-YVB
|
$170.07 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
COVER, FRAME LH (WHITE)
47210-17K30-YWW
|
$163.84 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
.EMBLEM, FRAME COVER
68131-17K00-BQP
|
$20.62 | ||
|
Unavailable |
|||
|
#6-2
.EMBLEM,FRAME COVER (WHITE,OR
68131-17K00-BQN
|
$19.87 | ||
|
Unavailable |
|||
|
#7-1
.TAPE, FRAME COVER LH
68145-17K10-BQM
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#7-2
.TAPE, FRAME COVER LH
68145-17K10-BQL
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER,FRAME CENTER FRONT
47311-17K00
|
$34.62 | ||
|
Available to order. Add to View Price |
|||
|
#9-1
COVER, FRAME CENTER REAR
47411-17K00-YVB
|
$79.01 | ||
|
Available to order. Add to View Price |
|||
|
#9-1
(BLACK)
47411-17K00-YVB
|
$79.01 | ||
|
Unavailable |
|||
|
#9-2
COVER, FRAME CENTER REAR
47411-17K00-YWW
|
$76.11 | ||
|
Available to order. Add to View Price |
|||
|
#9-2
(WHITE)
47411-17K00-YWW
|
$76.11 | ||
|
Unavailable |
|||
|
#10
CUSHION
44173-14J00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
.CUSHION (10X24X13)
47312-37H00
Superseded by 47312-37H10
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CUSHION,UNDER COWL,R
94478-14J00
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X16)
09139-06139
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (5X13)
09139-05092
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (6.5X10X7)
09180-06283
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG (OD:10)
09250-06012
Superseded by 09250-06017
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
09409-06328
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
