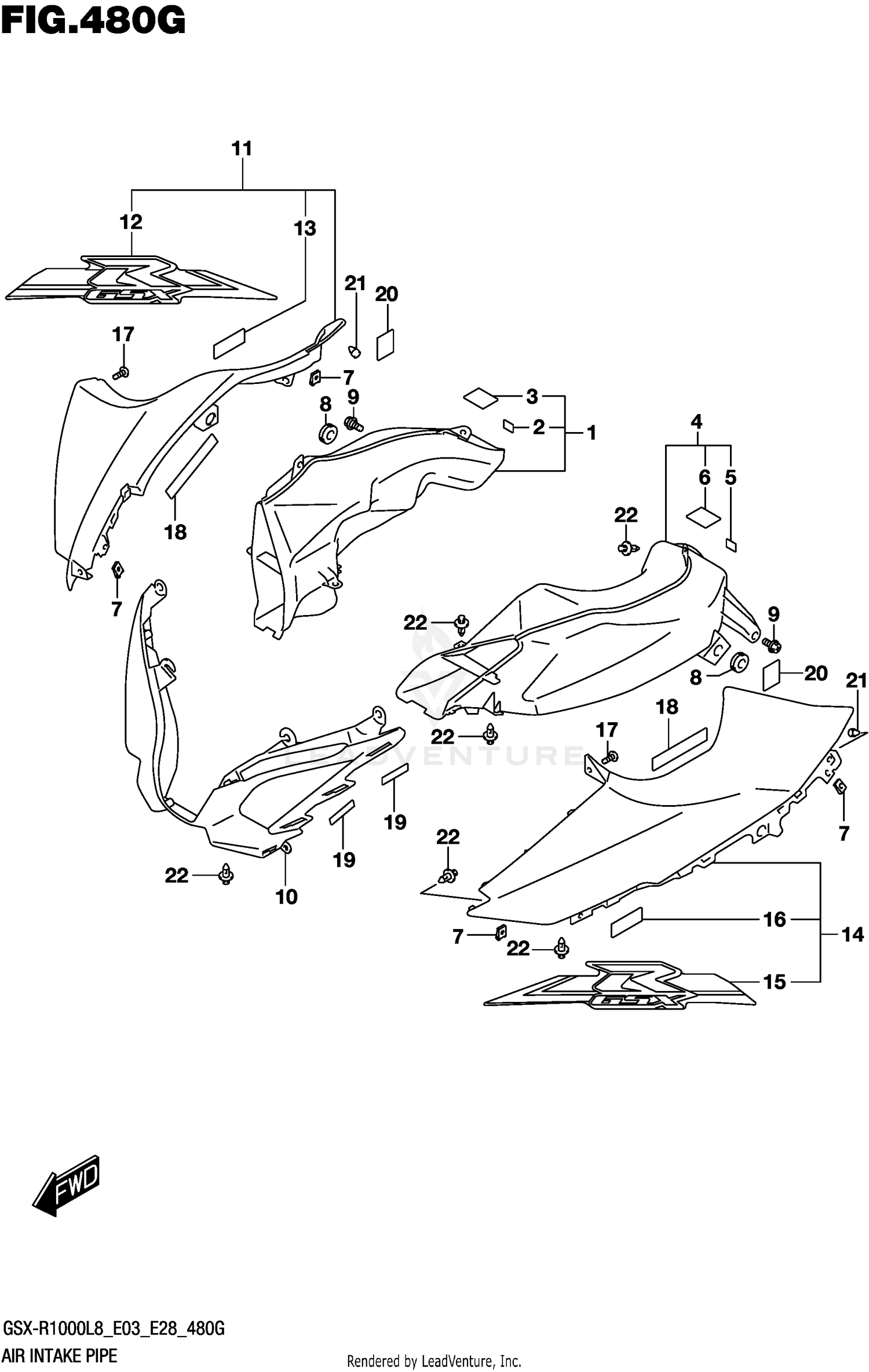

Air Intake Pipe (gsx-r1000rzl8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE,AIR INTAKE,R
94420-17K00
|
$81.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CUSHION (10X10X1)
63115-37H00
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE,AIR INTAKE,L
94430-17K00
|
$81.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION (10X10X1)
63115-37H00
|
$4.83 | ||
|
Unavailable |
|||
|
#6
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Unavailable |
|||
|
#7
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT (6X12)
09111-06106
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10-1
COVER, INTAKE (BLACK)
94671-17K00-YKV
|
$97.23 | ||
|
Available to order. Add to View Price |
|||
|
#10-2
COVER, INTAKE (WHITE)
94671-17K00-YWW
|
$101.46 | ||
|
Available to order. Add to View Price |
|||
|
#11-1
COVER, INTAKE RH (BLACK)
94670-17K10-YVB
|
$203.77 | ||
|
Available to order. Add to View Price |
|||
|
#11-2
COVER, INTAKE RH (WHITE)
94670-17K10-YWW
|
$203.77 | ||
|
Available to order. Add to View Price |
|||
|
#12-1
.TAPE, INTAKE COVER RH
68275-17K10-BQR
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#12-2
.TAPE, INTAKE COVER RH
68275-17K10-BQQ
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PAD (8X20X2)
73415-70A00
|
$1.83 | ||
|
Unavailable |
|||
|
#14-1
COVER, INTAKE LH (BLACK)
94680-17K10-YVB
|
$211.54 | ||
|
Available to order. Add to View Price |
|||
|
#14-2
COVER, INTAKE LH (WHITE)
94680-17K10-YWW
|
$203.77 | ||
|
Available to order. Add to View Price |
|||
|
#15-1
.TAPE, INTAKE COVER LH
68276-17K10-BQR
|
$24.98 | ||
|
Available to order. Add to View Price |
|||
|
#15-2
.TAPE, INTAKE COVER LH
68276-17K10-BQQ
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
.PAD (8X20X2)
73415-70A00
|
$1.83 | ||
|
Unavailable |
|||
|
#17
SCREW (5X12)
09132-05050
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION, COVER INTAKE NO.1
36930-82010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION,UNDER COWL,NO.1
94476-38C00
|
$2.67 | ||
|
Unavailable |
|||
|
#20
CUSHION,COVER SIDE
94633-31J00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION,LICENSE PLATE
09321-06013
Superseded by 09321-06036
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
