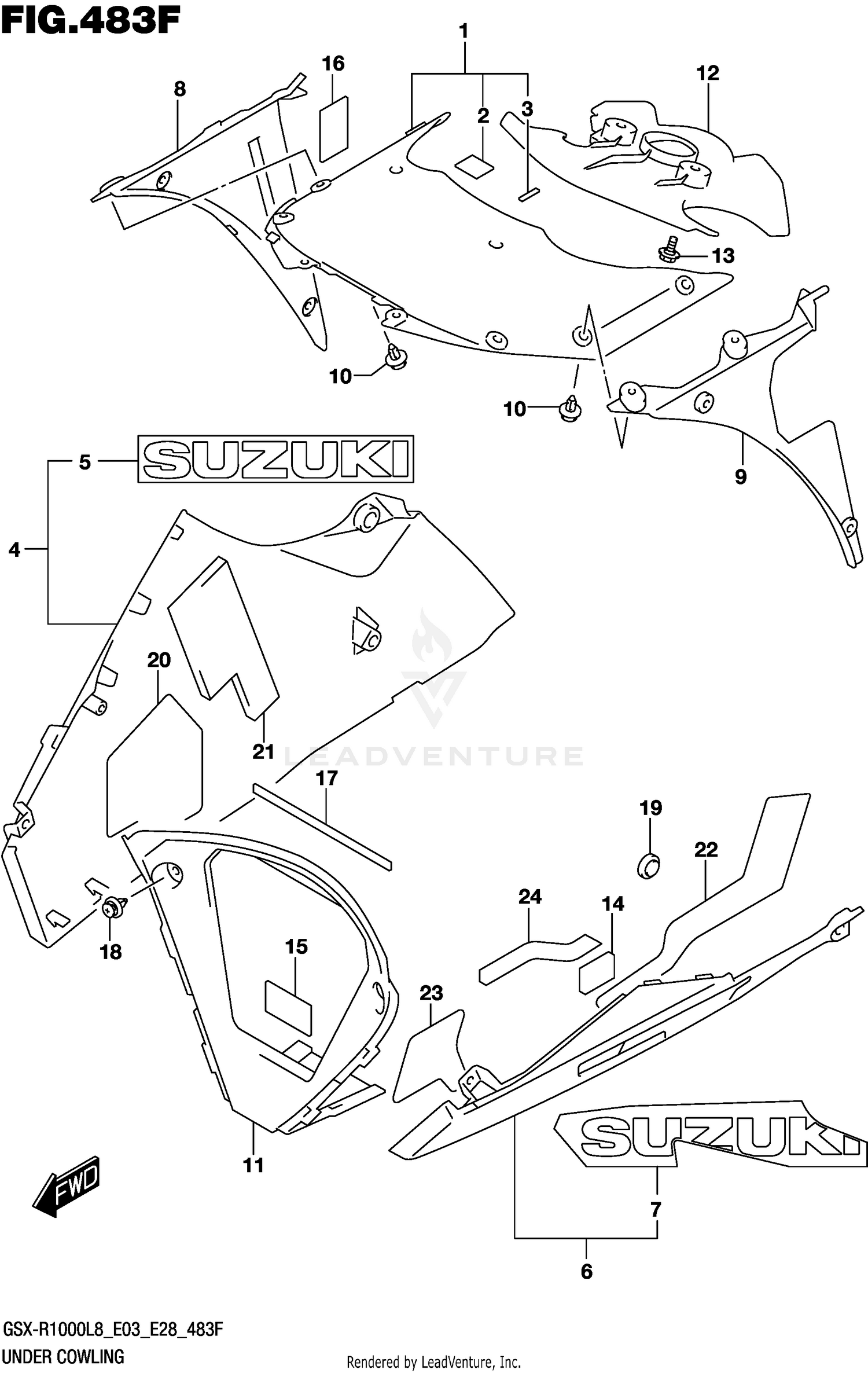

Under Cowling (gsx-r1000rzl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,BODY COWL
94620-17K00
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
COWLING, UNDER RH (BLACK)
94400-17K00-6UX
|
$174.68 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
COWLING, UNDER RH (WHITE)
94400-17K00-YWW
|
$168.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
.EMBLEM, "SUZUKI" (GRAY)
68181-47HA1-17U
|
$35.83 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
COWLING, UNDER LH (BLACK)
94500-17K00-6UX
|
$174.68 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
COWLING, UNDER LH (WHITE)
94500-17K00-YWW
|
$168.25 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
.EMBLEM, "SUZUKI"
68191-17K00-BQU
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
(GRAY/BLACK)
68191-17K00-BQU
|
$36.51 | ||
|
Unavailable |
|||
|
#7-2
.EMBLEM, "SUZUKI"
68191-17K00-BQT
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#7-2
(GRAY/WHITE)
68191-17K00-BQT
|
$36.51 | ||
|
Unavailable |
|||
|
#8
COWLING,UNDER INNER,R
94461-17K00
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWLING,UNDER INNER,L
94462-17K00
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COWLING,UNDER CTR
94491-17K00
|
$37.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,LWR BRACKET
94458-17K00
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, BATTERY (30X40X1.0
33652-13G00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, UNDER COWL NO.2
33652-35400
|
$2.25 | ||
|
Unavailable |
|||
|
#16
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Unavailable |
|||
|
#17
CUSHION, UNDER COWL NO.1
47121-31J00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
94479-35F00
|
$7.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CUSHION
09321-10018
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIELD,UNDER COWL HEAT,R
94476-17K00
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION,SIDE REAR,R NO.2
94477-17K10
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIELD,UNDER COWL HEAT,L
94486-17K00
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIELD,UNDER COWL HEAT,L NO.2
94486-17K10
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION,SIDE REAR,L NO.2
94487-17K10
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
