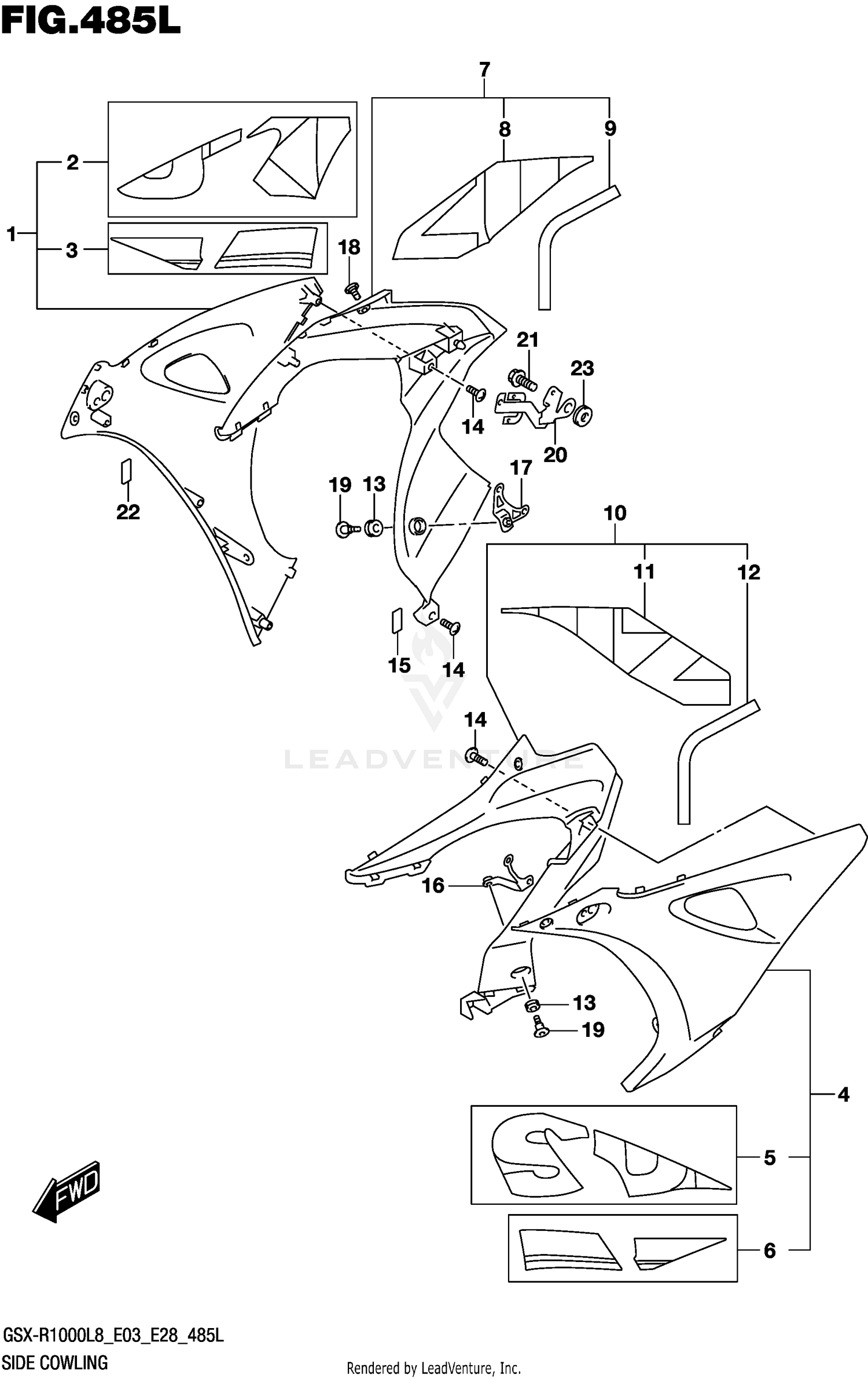

Side Cowling (gsx-r1000rzl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
COWLING, SIDE RH (BLACK)
94470-17K10-YVB
|
$329.73 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
COWLING, SIDE RH (WHITE)
94470-17K10-YWW
|
$318.94 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.TAPE, SIDE COWLING UPPER RH
68685-17K10-KGL
|
$41.81 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
(BLACK)
68685-17K10-KGL
|
$41.81 | ||
|
Unavailable |
|||
|
#2-2
.TAPE, SIDE COWLING UPPER RH
68685-17K10-BQS
|
$41.04 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
(WHITE/GRAY)
68685-17K10-BQS
|
$41.04 | ||
|
Unavailable |
|||
|
#3-1
.TAPE, SIDE COWLING LOWER RH
68685-17K20-BQM
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
.TAPE, SIDE COWLING LOWER RH
68685-17K20-BQL
|
$39.06 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
COWLING, SIDE LH (BLACK)
94480-17K10-YVB
|
$342.29 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
COWLING, SIDE LH (WHITE)
94480-17K10-YWW
|
$329.73 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
.TAPE, SIDE COWLING UPPER LH
68695-17K10-KGL
|
$34.95 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
(BLACK)
68695-17K10-KGL
|
$34.95 | ||
|
Unavailable |
|||
|
#5-2
.TAPE, SIDE COWLING UPPER LH
68695-17K10-BQS
|
$40.27 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
(WHITE/GRAY)
68695-17K10-BQS
|
$40.27 | ||
|
Unavailable |
|||
|
#6-1
.TAPE, SIDE COWLING LOWER LH
68695-17K20-BQM
|
$33.27 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
.TAPE, SIDE COWLING LOWER LH
68695-17K20-BQL
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
COWLING, SIDE REAR RH (BLACK)
94450-17K10-YVB
|
$246.51 | ||
|
Available to order. Add to View Price |
|||
|
#7-2
COWLING, SIDE REAR RH (WHITE)
94450-17K10-YWW
|
$246.51 | ||
|
Available to order. Add to View Price |
|||
|
#8-1
.TAPE, SIDE COWLING REAR RH
68680-17K00-KGL
|
$27.88 | ||
|
Available to order. Add to View Price |
|||
|
#8-1
(BLACK)
68680-17K00-KGL
|
$27.88 | ||
|
Unavailable |
|||
|
#8-2
.TAPE, SIDE COWLING REAR RH
68680-17K00-BQS
|
$27.88 | ||
|
Available to order. Add to View Price |
|||
|
#8-2
(WHITE/GRAY)
68680-17K00-BQS
|
$27.88 | ||
|
Unavailable |
|||
|
#9
.CUSHION,SIDE REAR,R NO.1
94477-17K00
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#10-1
COWLING, SIDE REAR LH (BLACK)
94460-17K10-YVB
|
$251.15 | ||
|
Available to order. Add to View Price |
|||
|
#10-2
COWLING, SIDE REAR LH (WHITE)
94460-17K10-YWW
|
$246.51 | ||
|
Available to order. Add to View Price |
|||
|
#11-1
.TAPE, SIDE COWLING REAR LH
68690-17K00-KGL
|
$23.30 | ||
|
Available to order. Add to View Price |
|||
|
#11-1
(BLACK)
68690-17K00-KGL
|
$23.30 | ||
|
Unavailable |
|||
|
#11-2
.TAPE, SIDE COWLING REAR LH
68690-17K00-BQS
|
$27.88 | ||
|
Available to order. Add to View Price |
|||
|
#11-2
(WHITE/GRAY)
68690-17K00-BQS
|
$27.88 | ||
|
Unavailable |
|||
|
#12
.CUSHION,SIDE REAR,L NO.1
94487-17K00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION,SIDE REAR,R NO.3
94477-17K20
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,UNDER COWL,L
94520-17K00
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,UNDER COWL,R
94540-17K00
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW (5X13)
09139-05091
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW (6X20)
09139-06206
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET,SIDE COWL,R
94530-17K00
|
$30.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
.CUSHION,UNDER COWL,R
94478-14J00
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
