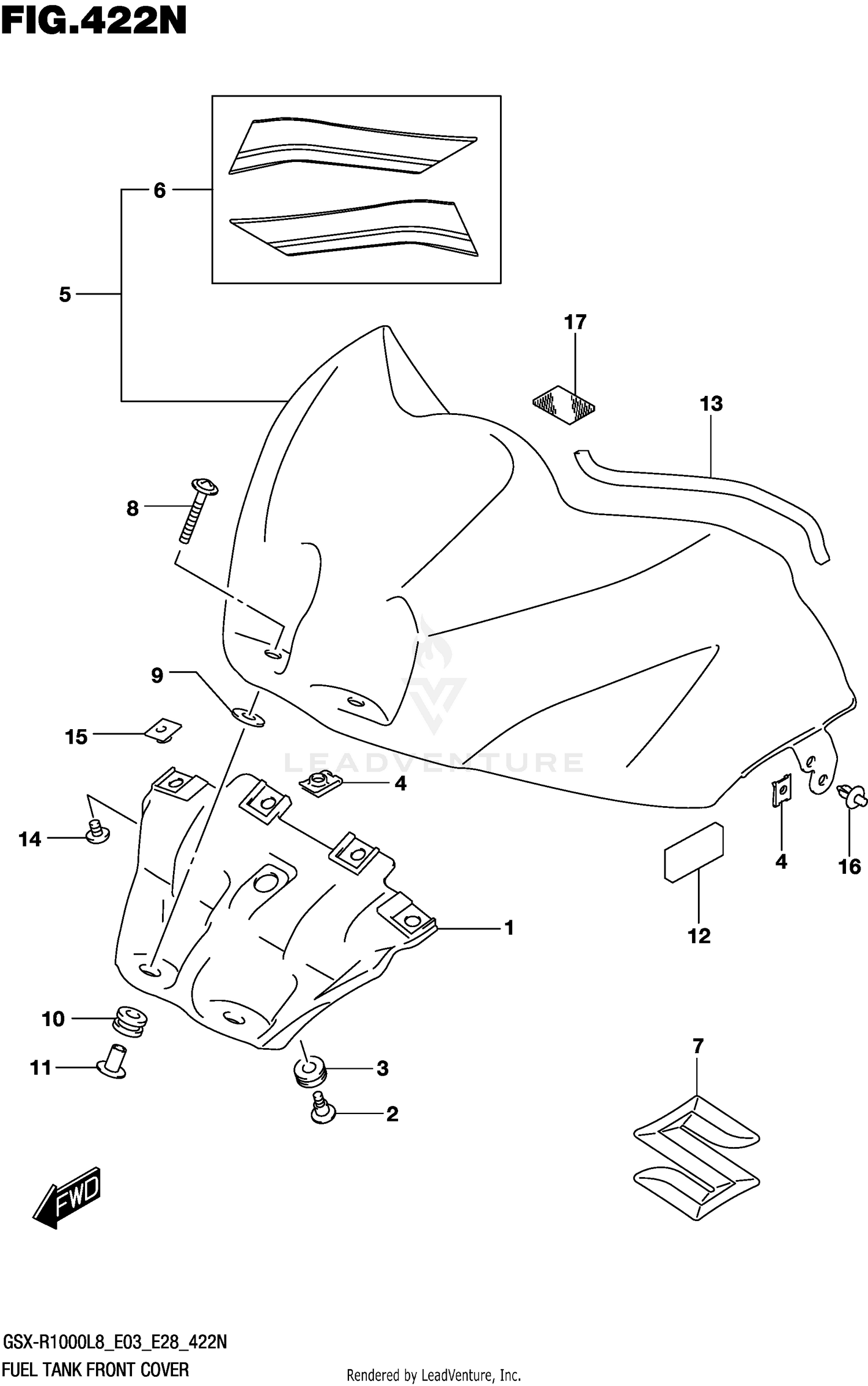

Fuel Tank Front Cover (gsx-r1000rzl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,FUEL TANK FRONT
44521-17K00
|
$96.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (5X16.4)
09139-05078
|
$4.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
COVER COMP,FUEL
44290-17KA0-YVB
Superseded by 44290-17KA1-YVB
|
$268.17 | ||
|
Unavailable |
|||
|
#5-2
COVER COMP,FUEL
44290-17KA0-YWW
Superseded by 44290-17KA1-YWW
|
$253.16 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
.TAPE SET, FUEL TANK COVER
68120-17K00-BQM
|
$43.83 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
.TAPE SET, FUEL TANK COVER
68120-17K00-BQL
|
$43.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM,S
68111-47HA0
|
$52.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW (6X40)
09139-06210
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (10X22X13)
09320-10050
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, FUEL TANK FRONT
44512-17K00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, FUEL TANK COVER
33652-20C00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,FUEL TANK COVER (L:38
44277-17K00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X10)
09139-06181
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
44523-47H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
FASTENER, COVER
44572-44G00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
