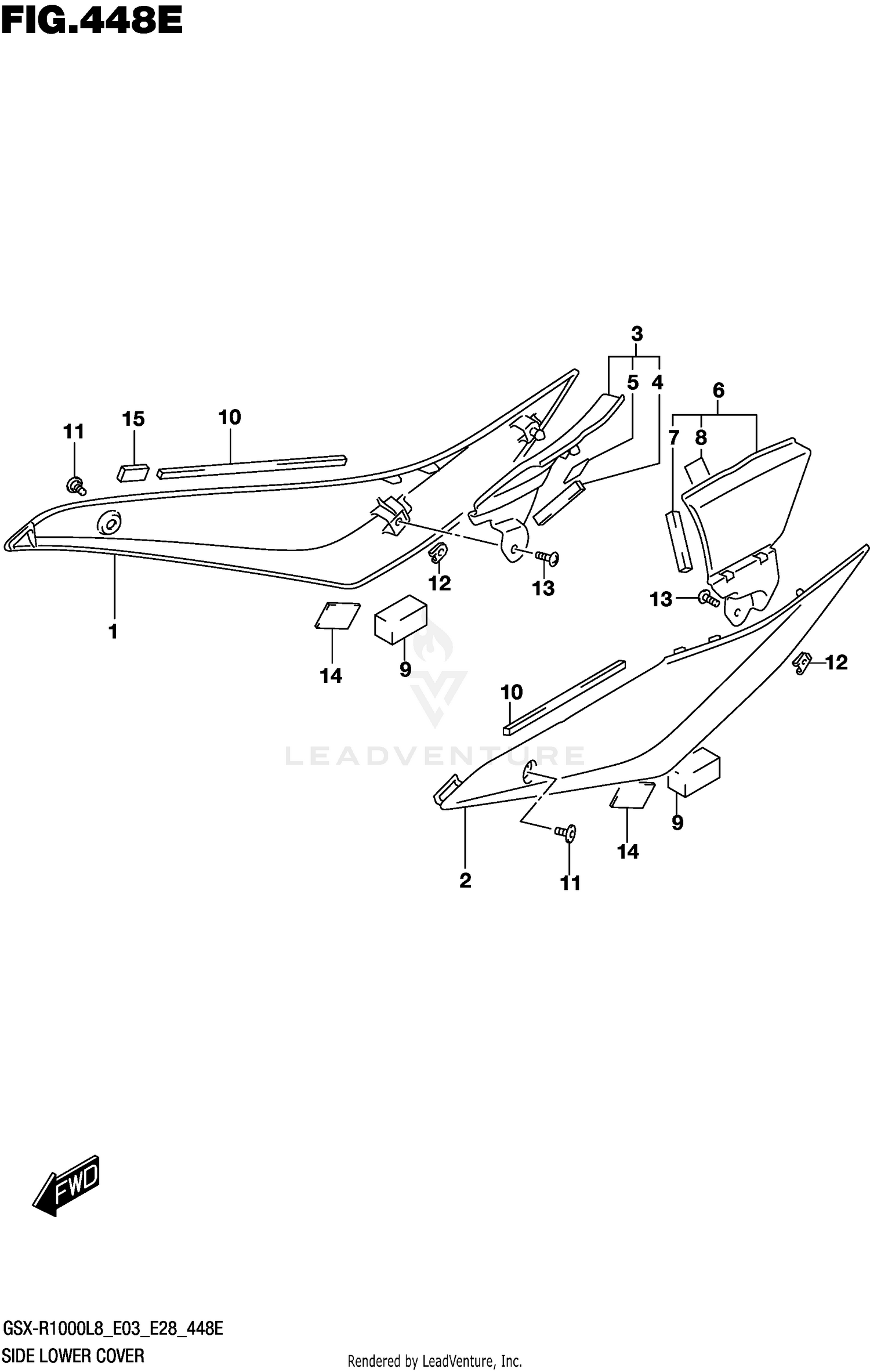

Side Lower Cover (gsx-r1000al8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME FRONT,R
47511-17K00
Superseded by 47511-17K01
|
$44.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,FRAME FRONT,L
47611-17K00
Superseded by 47611-17K01
|
$45.77 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
COVER, FRAME FRONT NO.2 RH
47710-17K00-YKV
|
$92.16 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
(BLACK)
47710-17K00-YKV
|
$92.16 | ||
|
Unavailable |
|||
|
#3-2
COVER, FRAME FRONT NO.2 RH
47710-17K00-YWW
|
$92.60 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
(WHITE)
47710-17K00-YWW
|
$92.60 | ||
|
Unavailable |
|||
|
#4
CUSHION, REAR COVER NO.2
47122-17K00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION (20X20X1)
47123-17K00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
COVER, FRAME FRONT NO.2 LH
47810-17K00-YKV
|
$92.60 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
(BLACK)
47810-17K00-YKV
|
$92.60 | ||
|
Unavailable |
|||
|
#6-2
COVER, FRAME FRONT NO.2 LH
47810-17K00-YWW
|
$92.60 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
(WHITE)
47810-17K00-YWW
|
$92.60 | ||
|
Unavailable |
|||
|
#7
CUSHION, REAR COVER NO.2
47122-17K00
|
$2.44 | ||
|
Unavailable |
|||
|
#8
.CUSHION (20X20X1)
47123-17K00
|
$5.53 | ||
|
Unavailable |
|||
|
#9
CUSHION,REAR COMB (20X40X20)
33652-38F20
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FRAME COVER UPPER (L:
47121-17K00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (5X13)
09139-05092
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT (M5)
09148-05045
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, REAR COMB
33652-47F00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
