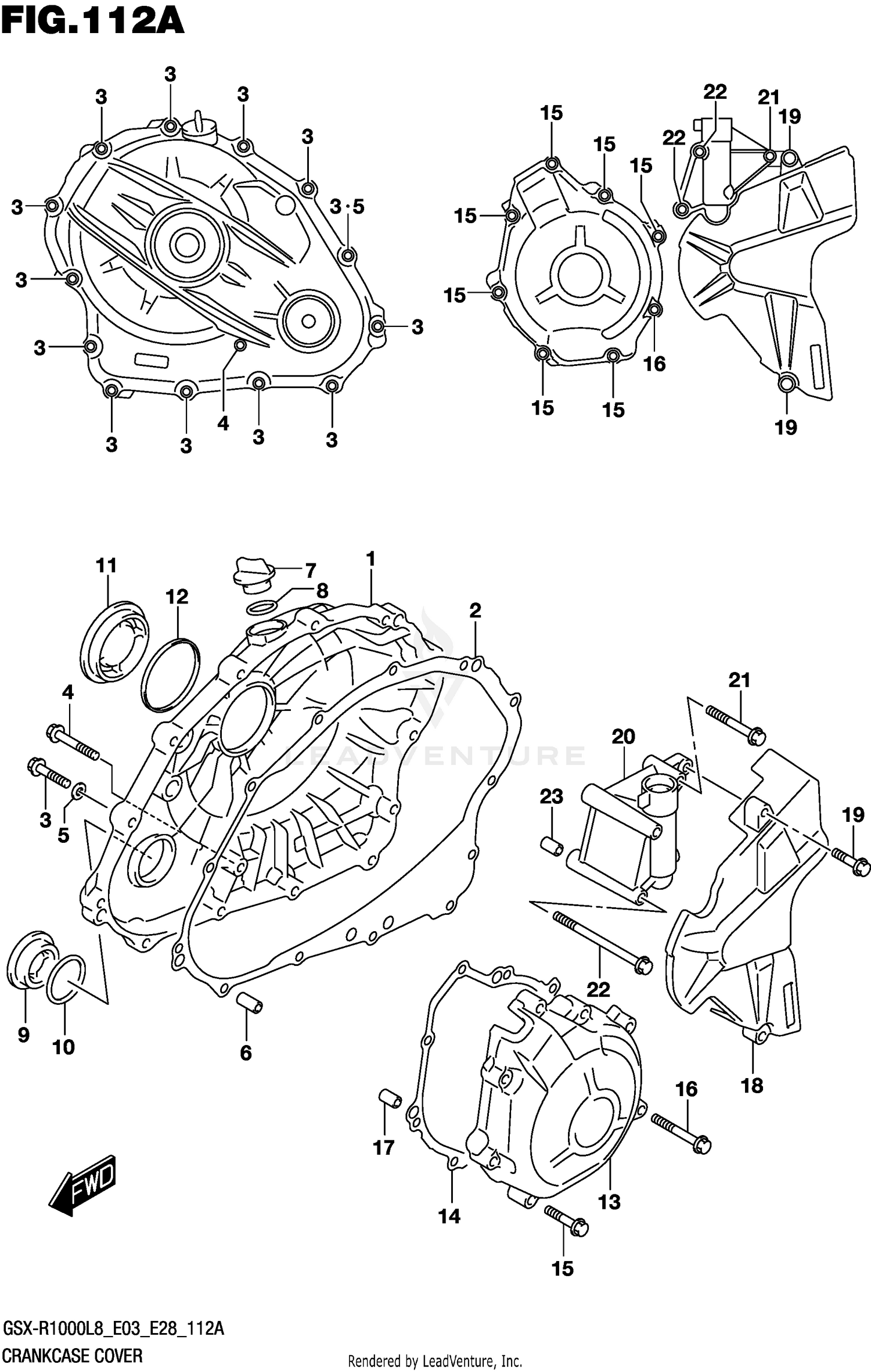

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,CLUTCH
11341-17K00
|
$340.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CLUTCH COVER
11482-17K00
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X30)
09103-06213
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X40)
09103-06215
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PLUG
09259-36021
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
09280-33004
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP,CLUTCH RELEASE ADJUST
11342-41G10
|
$32.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING
31156-17E00
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,MAGNETO
11351-17K01
|
$176.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MAGNETO COVER
11483-17K00
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X30)
09103-06213
|
$2.95 | ||
|
Unavailable |
|||
|
#16
BOLT (6X45)
09103-06224
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,ENG SPROCKET
11360-17K00
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-0625B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER,CLUTCH RELEASE
11371-17K00
|
$142.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01547-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
.BOLT
01547-0690A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
