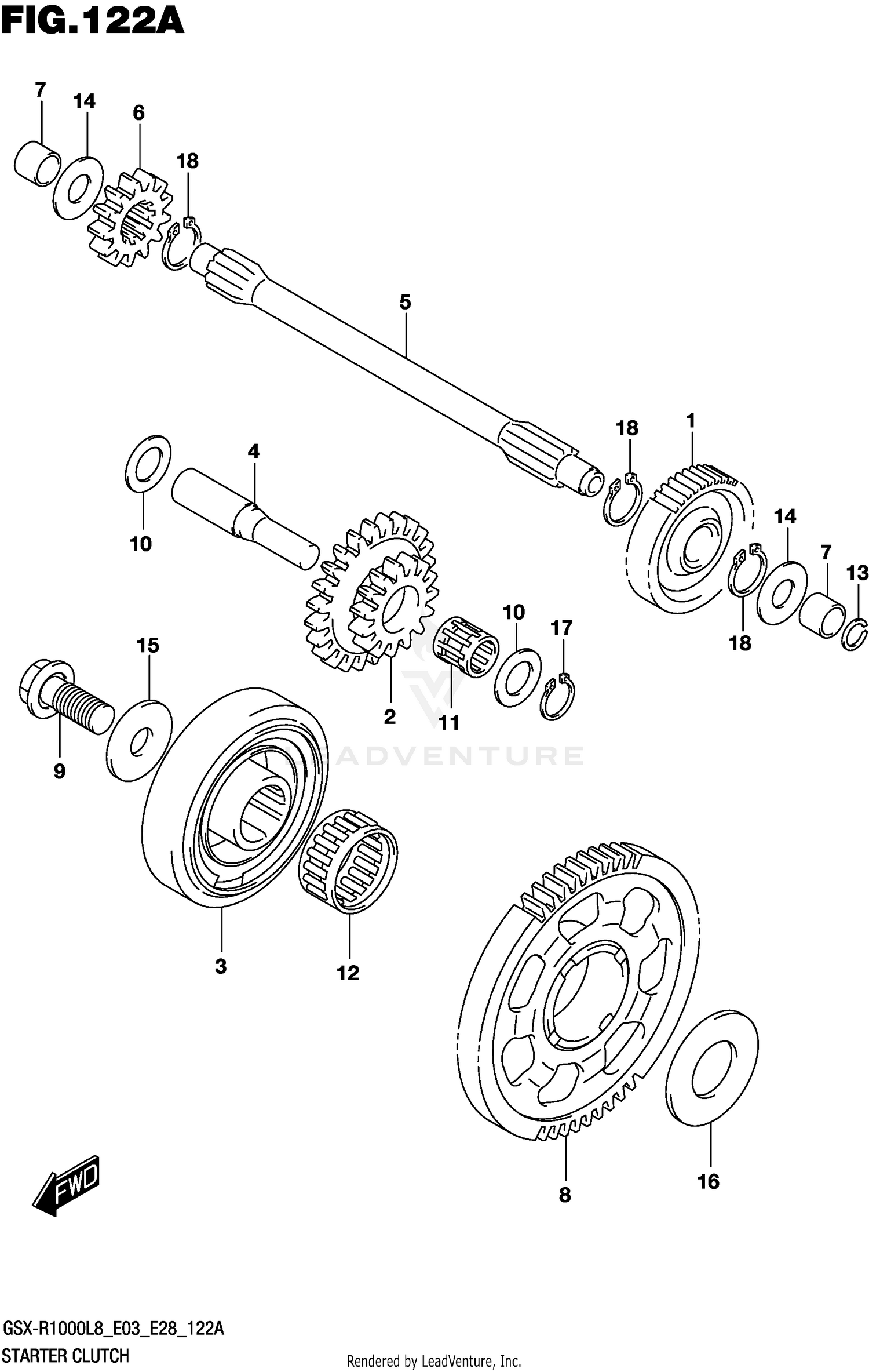

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, STARTER IDLE NO.1
12611-17K00
|
$77.93 | ||
|
Available to order. Add to View Price |
|||
|
#1
(NT:45)
12611-17K00
|
$77.93 | ||
|
Unavailable |
|||
|
#2
GEAR, STARTER IDLE NO.2
12612-47H00
|
$115.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
(NT:15/24)
12612-47H00
|
$115.31 | ||
|
Unavailable |
|||
|
#3
CLUTCH,STARTER ONE WAY
12614-17K00
|
$302.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN,STARTER IDLE GEAR NO.2
12615-17K00
|
$24.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT,STARTER IDLE GEAR NO.1
12616-17K00
|
$98.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, LIMITER DRIVEN (NT:13)
12617-47H00
|
$58.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, LIMITER GEAR SHAFT
12618-31G00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR,STARTER CLUTCH (NT:49)
12622-17K00
|
$143.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (10X23)
09103-10189
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM (12X20X1)
09181-12167
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (12X16X16)
09263-12023
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (26X31X16)
09263-26035
|
$77.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
09380-09003
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08211-10221
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08211-10285
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-20403
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP
08331-3115A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
