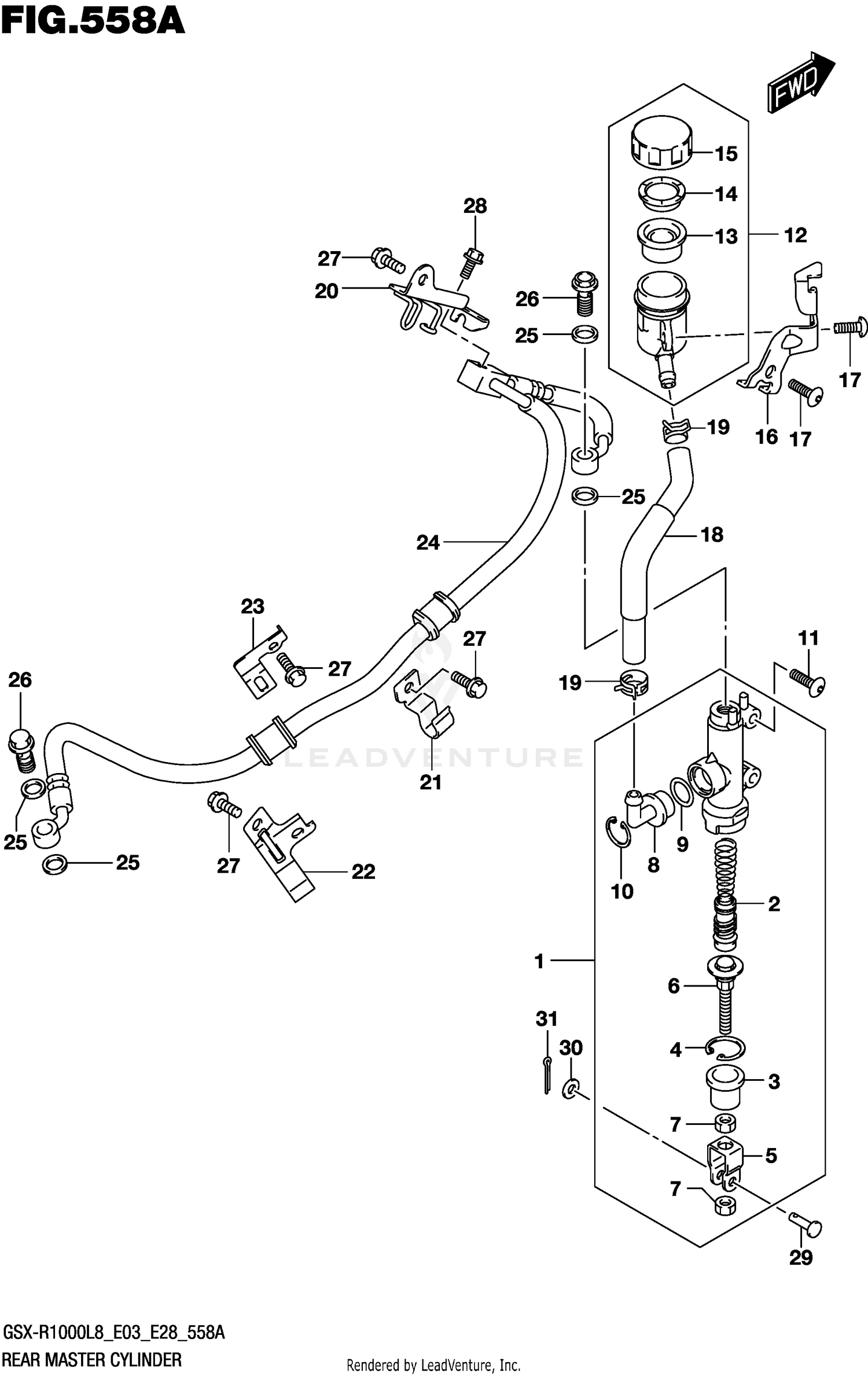

Rear Master Cylinder (gsx-r1000l8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-47H30
Superseded by 69600-47H31
|
$247.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON / CAP SET
69600-34810
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
..CIRCLIP
69665-47H00
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
.YOKE
69692-47H00
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
.ROD, PUSH
69670-40A00
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
.NUT
69693-47H00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CONNECTOR
69672-00B20
|
$9.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.CIRCLIP
69674-00B20
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09139-06208
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK ASSY,REAR RESERVOIR
69740-17K00
|
$35.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
.DIAPHRAGM
59667-33J00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLATE
59668-33J00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CAP
69669-17K00
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,RR RESERVOIR TANK
69750-17K00
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X16)
09139-06139
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,RR RESERVOIR TANK
69730-17K00
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP (ID:11.1)
09401-12404
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP,RR BRAKE HOSE
69260-17K00
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,RR BRAKE HOSE
69268-17K00
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP,RR BRAKE HOSE
69270-17K00
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP,RR BRAKE HOSE
69272-17K00
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, REAR BRAKE
69480-17K00
|
$127.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
UNION
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
01547-0612A
|
$2.53 | ||
|
Unavailable |
|||
|
#29
PIN (6X18.2)
09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
COTTER PIN
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
