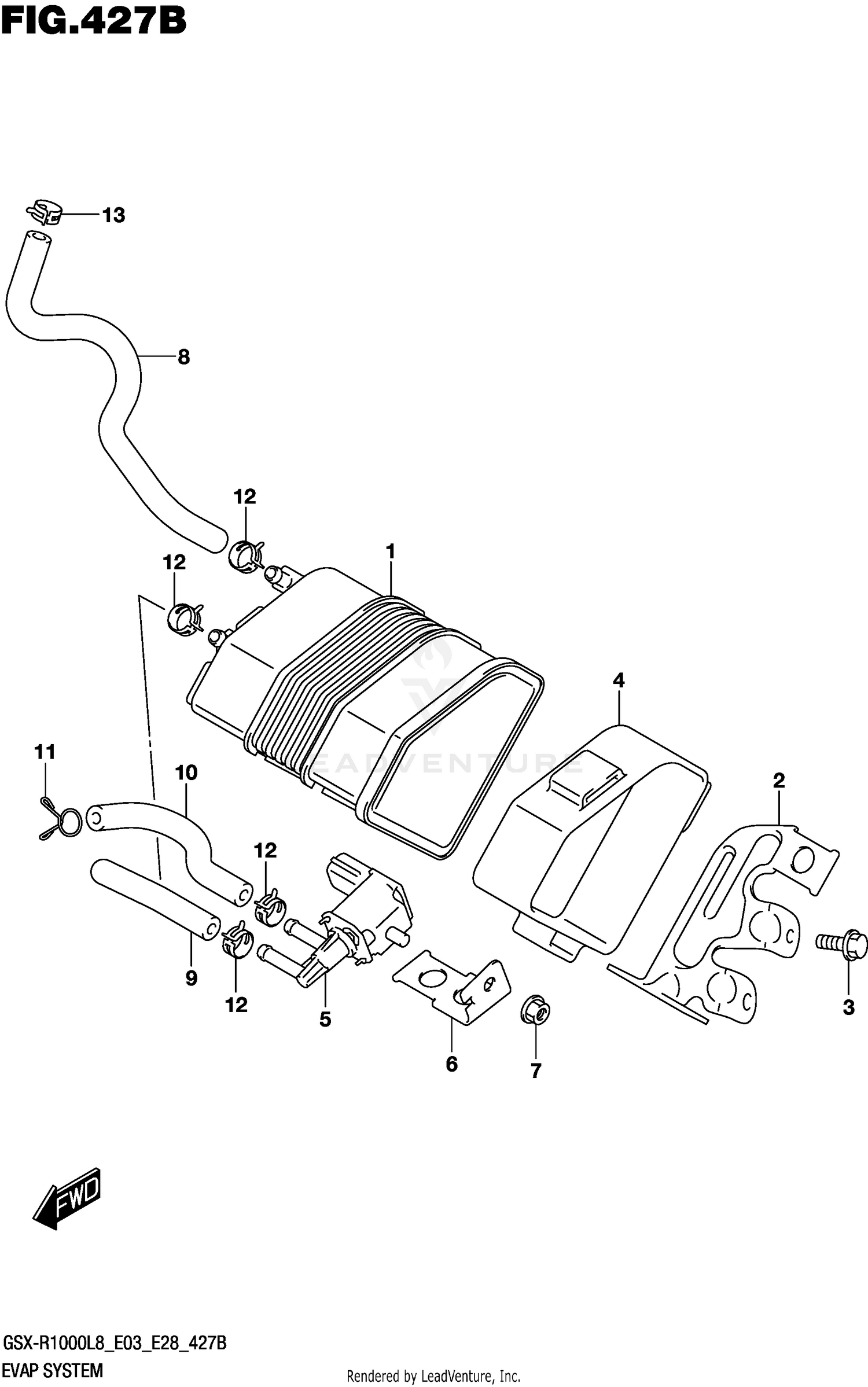

Evap System (gsx-r1000al8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CANISTER ASSY,CHARCOAL
18560-04K00
Superseded by 18560-04K01
|
$120.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET,CANISTER
18571-17K00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION,CANISTER
18572-17K00
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, CANISTER PURGE
18117-52G10
|
$168.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,PURGE VALVE
18573-17K00
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HOSE,SURGE
18561-17K00
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE,PURGE NO.1
18562-17K00
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE,PURGE NO.2
18563-17K00
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09401-10201-XC0
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
09401-10409
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP (ID:11)
09401-11413
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
