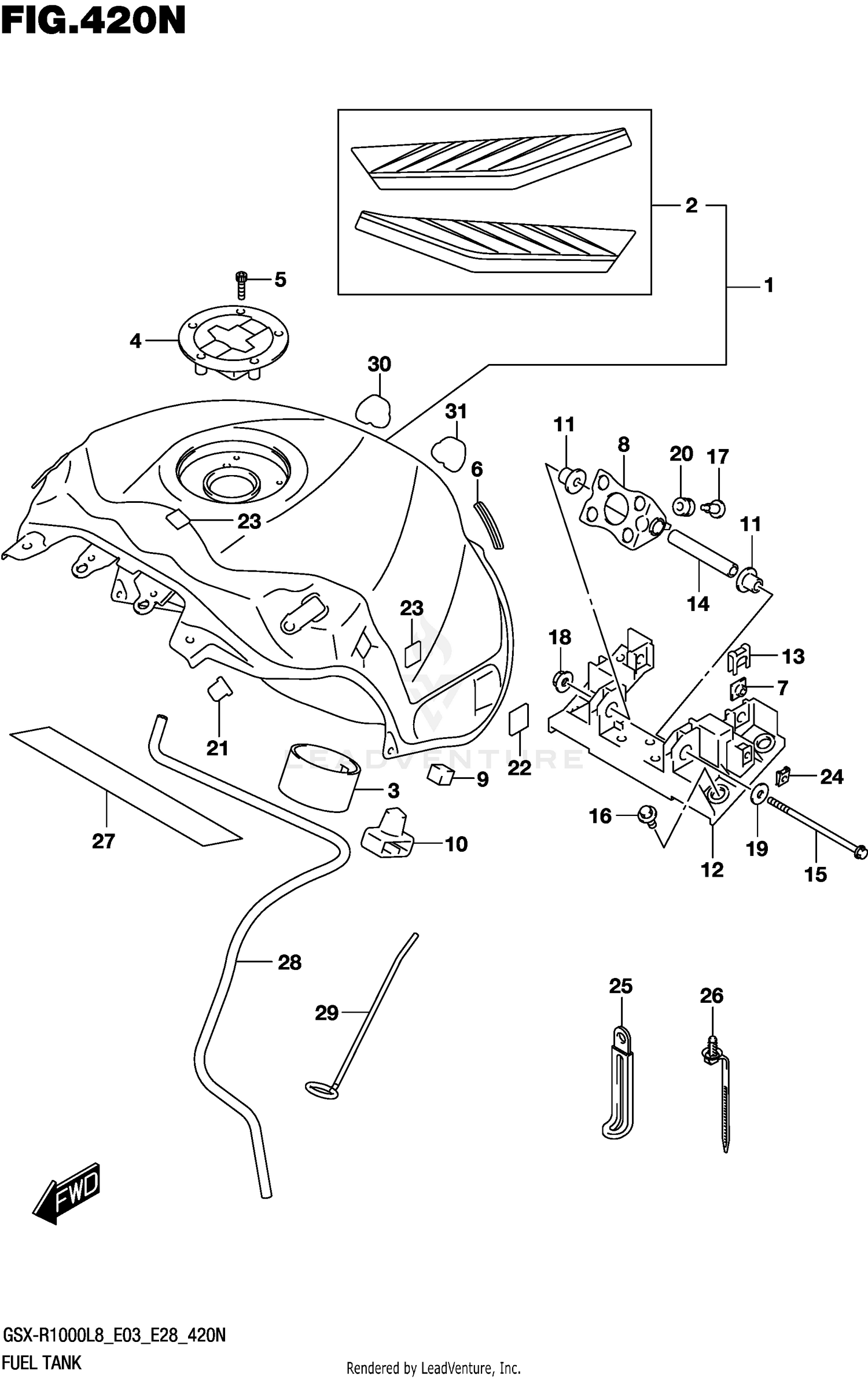

Fuel Tank (gsx-r1000rzl8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY, FUEL (BLACK)
44100-17KA0-YVB
|
$1,134.94 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
TANK ASSY, FUEL (WHITE)
44100-17KA0-YWW
|
$1,134.94 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.TAPE SET, FUEL TANK
68110-17K00-BQM
|
$47.15 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
.TAPE SET, FUEL TANK
68110-17K00-BQL
|
$56.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
VESSEL,FUEL TANK INNER
44121-17K00
Superseded by 44121-17K01
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET, FUEL TANK
44200-17820
|
$242.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FUEL TANK FILLER CAP
44244-11J00
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOLDING, FUEL TANK REAR
44552-24B10
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
44523-47H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,FUEL TANK NO.1
44530-17K00
|
$32.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK SIDE
44541-17K00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK REAR
44542-17K00
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,FUEL TANK REAR BRKT
44544-17K00
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,FUEL TANK REAR
44551-17K00
|
$70.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP,NUT
44552-17K00
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X125)
09103-06033
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X18)
09111-06081
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X22)
09139-06191
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (M6)
09159-06086
|
$2.12 | ||
|
Unavailable |
|||
|
#19
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION,FUEL TANK COVER
44543-17K00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
FASTENER, FUEL TANK COVER
44572-44G00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#27
PROTECTOR,FUEL TANK
44283-17K00
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, DRAIN
44423-17K01
|
$19.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
STAY,FUEL TANK
44574-17K00
|
$39.52 | ||
|
Available to order. Add to View Price |
|||
|
#30
PROTECTOR,FUEL TANK NO.2,R
44285-17K00
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
|
#31
PROTECTOR,FUEL TANK NO.2,L
44286-17K00
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
