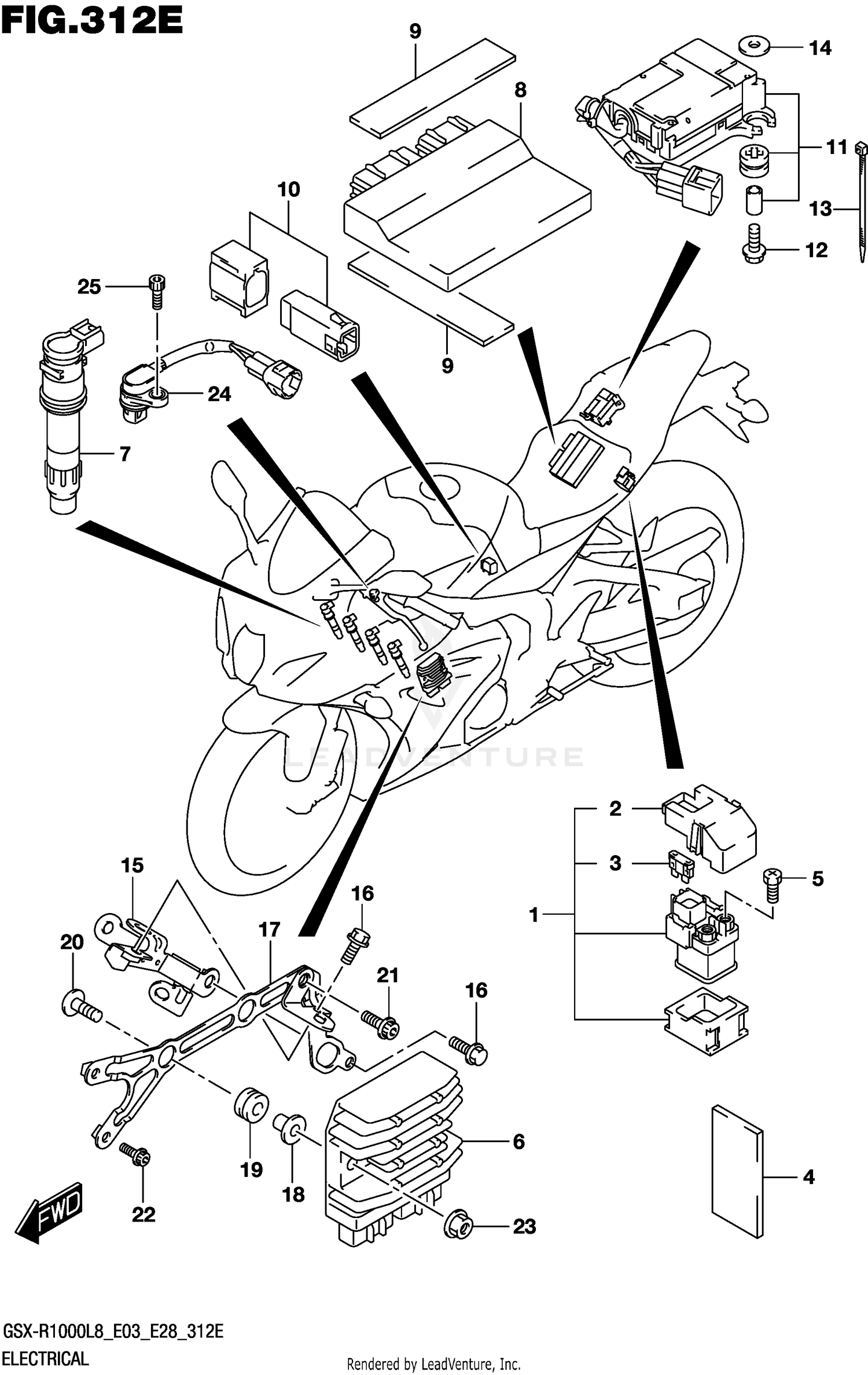

Electrical (gsx-r1000al8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-21E20
Superseded by 31800-21E30
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR (30X60X3)
36920-08D00
|
$2.03 | ||
|
Unavailable |
|||
|
#5
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSY
32800-26J01
Superseded by 32800-26J02
|
$283.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY,IGNITION
33410-17K00
Superseded by 33410-17K01
|
$203.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONTROL UNIT,F
32920-17K41
Superseded by 32920-17K42
|
$1,526.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
ACTUATOR ASSY
33970-47H01
Superseded by 33970-47H03
|
$465.80 | ||
|
Unavailable |
|||
|
#12
BOLT (6X23)
09103-06066
|
$1.54 | ||
|
Unavailable |
|||
|
#13
CLAMP (L:100)
09407-10404
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET,HARNESS
36670-17K00
|
$34.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, RECT FTG
32830-17K00
|
$63.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.2X8.4X10.9)
09180-06331
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION
09320-08501
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02142-0635A
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
07120-0620A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
07120-0630B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SENSOR ASSY,CAM POSITION
33220-01H00
Superseded by 33220-01H01
|
$138.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
