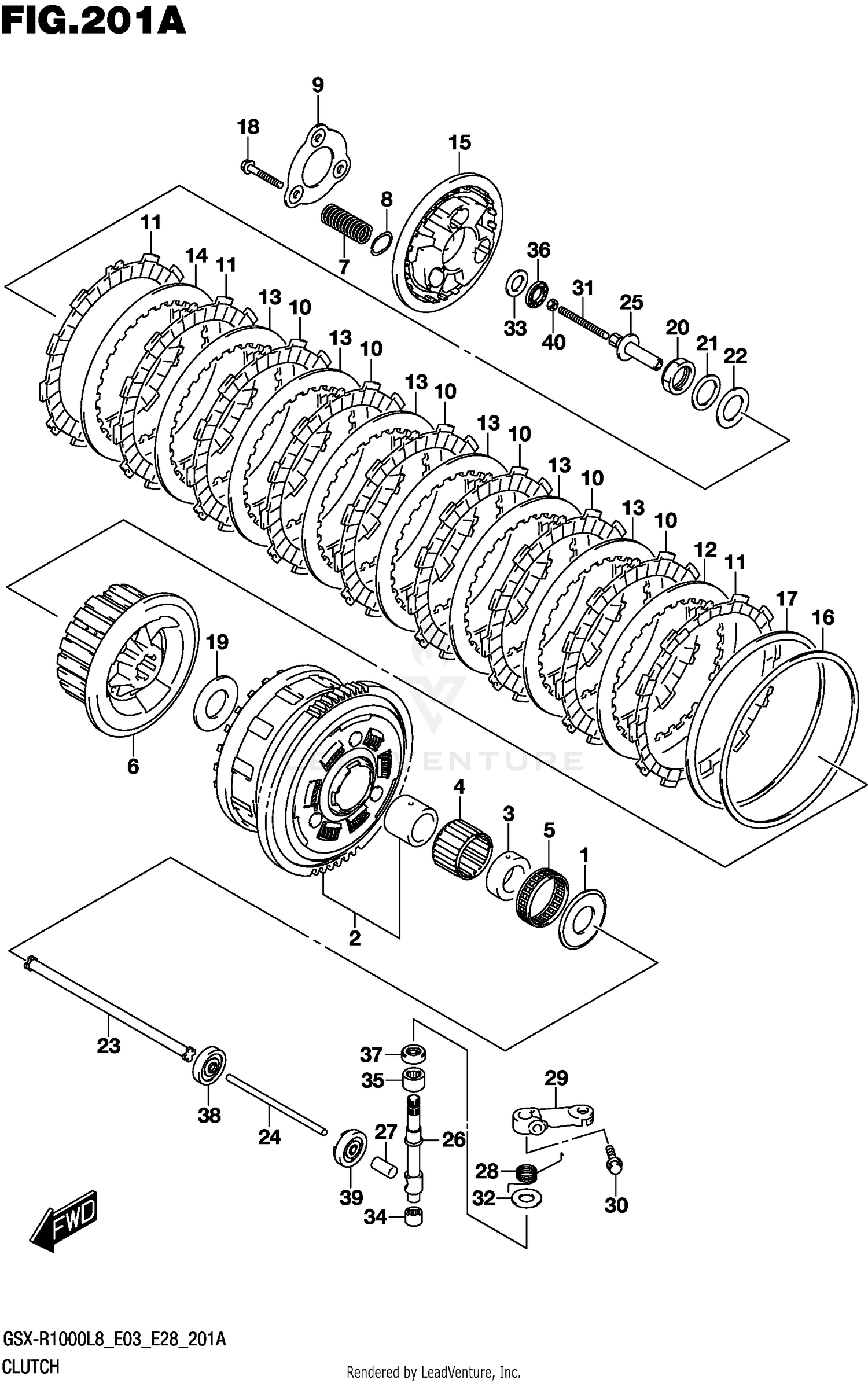

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER,PRI DRIVEN GEAR THR
21222-17K00
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR ASSY, PRIMARY DRIVEN
21200-17880
|
$439.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, OIL PUMP DRIVE
21253-01H10
|
$46.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET
21253-01H10
|
$46.80 | ||
|
Unavailable |
|||
|
#4
BEARING (35X40X26.8)
09263-35015
|
$30.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (35X40X12)
09263-35045
|
$25.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB,CLUTCH SLEEVE
21411-17K00
|
$181.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,CLUTCH
21413-17K00
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT,CLUTCH SPRING
21415-17K00
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,STOPPER
21414-17K00
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVE NO.1
21441-42F20
|
$37.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
(T:3.3)
21441-42F20
|
$37.26 | ||
|
Unavailable |
|||
|
#11
PLATE, CLUTCH DRIVE NO.2
21442-42F10
|
$37.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
(T:3.3)
21442-42F10
|
$37.44 | ||
|
Unavailable |
|||
|
#12
PLATE, CLUTCH DRIVEN NO.2
21451-47H10
|
$18.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
(T:2.3)
21451-47H10
|
$18.18 | ||
|
Unavailable |
|||
|
#13
PLATE, CLUTCH DRIVEN NO.1
21451-47H30
|
$19.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
(T:2.3)
21451-47H30
|
$19.72 | ||
|
Unavailable |
|||
|
#14
PLATE, CLUTCH DRIVEN NO.4
21451-47H50
|
$12.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
(T:2.6)
21451-47H50
|
$12.03 | ||
|
Unavailable |
|||
|
#15
DISC,CLUTCH PRESSURE
21462-17K00
|
$106.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT,WAVE WASHER
21471-02F20
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,CLUTCH PLATE WAVE
21472-02F20
|
$28.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,CLUTCH SPRING
21482-17K00
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (25X50X2.5)
09160-25056
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09159-24010
|
$16.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER
09164-24008
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM (25X38X1)
09181-25223
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, CLUTCH
23110-27A00
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROD,CLUTCH PUSH LH (L:132.5)
23111-26D00
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIECE, CLUTCH PUSH
23121-41G30
|
$64.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAMSHAFT,CLUTCH RELEASE
23122-41G00
|
$64.23 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, CLUTCH PUSH ROD
23123-41G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, CLUTCH RELEASE RETURN
23125-41G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
ARM,CLUTCH RELEASE
23271-41G50
|
$60.91 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (6X20)
09103-06223
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW (6X73)
09134-06015
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER (10.5X24X1)
09160-10020
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER (15.5X28X1)
09160-15045
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING (10X14X10)
09263-10014
|
$16.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BEARING (12X18X12)
09263-12027
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING (15X28X2)
09263-15003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL (10X20X6)
09282-10012
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAL,OIL
09283-06013
|
$16.50 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (10X17X5)
09285-10004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
