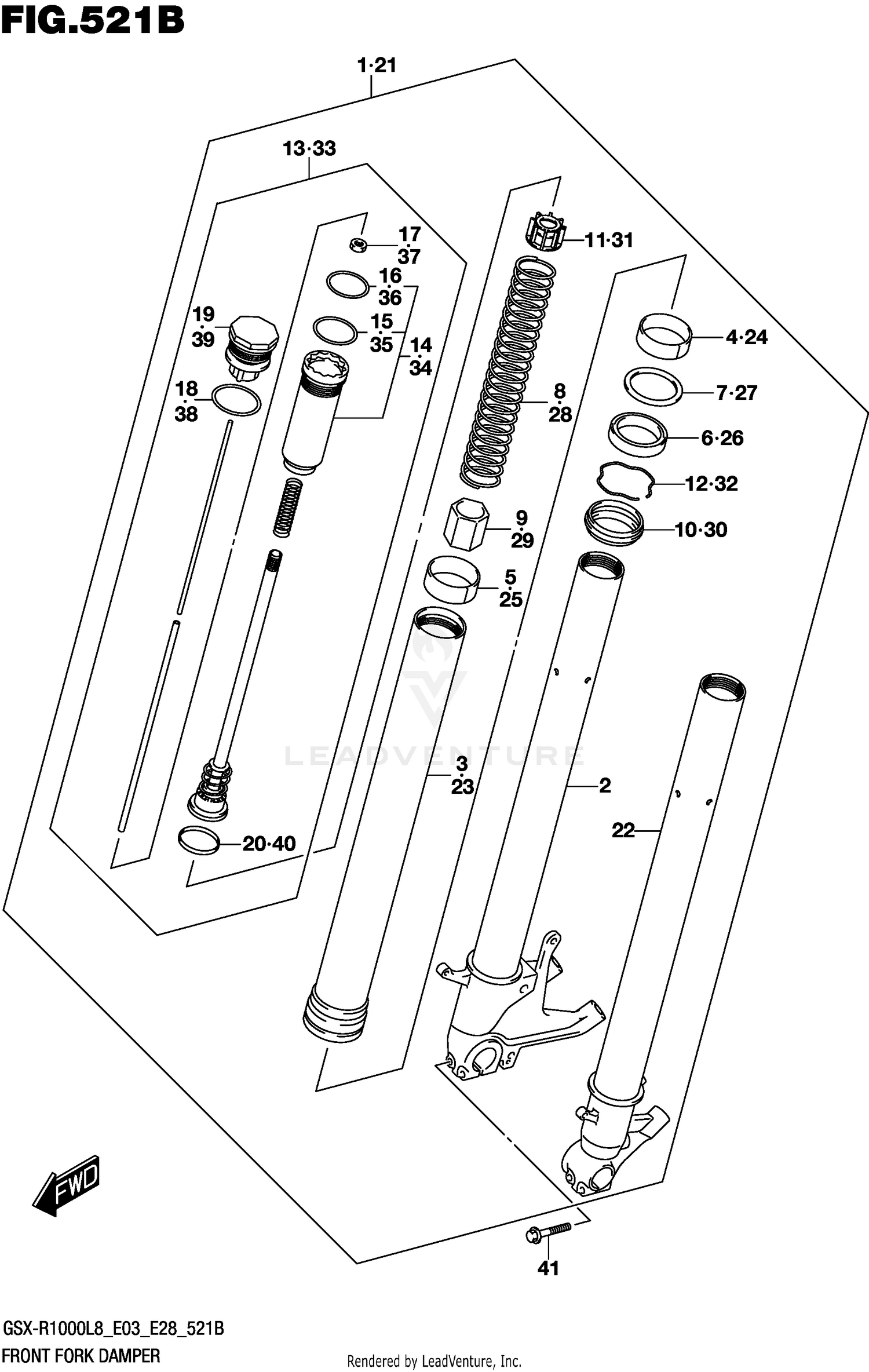

Front Fork Damper (gsx-r1000l8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR,R
51103-17K00
Superseded by 51103-17K01
|
$1,370.80 | ||
|
Unavailable |
|||
|
#2
.TUBE,INNER,R
51110-17K00
|
$636.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
.TUBE,OUTER
51131-17K00
|
$552.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BUSH,GUIDE
51152-47H00
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BUSH, SLIDE
51152-47H10
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SEAL, OIL
51153-47H00
|
$34.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
.SPACER, SEAL
51168-29G00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPRING
51171-47H20
|
$156.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
.COLLAR, SPRING
51176-47H20
|
$73.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SEAL,DUST
51173-27G00
|
$34.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.COLLAR, SPRING
51175-47H00
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
.RING, STOPPER
51556-38B00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
.ROD,PISTON
52110-17K00
|
$415.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
..CASE,ROD GUIDE
51174-17K00
|
$126.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
...RING, PISTON
51118-47H00
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
...O RING
51187-47H10
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
..NUT
51827-29G00
|
$8.62 | ||
|
Unavailable |
|||
|
#18
.O-RING
51187-47H00
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
..BOLT
51189-17K00
|
$159.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
..RING, PISTON
51118-47H20
|
$14.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER ASSY,FR,L
51104-17K00
Superseded by 51104-17K01
|
$1,646.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
.TUBE,INNER,L
51120-17K00
|
$636.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
.TUBE,OUTER
51131-17K00
|
$552.18 | ||
|
Unavailable |
|||
|
#24
.BUSH,GUIDE
51152-47H00
|
$18.34 | ||
|
Unavailable |
|||
|
#25
.BUSH, SLIDE
51152-47H10
|
$19.61 | ||
|
Unavailable |
|||
|
#26
.SEAL, OIL
51153-47H00
|
$34.74 | ||
|
Unavailable |
|||
|
#27
.SPACER, SEAL
51168-29G00
|
$8.65 | ||
|
Unavailable |
|||
|
#28
.SPRING
51171-47H20
|
$156.73 | ||
|
Unavailable |
|||
|
#29
.COLLAR, SPRING
51176-47H20
|
$73.82 | ||
|
Unavailable |
|||
|
#30
.SEAL,DUST
51173-27G00
|
$34.32 | ||
|
Unavailable |
|||
|
#31
.COLLAR, SPRING
51175-47H00
|
$14.13 | ||
|
Unavailable |
|||
|
#32
.RING, STOPPER
51556-38B00
|
$9.32 | ||
|
Unavailable |
|||
|
#33
.ROD,PISTON
52110-17K00
|
$415.25 | ||
|
Unavailable |
|||
|
#34
..CASE,ROD GUIDE
51174-17K00
|
$126.23 | ||
|
Unavailable |
|||
|
#35
...RING, PISTON
51118-47H00
|
$26.88 | ||
|
Unavailable |
|||
|
#36
...O RING
51187-47H10
|
$9.38 | ||
|
Unavailable |
|||
|
#37
..NUT
51827-29G00
|
$8.62 | ||
|
Unavailable |
|||
|
#38
.O-RING
51187-47H00
|
$9.20 | ||
|
Unavailable |
|||
|
#39
..BOLT
51189-17K00
|
$159.93 | ||
|
Unavailable |
|||
|
#40
..RING, PISTON
51118-47H20
|
$14.56 | ||
|
Unavailable |
|||
|
#41
BOLT
51321-36F00
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
