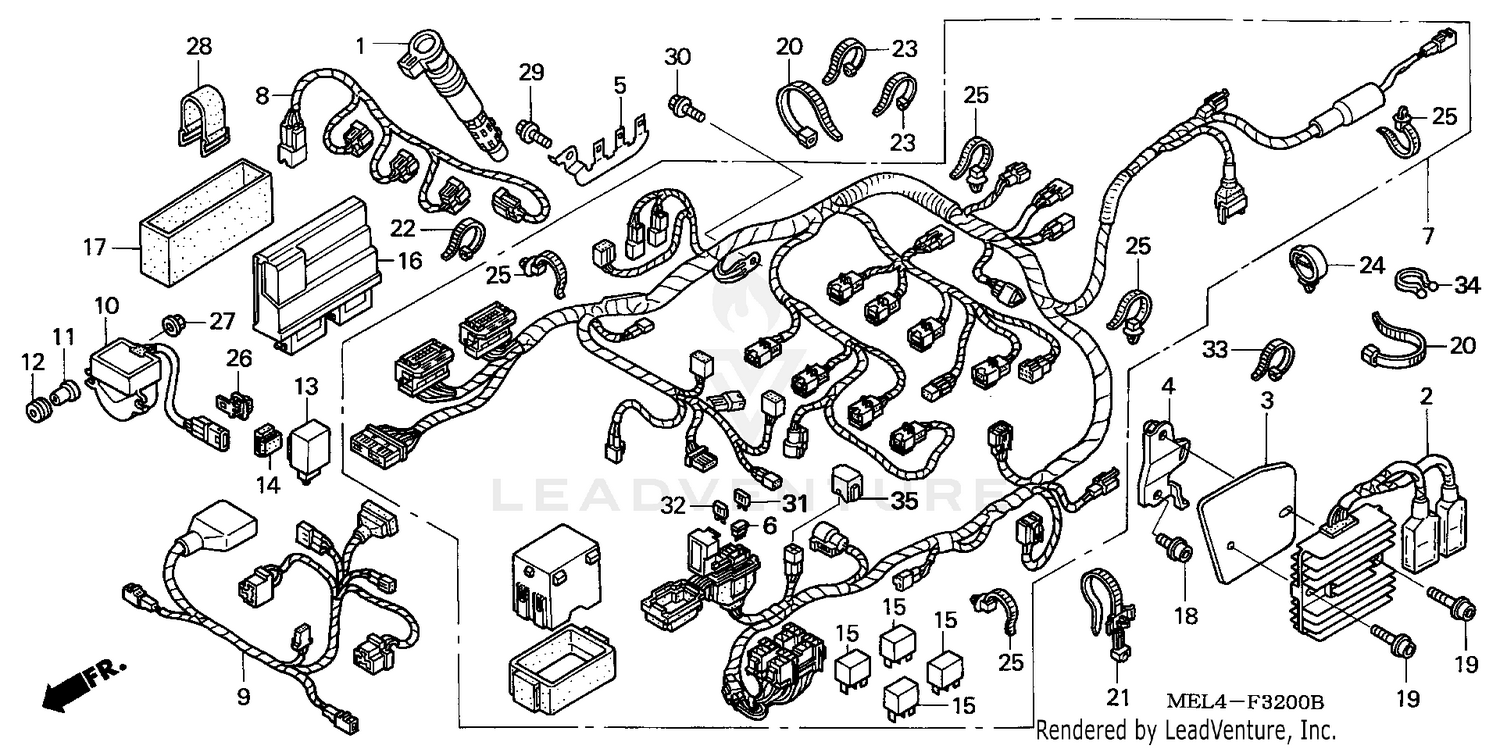

Wire Harness (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, CAP & IGNITION
30700-MEL-003
|
$94.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
RECTIFIER ASSY., REGULATE
31600-MEL-013
|
$276.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, REGULATOR RECTIFIER
31605-MEL-D00
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, REGULATE RECTIFIER
31606-MEL-020
|
$6.68 | ||
|
Unavailable |
|||
|
#5
STAY, R. CONNECTOR
31607-MEL-010
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-MEL-A00
|
$761.70 | ||
|
Unavailable |
|||
|
#8
SUB-HARNESS, IGNITION
32102-MEL-000
|
$69.47 | ||
|
Unavailable |
|||
|
#9
SUB-HARNESS, FR.
32103-MEL-A00
|
$77.74 | ||
|
Unavailable |
|||
|
#10
SENSOR, BANK ANGLE
35161-MEL-003
Superseded by 35161-MEL-013
|
$151.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
35162-MN5-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
35163-MN5-003
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY, TURN SIGNAL (DENSO)
38301-MBW-D21
|
$56.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUSPENSION, TURN SIGNAL RELAY
38306-GE7-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#16
PGM-FI UNIT
38770-MEL-672
|
$1,126.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, PGM-FI UNIT
38776-MEL-000
|
$7.45 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE SOCKET (6X12)
90009-MF5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE SOCKET (6X22)
90091-MM5-640
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, WIRE HARNESS
90620-SB2-003
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, WIRE HARNESS (150MM) (NATURAL)
90649-SC2-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, WIRE (95MM)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, WIRE HARNESS
90681-763-A01
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, HARNESS BAND (145MM) (BLACK)
91541-S0A-003
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND A, BATTERY
95012-11001
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND (BLACK 3.5X140)
35701-MG9-950
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP, DUMMY (4P) (RED)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
