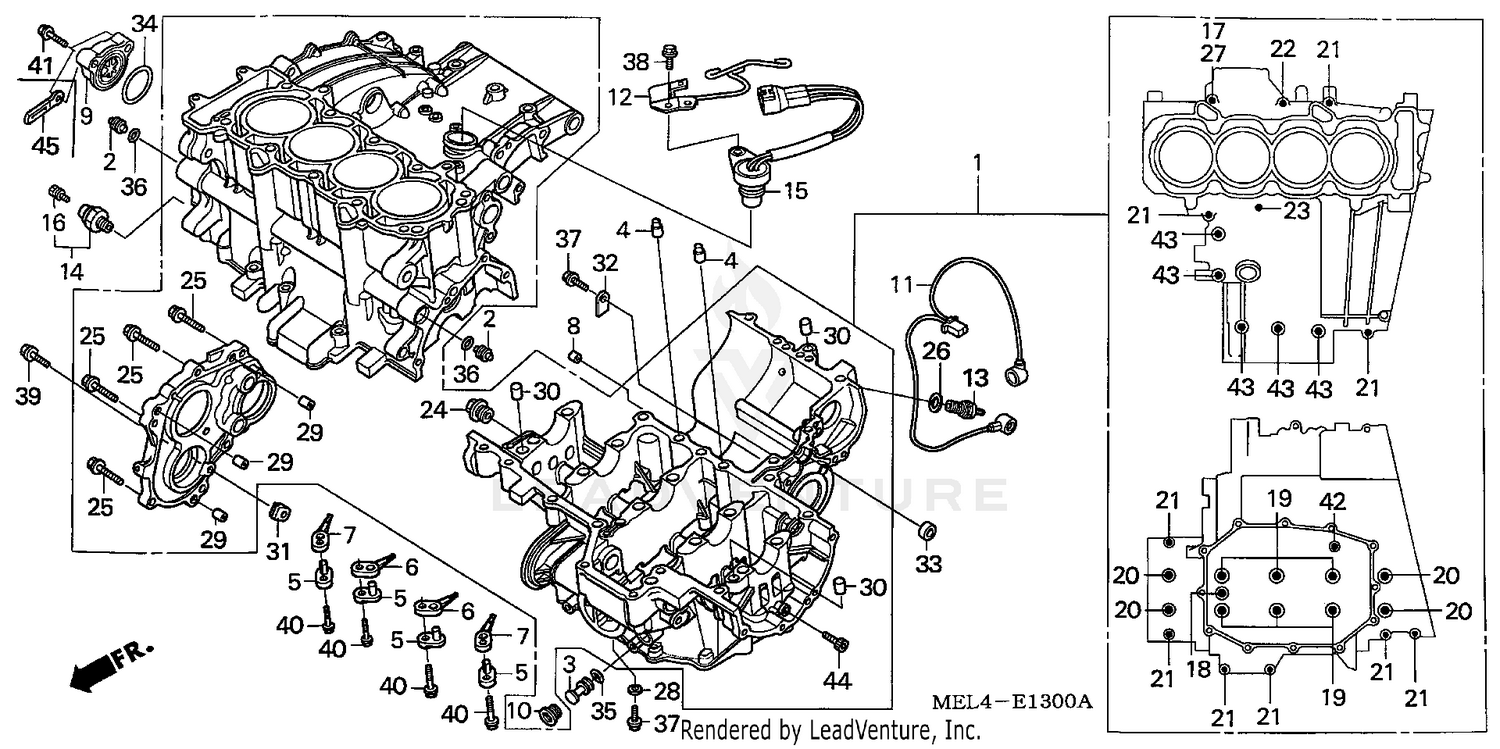

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MEL-010
Superseded by 11000-MEL-305
|
$3,375.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE SET
11000-MEL-305
|
$3,375.87 | ||
|
Unavailable |
|||
|
#2
PLUG, SEALING
11103-MEL-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, OIL COOLER
11104-MEL-000
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
ORIFICE (1.6MM)
11105-MEL-000
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, ORIFICE
11145-MEL-000
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
ORIFICE A (#100)
11146-MEL-000
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
ORIFICE B (#100)
11147-MEL-000
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
ORIFICE (1.4MM)
11206-MEL-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
FINDER, OIL LEVEL
11360-MEE-000
|
$29.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SEALING (20MM)
12208-PR3-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUB-HARNESS, ENGINE
32101-MEL-000
|
$14.68 | ||
|
Unavailable |
|||
|
#12
BRACKET, CONNECTOR
32120-MEL-D00
|
$10.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY., NEUTRAL (TOYO)
35600-HA0-003
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH ASSY., OIL PRESSURE (DENSO)
37240-P13-013
|
$53.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY., SPEED
37700-MEL-000
|
$134.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (4X8) (DENSO)
90002-PA6-003
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL (7X42.5)
90004-MEL-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (10MM)
90008-MEL-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (9X105)
90015-MEL-003
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (9X125)
90016-MEL-003
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (7X40)
90017-MAT-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (7X60)
90017-MEL-000
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (7X80)
90018-MEL-000
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SEALING (22MM)
90048-MEL-000
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X30)
90133-MEL-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, DOWEL (8X14)
90701-MEL-000
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL (10X16)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE A, BEARING SETTING
91011-MEL-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE B, BEARING SETTING
91012-MEL-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL (8X16X7)
91202-MEL-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (32X1.7)
91301-MEE-003
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (11.8X2.4)
91302-ZE9-000
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#36
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (8X55)
95701-08055-00
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, SOCKET (8X12)
90010-MEL-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
