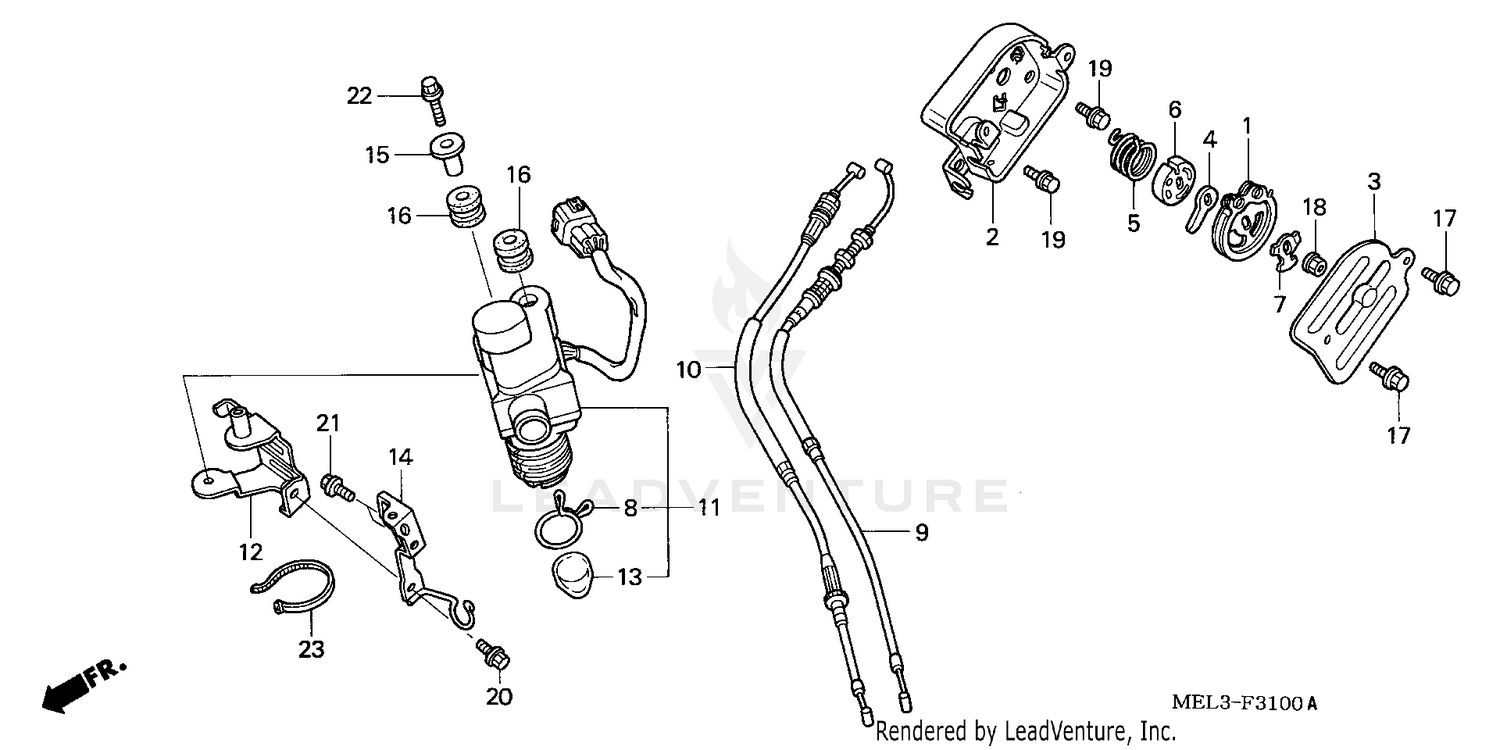

Servo Motor (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, VALVE CABLE
18180-MEL-000
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, VALVE GUIDE
18183-MEL-000
|
$28.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, VALVE GUIDE
18184-MEL-000
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, EX. VALVE
18185-MEL-000
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, RETURN
18186-MEL-000
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, SPRING
18189-MEL-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER B, LOCK
18195-MEL-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, AIR HOSE (21.5)
18532-634-670
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE A, EX. VALVE
18910-MEL-000
|
$42.08 | ||
|
Unavailable |
|||
|
#10
CABLE B, EX. VALVE
18920-MEL-000
|
$35.86 | ||
|
Unavailable |
|||
|
#11
MOTOR ASSY., SERVO
31420-MEL-000
|
$337.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY A, SERVO MOTOR
31421-MEL-000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
31425-KAE-004
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY B, SERVO MOTOR
31425-MEL-D00
|
$10.91 | ||
|
Unavailable |
|||
|
#15
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET, SEAT SETTING
77205-KM4-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (5X8)
90002-ZG3-000
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
94001-06020-0S
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X8)
96001-06008-02
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BAND (BLACK 3.5X140)
35701-MG9-950
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
