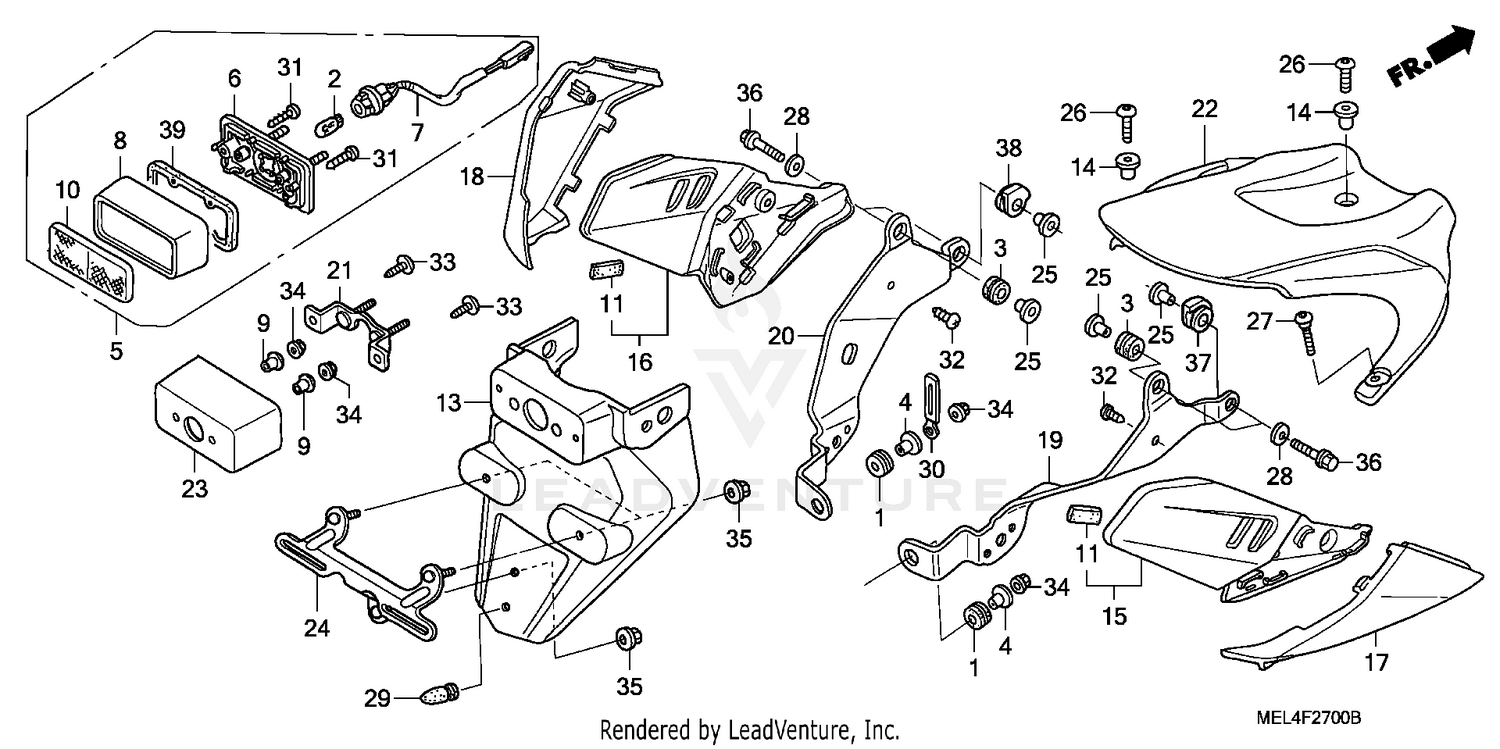

Rear Fender (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, AIR CLEANER HOUSING
17251-KE8-690
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RUBBER A, MOUNTING
80119-MEL-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, LICENSE LIGHT
80117-MEL-000
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
LIGHT ASSY., LICENSE
33720-MEL-000
|
$95.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BASE, LICENSE
33721-MEE-003
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET, LICENSE
33722-MEL-000
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, LICENSE
33723-MEE-003
|
$44.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, LICENSE LIGHT
33731-MK5-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLECTOR, REFLEX
33741-MZ7-003
|
$25.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, SUPPORT STAY SPACER
61703-HB3-300
|
$5.80 | ||
|
Unavailable |
|||
|
#13
FENDER A, RR.
80100-MEE-670
|
$29.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, FENDER SETTING
80103-MCJ-750
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, R. RR. HEAT
80103-MEL-000
|
$32.12 | ||
|
Unavailable |
|||
|
#16
GUARD, L. RR. HEAT
80104-MEL-000
|
$32.12 | ||
|
Unavailable |
|||
|
#17
COVER, R. FENDER A STAY
80105-MEE-000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, L. FENDER A STAY
80106-MEE-000
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY A, R. FENDER
80115-MEE-940
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY A, L. FENDER
80116-MEE-940
|
$20.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, LICENSE LIGHT BRACKET
80118-MEL-670
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
FENDER C, RR.
80120-MEL-000
|
$24.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, LICENSE LIGHT
80201-MEE-670
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, NUMBER PLATE
84700-MEE-670
|
$18.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR, CHAIN GUARD
52159-KB7-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X20)
90103-MBG-000
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (5X21)
90108-MAT-000
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
90525-428-900
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, CONE
90899-KL8-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SCREW, TAPPING (4X16)
93901-34410
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (5X12)
93903-25280
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, TAPPING (4X10)
93913-14120
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE (5MM)
94050-05000
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE (6MM)
94050-06070
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#37
RUBBER, R. FENDER SETTING (A)
80121-MEL-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
RUBBER, L. FENDER SETTING (A)
80122-MEL-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET, LENS
33729-MEE-003
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
