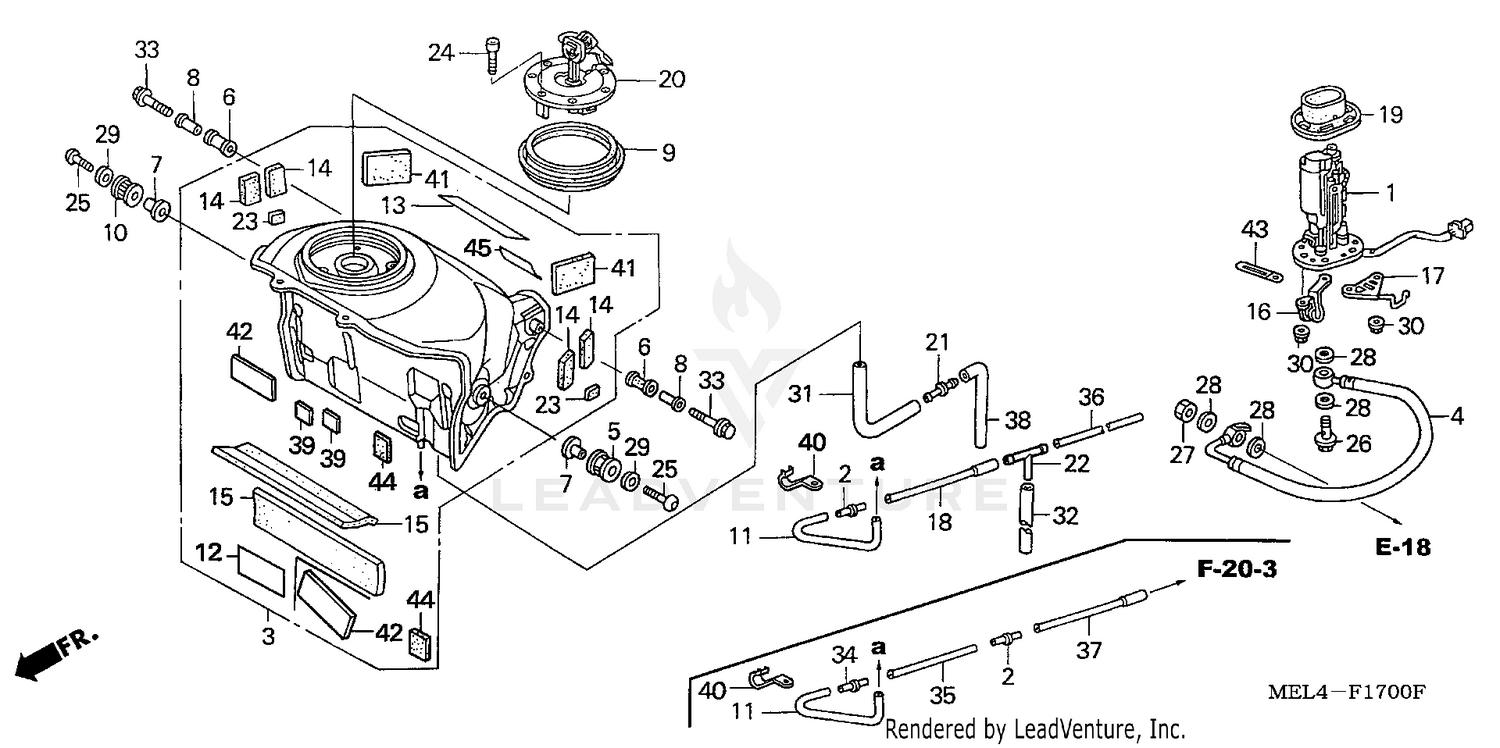

Fuel Tank + Fuel Pump (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL
16700-MEL-013
|
$692.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT (3.5) (TWO-WAY)
17414-PC6-660
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANK SET, FUEL
17520-MEL-D00
Superseded by 17520-MEL-D21
|
$1,286.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANK SET, FUEL
17520-MEL-D20
Superseded by 17520-MEL-D21
|
$1,286.16 | ||
|
Unavailable |
|||
|
#3
TANK SET, FUEL
17520-MEL-D21
|
$1,286.16 | ||
|
Unavailable |
|||
|
#4
HOSE A, FUEL FEED
17526-MEL-014
|
$103.07 | ||
|
Unavailable |
|||
|
#5
RUBBER, L. FR. TANK MOUNTING
17533-MEL-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, RR. TANK MOUNTING
17534-MEE-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. TANK SETTING
17535-MEL-010
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. TANK SETTING
17538-MEE-000
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, FUEL TANK
17543-MEE-000
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, R. FR. TANK MOUNTING
17545-MEL-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE A, FUEL TANK BREATHER
17555-MEL-000
|
$20.14 | ||
|
Unavailable |
|||
|
#13
FILM B, PROTECTOR
17557-MEL-300
|
$35.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION B, FUEL TANK
17601-MEL-300
|
$2.50 | ||
|
Unavailable |
|||
|
#15
MAT, FUEL TANK
17559-MEL-D00
|
$4.25 | ||
|
Unavailable |
|||
|
#16
GUIDE, FUEL BREATHER TUBE
17561-MEL-000
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE, FUEL FEED HOSE
17562-MEL-D00
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE B, FUEL TANK BREATHER
17565-MEL-D00
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, BASE
17574-MEE-000
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, FUEL FILLER
17620-MCJ-751
Superseded by 17620-MCJ-753
|
$222.96 | ||
|
Unavailable |
|||
|
#21
JOINT, TUBE
19102-KT8-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, AIR FILTER
36191-KV3-700
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER, PROTECTOR
81214-MT3-300
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SPROCKET FIXING
90128-KL4-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, BANJO (12MM)
90136-MEL-000
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT A, SEALING (12MM)
90201-PD1-000
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SEALING (12MM)
90428-PD6-003
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#31
BULK HOSE, VACUUM (8X1000) (8X170)
95005-80001-50M
|
$19.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BULK HOSE, VACUUM (4.5X1000) (4.5X450)
95005-45001-20M
|
$40.16 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X35)
95801-06035-00
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
TUBE C, FUEL TANK BREATHER
17575-MEL-000
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BULK HOSE, VACUUM (8X1000) (8X340)
95005-80001-20M
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#39
TAPE, TANK GUARD
17528-MR4-900
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP B, TUBE
16106-KW7-900
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#41
CUSHION, FUEL TANK
17554-MEL-300
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
TAPE, PROTECTOR
81229-MR5-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
TAPE B, TANK GUARD
17528-KCZ-930
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#45
FILM A, PROTECTOR
17556-MEL-300
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#45
FILM A, PROTECTOR
17556-MEL-300
|
$18.84 | ||
|
Unavailable |
|||
