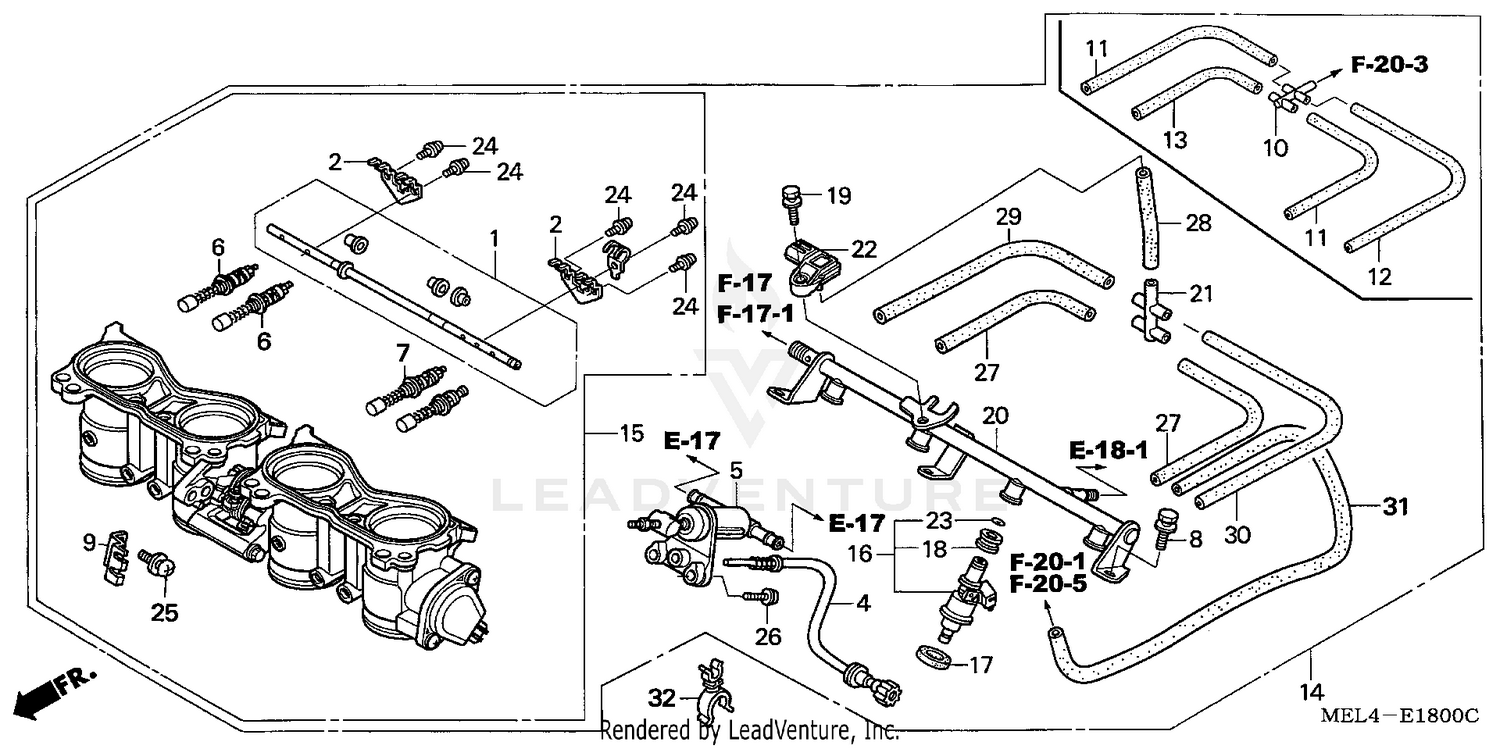

Throttle Body (assy.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT SET, STARTER
16017-MEL-003
|
$76.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, STARTER
16018-MEE-003
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW SET, STOP
16029-MEL-013
|
$38.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
WAX ASSY.
16044-MCW-003
|
$88.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE SET, STARTER
16046-MEE-003
|
$35.92 | ||
|
Unavailable |
|||
|
#7
VALVE SET, STARTER
16046-MEL-003
|
$37.87 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X12)
16080-MCJ-003
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, WIRE
16169-MEL-013
|
$5.57 | ||
|
Unavailable |
|||
|
#14
BODY ASSY., THROTTLE (GQA0C A)
16400-MEL-671
|
$1,949.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY ASSY., THROTTLE
16401-MEL-671
|
$1,195.31 | ||
|
Unavailable |
|||
|
#16
INJECTOR ASSY., FUEL
16450-MEL-003
|
$170.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL RING, INJECTOR
16472-MCW-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X18)
16542-MEL-003
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, FUEL
16610-MEL-003
|
$130.84 | ||
|
Unavailable |
|||
|
#21
JOINT, FIVE-WAY
17201-MCJ-003
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR ASSY., MAP
37830-MEL-003
|
$156.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
91301-P7A-004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (3X8)
93892-03008-10
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X12)
93892-05012-00
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X12)
93892-05012-10
Superseded by 93892-05012-00
|
$0.87 | ||
|
Unavailable |
|||
|
#26
SCREW-WASHER (6X20)
93892-06020-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (6X20)
93892-06020-10
Superseded by 93892-06020-00
|
$0.90 | ||
|
Unavailable |
|||
|
#27
BULK HOSE, VACUUM (3.5X1000) (3.5X50)
95005-35001-20M
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
BULK HOSE, VACUUM (3.5X1000) (3.5X60)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#29
BULK HOSE, VACUUM (3.5X1000) (3.5X130)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#30
BULK HOSE, VACUUM (3.5X1000) (3.5X150)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#31
BULK HOSE, VACUUM (3.5X1000) (3.5x540)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
