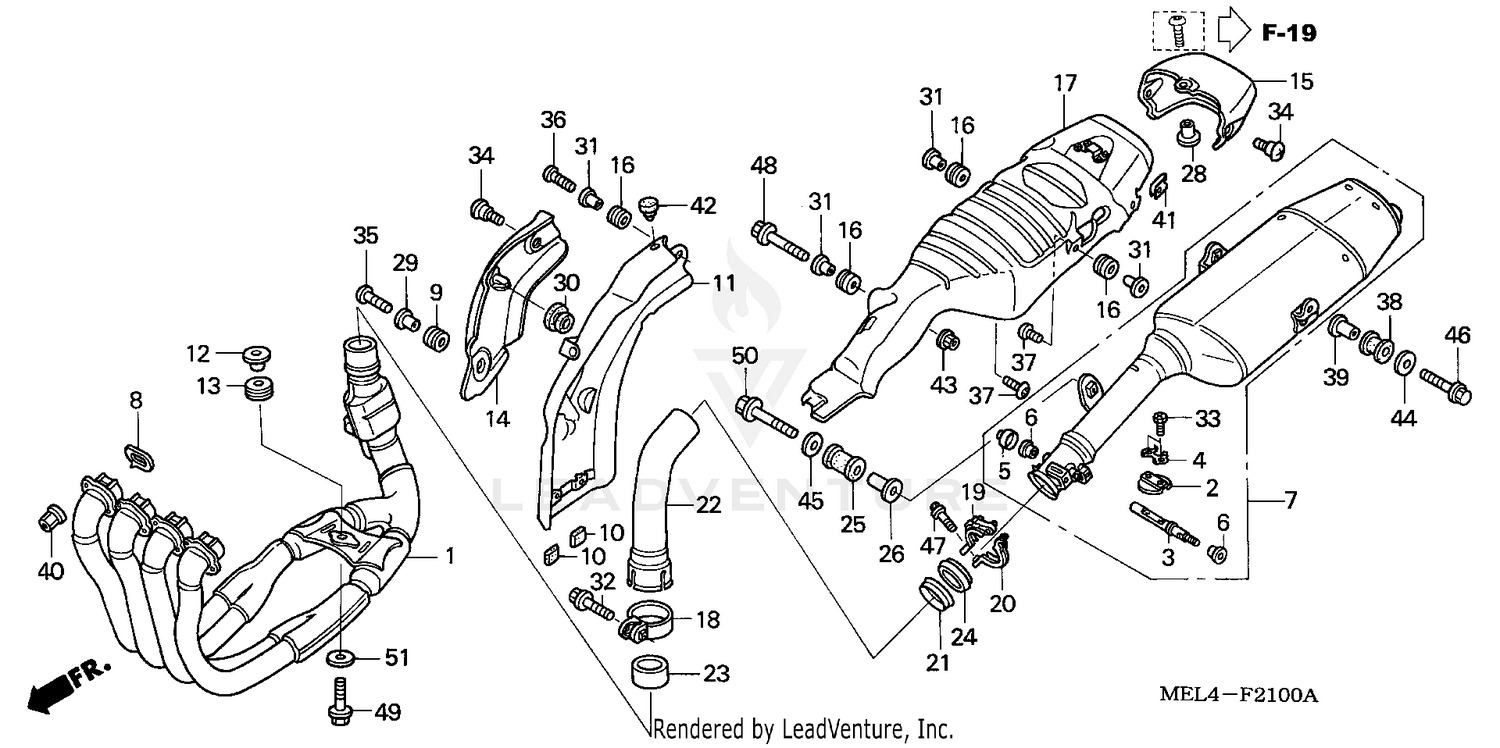

Muffler (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX.
18150-MEL-671
|
$808.79 | ||
|
Unavailable |
|||
|
#2
VALVE, BUTTERFLY
18176-MEL-000
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, BUTTERFLY VALVE
18177-MEL-000
|
$90.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
18178-MEL-000
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, EX. VALVE
18196-MEL-310
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, EX. VALVE
18197-MEL-000
|
$18.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER ASSY., EX. VALVE AND
18200-MEL-A01
|
$1,178.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, EX. PIPE
18291-MEL-000
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, PROTECTOR GASKET
18293-GN2-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, PROTECTOR GASKET
18293-MCA-A20
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PROTECTOR, EX. PIPE (INNER)
18325-MEL-D00
|
$156.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RR. CHAMBER (8.5X15)
18327-KAE-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, MUFFLER MOUNTING
18328-MEL-000
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, EX. PIPE (OUTER)
18330-MEL-D00
|
$21.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, RR. MUFFLER
18340-MEL-010
|
$113.65 | ||
|
Unavailable |
|||
|
#16
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR, MUFFLER
18345-MEL-D00
|
$147.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, MUFFLER
18371-MEL-003
|
$24.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, R. MUFFLER (50.8)
18372-MEL-000
|
$52.21 | ||
|
Unavailable |
|||
|
#20
BAND, L. MUFFLER (50.8)
18373-MEL-000
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, JOINT (48.6)
18375-MEL-010
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT, EX. PIPE
18380-MEL-671
|
$73.68 | ||
|
Unavailable |
|||
|
#23
GASKET, MUFFLER
18391-MEL-000
|
$26.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, MUFFLER (50.8)
18392-MEL-000
|
$27.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, MUFFLER MOUNTING
18421-MB0-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, CHAMBER MOUNTING
18424-MN5-000
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR, FENDER SETTING
80103-MCJ-750
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET, SIDE COVER
83601-MN5-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
84706-415-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X35)
90103-MCF-D60
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SPECIAL (4X8)
90106-MEL-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, SPECIAL (5X11)
90114-MEL-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (5X15)
90115-MEL-000
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW, PAN (6X14)
90118-MBV-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN (6X14)
90118-MR1-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CUSHION, EX. PIPE MOUNTING
90201-MBB-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR (8X18)
90202-MBB-000
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (7MM)
90304-MM5-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, CLIP (5MM)
90307-MEL-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#42
RUBBER, PROTECTOR
90572-MEL-000
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
WASHER, PLAIN (8MM)
94103-08000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
BOLT, FLANGE (8X30)
95801-08030-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (6X20)
96001-06020-02
|
$1.49 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE (6X35)
96300-06035-00
|
$1.11 | ||
|
Unavailable |
|||
|
#49
BOLT, FLANGE (8X32)
96400-08032-00
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE (8X45)
96400-08045-07
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
WASHER (8.5X28)
90534-MV4-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
