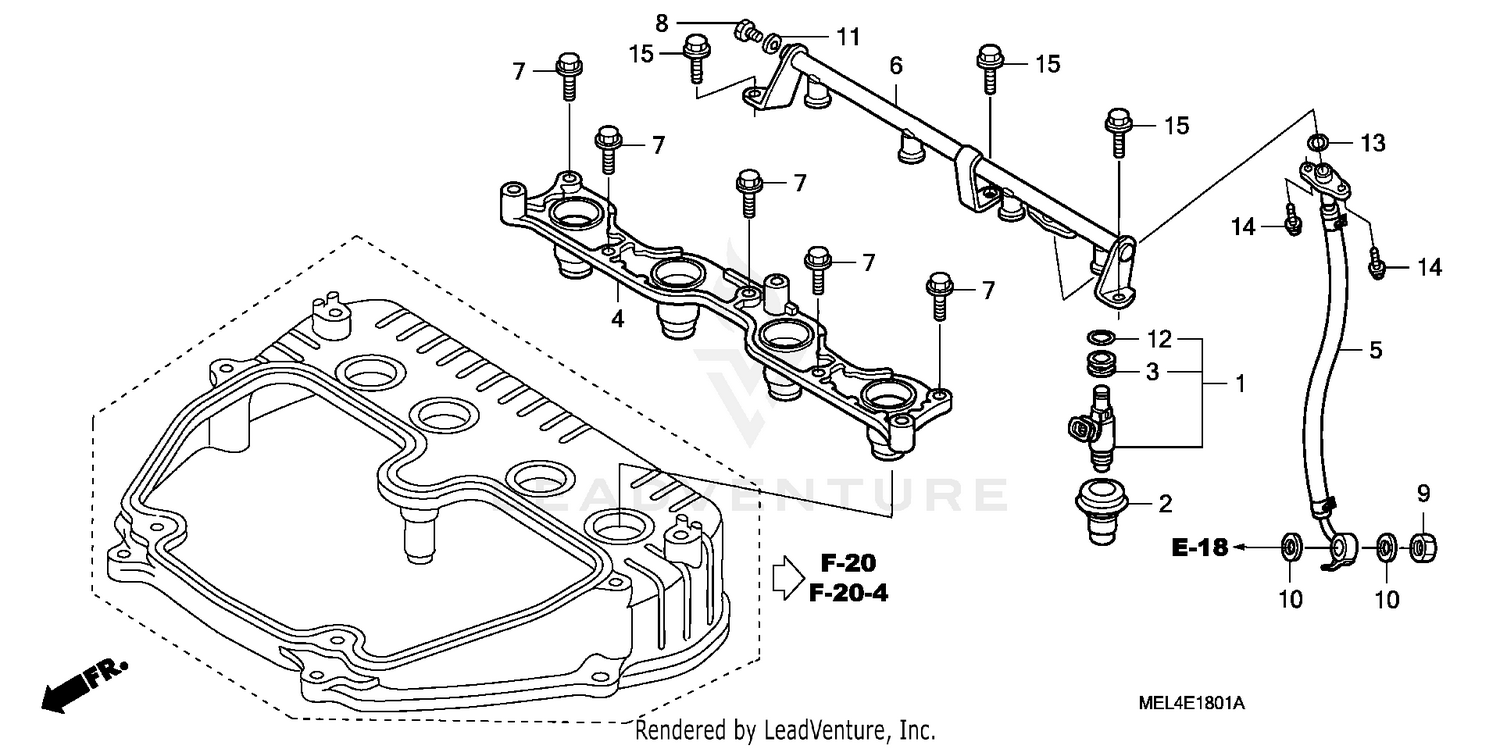

Throttle Body (injection) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
INJECTOR ASSY., FUEL
16450-MEL-003
|
$170.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL RING, INJECTOR
16472-MEL-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, INJECTOR
16510-MEL-000
|
$96.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE B, FUEL FEED
16527-MEL-004
|
$98.00 | ||
|
Unavailable |
|||
|
#6
PIPE, FUEL FEED
16620-MEL-000
|
$176.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (5X14)
90003-MEL-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SEALING (6MM)
90009-PP4-E01
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT A, SEALING (12MM)
90201-PD1-000
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (12MM)
90428-PD6-003
|
$6.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SEALING (6MM)
90430-PD6-003
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
91301-P7A-004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (7.8X1.9)
91302-MCA-000
|
$2.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X8)
96001-06008-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
