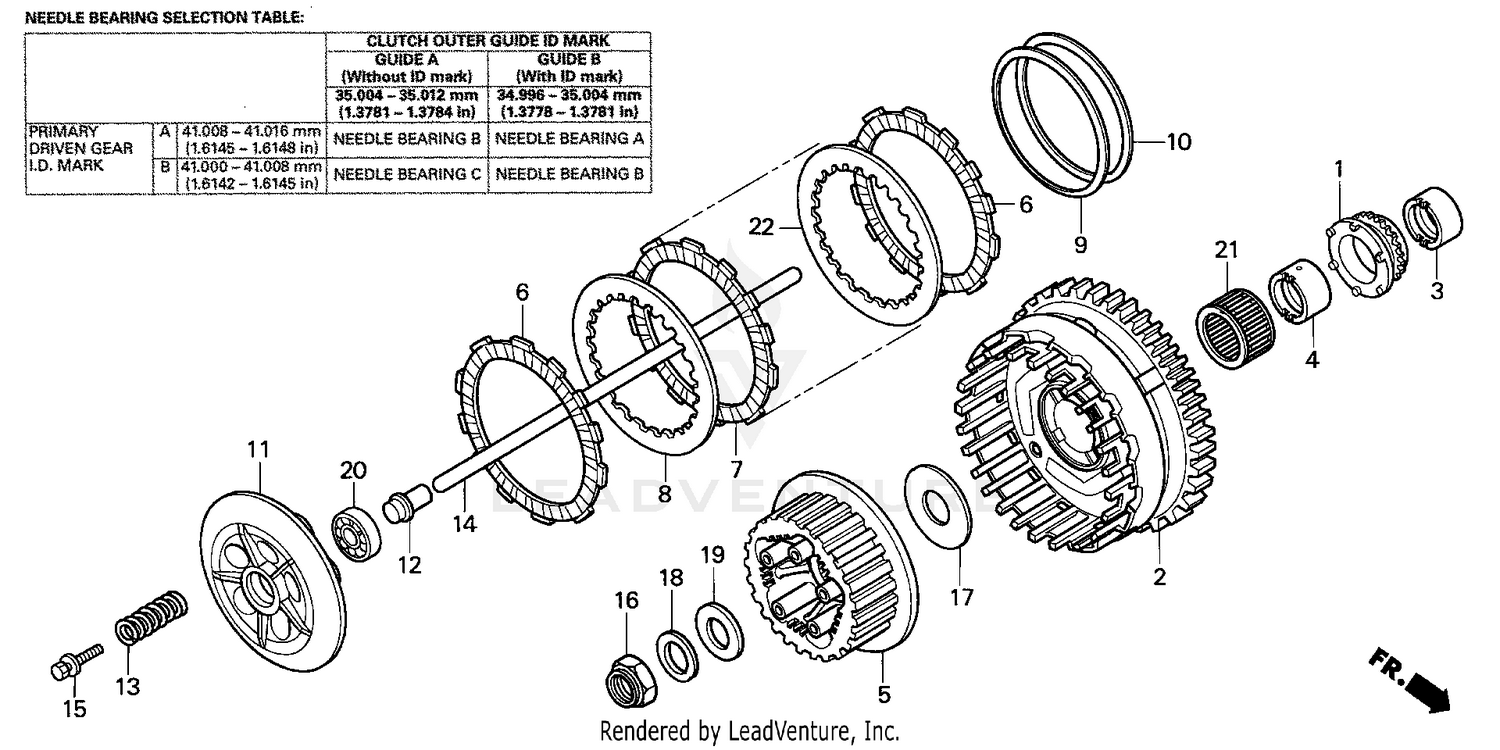

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING)
06001-MEL-000
|
$165.42 | ||
|
Unavailable |
|||
|
#1
SPROCKET, OIL PUMP DRIVE (26T)
15131-MEL-003
|
$70.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER A (77T) (INDENT MARK A)
22100-MEL-020
|
$441.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER B (77T) (INDENT MARK B)
22110-MEL-020
|
$422.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, OIL PUMP SPROCKET
22116-MEL-000
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE A, CLUTCH (OUTER) (HOLE NOTHING)
22117-MEL-000
|
$24.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE B, CLUTCH (OUTER) (2MM HOLE)
22118-MEL-000
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, CLUTCH
22120-MEL-000
|
$140.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-MBB-000
|
$25.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
DISK, CLUTCH FRICTION
22201-MEL-000
|
$18.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH (2.3)
22321-MEL-000
|
$18.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH PLATE
22325-MEL-000
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT, JUDDER SPRING
22326-MEL-000
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH PRESSURE
22350-MEL-000
|
$60.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIECE, CLUTCH JOINT
22366-MM5-000
|
$27.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CLUTCH
22401-MEL-000
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CLUTCH LIFTER
22850-MEL-000
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X32)
90022-MAT-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, LOCK (25MM)
90231-MS2-610
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (28.2X56X2)
90401-MS2-610
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING (25MM) (CHUO SPRING)
90432-MM8-003
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (25X40X2)
90451-VM0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (16003)
91008-KK6-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (16003)
91010-HC0-003
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (16003)
91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#21
BEARING B, NEEDLE (35X41X23.8) (WHITE)
91101-MEE-003
Superseded by 91102-MEE-003
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING B, NEEDLE (35X41X23.8) (WHITE)
91102-MEE-003
|
$8.22 | ||
|
Unavailable |
|||
|
#21
BEARING B, NEEDLE (35X41X23.8) (WHITE)
91103-MEE-003
Superseded by 91102-MEE-003
|
$8.22 | ||
|
Unavailable |
|||
|
#22
PLATE B, CLUTCH (2.3)
22322-MEL-000
|
$18.27 | ||
|
Available to order. Add to View Price |
|||
