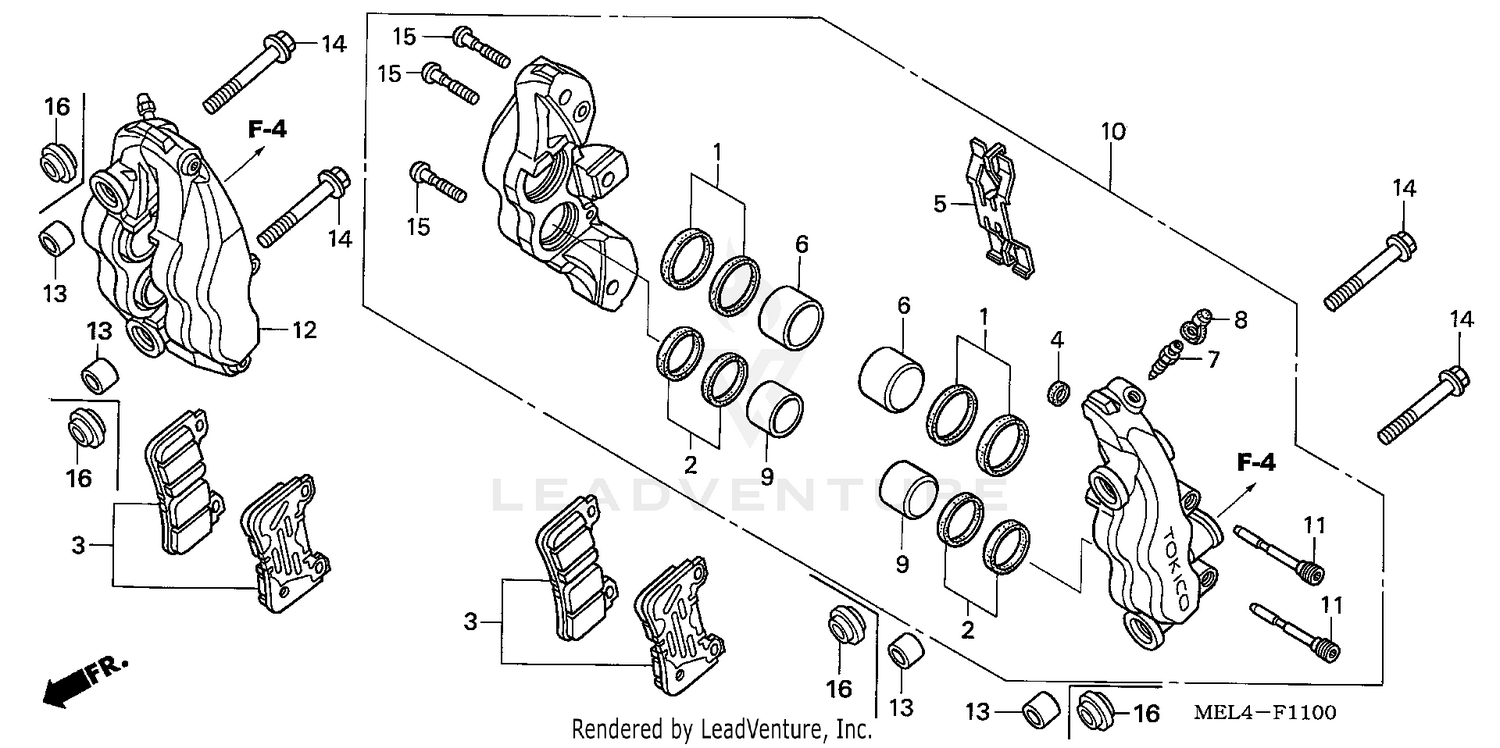

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (32)
06451-MEL-003
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON (30)
06452-MEL-003
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, FR.
06455-MEL-003
Superseded by 06455-MEL-013
|
$54.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, FR.
06455-MEL-013
|
$54.97 | ||
|
Unavailable |
|||
|
#4
SEAL, JOINT
45103-MEL-003
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, PAD
45106-MEL-003
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON (32)
45107-MEL-003
|
$55.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, BLEEDER
45111-MEL-003
Superseded by 45111-MEL-013
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, BLEEDER
45111-MEL-013
|
$2.42 | ||
|
Unavailable |
|||
|
#8
CAP, BLEEDER
45112-MEL-003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON (30)
45117-MEL-003
|
$53.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER SUB-ASSY., L. FR. (TOKIKO)
45150-MEL-013
Superseded by 45150-MEL-023
|
$345.02 | ||
|
Unavailable |
|||
|
#10
CALIPER SUB-ASSY., L. FR. (TOKIKO)
45150-MEL-023
|
$345.02 | ||
|
Unavailable |
|||
|
#11
PIN, HANGER
45215-MEL-013
Superseded by 45215-MFL-881
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER SUB-ASSY., R. FR.
45250-MEL-013
Superseded by 45250-MEL-023
|
$368.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER SUB-ASSY., R. FR.
45250-MEL-023
|
$368.22 | ||
|
Unavailable |
|||
|
#13
SPACER, FR. FORK
51497-MEL-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X57)
90131-MEL-000
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, TORX (8X40)
90141-MEL-003
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
