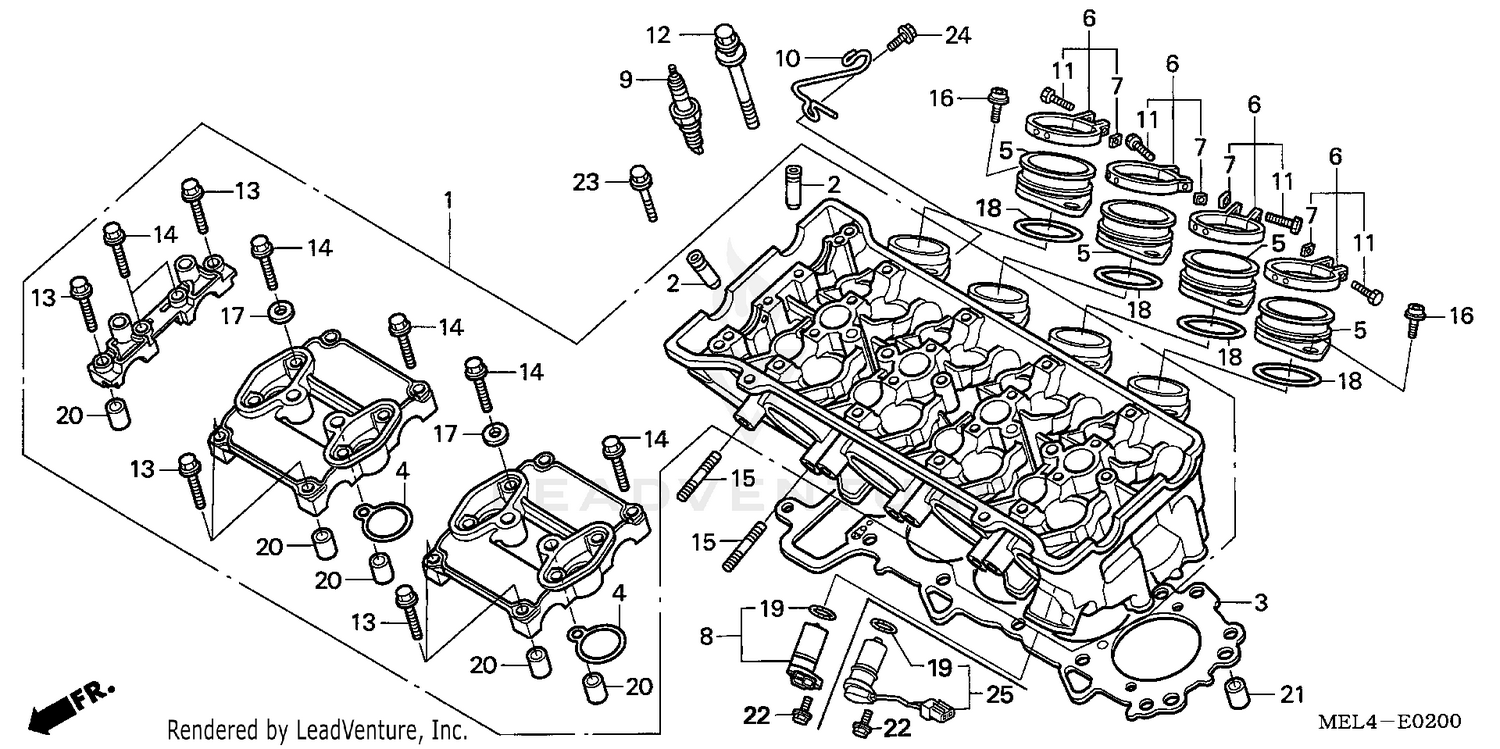

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MEL-000
|
$1,549.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MEL-305
|
$18.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MEL-013
|
$109.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, PLUG HOLE
12395-MCJ-000
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, THROTTLE BODY
16210-MEL-000
|
$59.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, INSULATOR
16218-MEL-000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
PICK-UP ASSY.
28810-P7Z-004
|
$250.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (IMR9C-9HES) (NGK)
31912-MEL-003
|
$20.86 | ||
|
Unavailable |
|||
|
#9
SPARK PLUG (VUH27ES) (DENSO)
31922-MEL-003
|
$29.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, HARNESS
32109-MEL-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, RECESSED (5X22)
90005-MEL-000
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (9X105)
90007-MEL-003
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X39.5)
90019-MA6-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X24)
90035-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE SOCKET (6X16)
90071-MEL-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (44.3X2.5)
91301-MEL-003
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (16X2.1) (NOK)
91309-PX4-003
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (8X20)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#21
PIN, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X18)
95701-06018-07
|
$1.70 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
