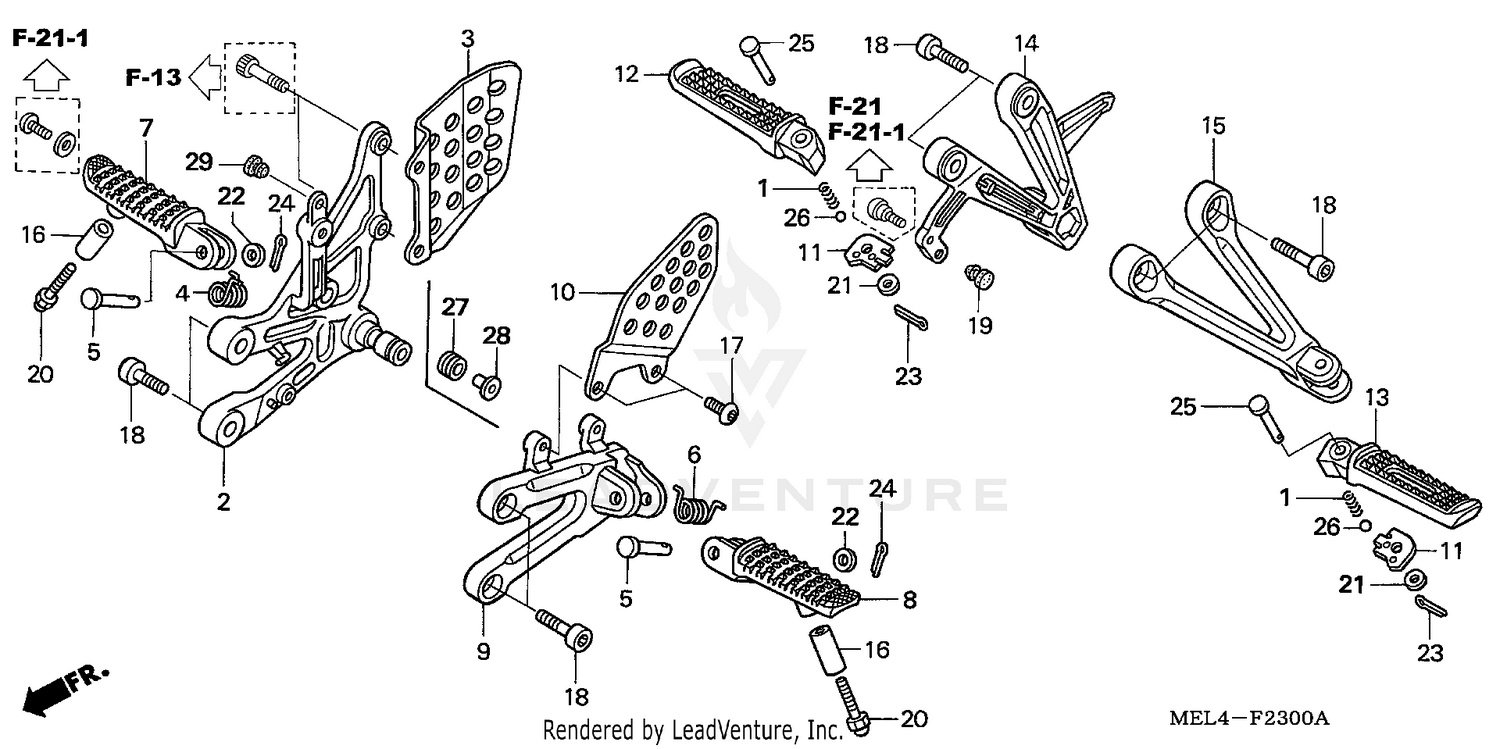

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, KICK STARTER STOPPER
28333-300-000
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, R. MAIN STEP
50600-MEL-000
|
$107.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUARD, R. STEP
50607-MEL-000
|
$24.90 | ||
|
Unavailable |
|||
|
#4
SPRING, R. STEP RETURN
50617-MCJ-750
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, STEP BAR
50639-ML0-010
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, L. STEP RETURN
50644-MCJ-750
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, R. MAIN STEP (COO)
50660-MEL-000
Superseded by 50660-MEL-305
|
$60.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, L. MAIN STEP (COO)
50665-MEL-000
Superseded by 50665-MEL-305
|
$60.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, L. MAIN STEP
50700-MEL-000
|
$88.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, L. STEP
50707-MCJ-000
|
$41.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, PILLION STEP CLICK
50718-KT7-761
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, R. PILLION STEP (COO)
50720-MEL-D00
Superseded by 50720-MEL-305
|
$70.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ARM, L. PILLION STEP (COO)
50730-MEL-D00
Superseded by 50730-MEL-305
|
$70.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HOLDER, R. PILLION STEP
50750-MEL-000
|
$120.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, L. PILLION STEP
50760-MEL-000
|
$86.76 | ||
|
Unavailable |
|||
|
#16
COLLAR, STEP (LOWER)
51486-MEL-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (6X14)
90118-MR1-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, SOCKET (8X22)
90157-ME9-000
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
RUBBER, PROTECTOR
90572-MEL-000
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CAP (6X50)
92501-06050-0A
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (8MM)
94102-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIN, SPLIT (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN C, PILLION STEP
95015-83000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
RUBBER, PROTECTOR
90572-MEL-000
|
$2.91 | ||
|
Unavailable |
|||
