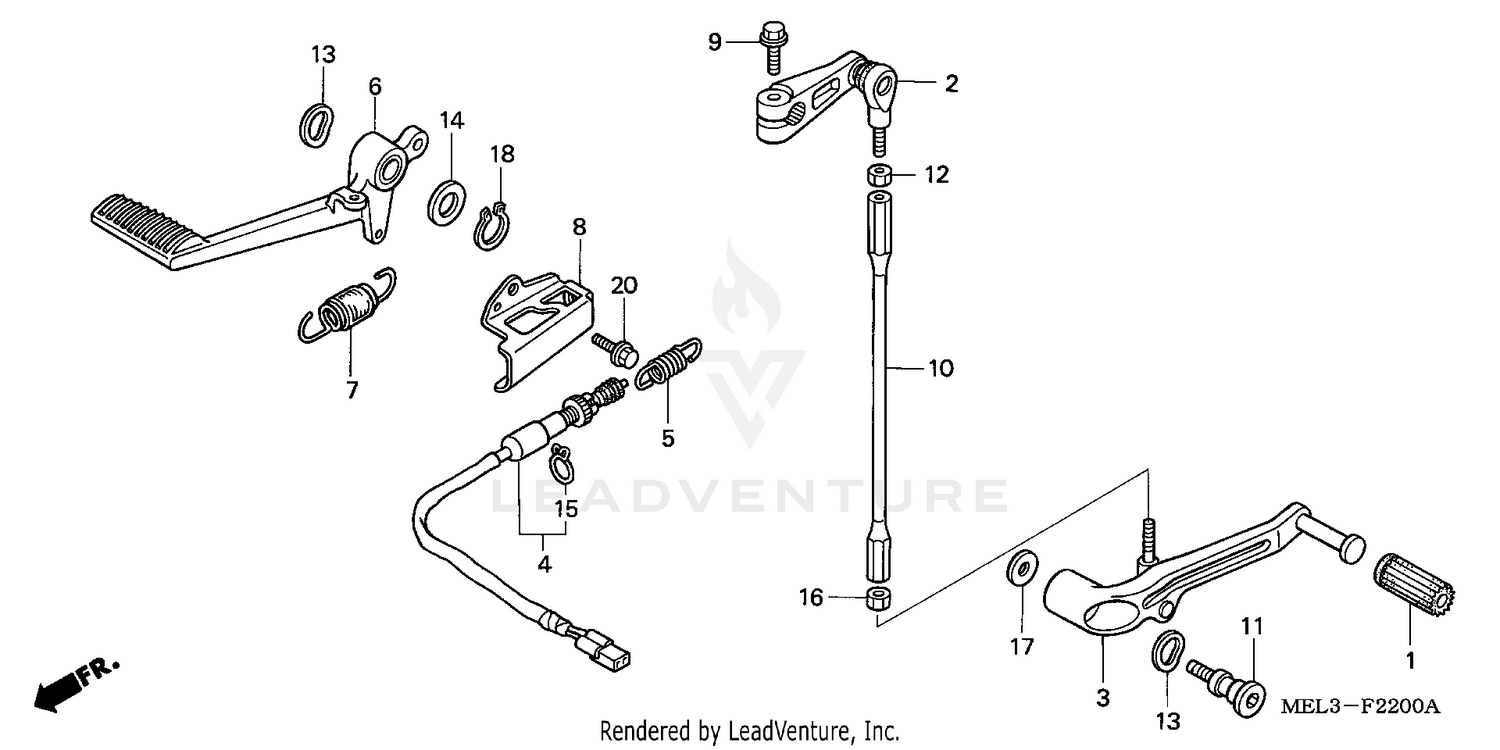

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, GEARSHIFT PEDAL
24705-MR7-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, GEARSHIFT
24710-MEE-000
|
$80.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, GEARSHIFT
24720-MEL-000
|
$141.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., RR. STOP
35350-MEL-000
Superseded by 35350-MEL-D20
|
$38.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., RR. STOP
35350-MEL-D20
|
$38.02 | ||
|
Unavailable |
|||
|
#5
SPRING, STOP SWITCH
35357-KY1-000
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL, RR. BRAKE
46500-MEL-000
|
$177.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING ASSY., BRAKE PEDAL
46515-MV9-000
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, STOP SWITCH
50602-MEL-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X20)
90010-ML0-720
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, CHANGE
90065-MEL-000
|
$26.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CHANGE PIVOT
90113-MCF-000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
90201-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CHANGE PEDAL WAVE
90505-MBW-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (15.2X25)
90557-230-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (6MM)
94001-06020-0S
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP, OUTER (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
