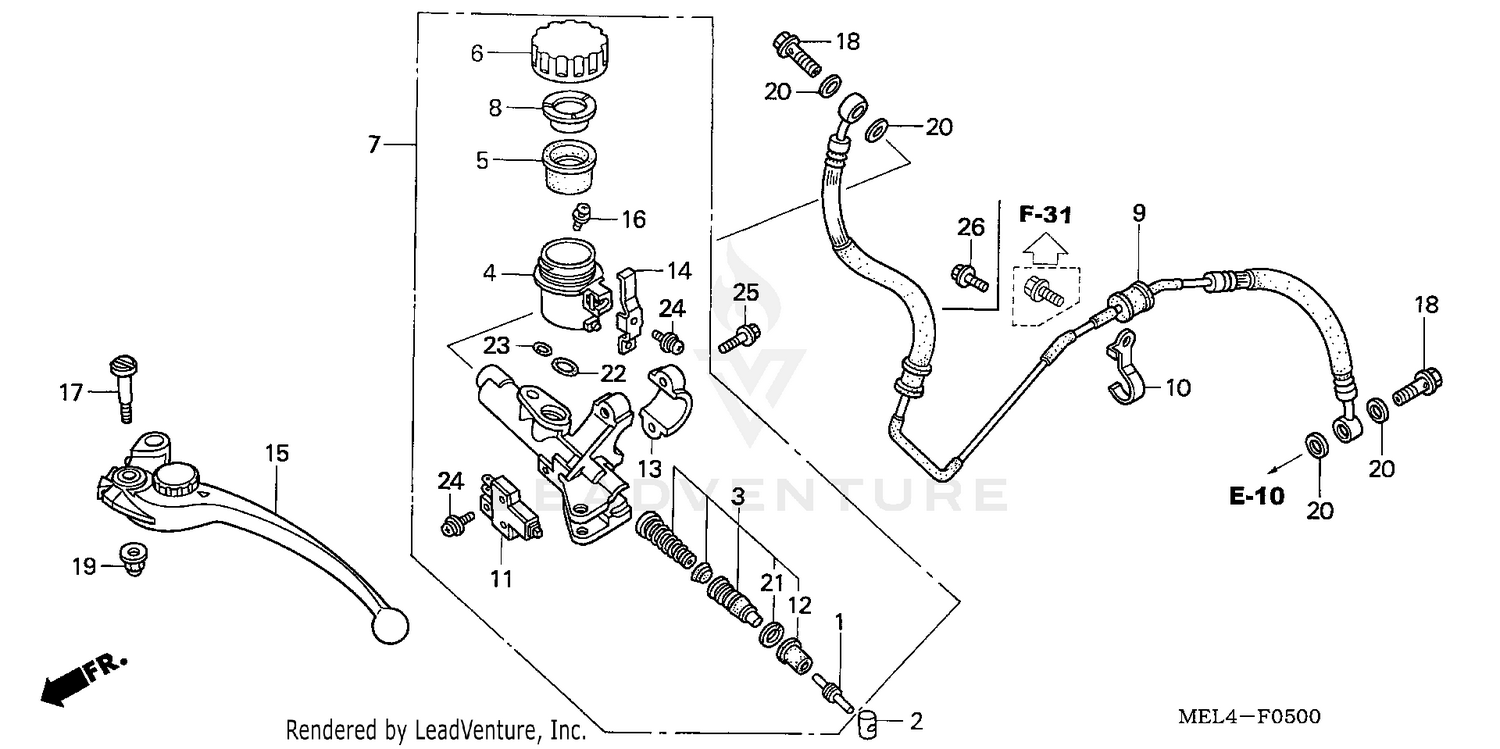

Clutch Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD, PUSH
22884-MAT-E01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
22885-MB0-006
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON SET, MASTER CYLINDER
22886-MAT-E01
|
$69.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUP, OIL
22887-MBB-006
|
$48.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM
22888-MR7-006
|
$18.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, CLUTCH OIL CUP
22889-MR7-006
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
MASTER CYLINDER SUB-ASSY., CLUTCH
22890-MEL-016
|
$457.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, DIAPHRAGM
22890-MR7-006
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, CLUTCH
22900-MEL-000
|
$230.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, RR. CLUTCH PIPE
22912-MEL-000
Superseded by 22912-MEL-D30
|
$4.78 | ||
|
Unavailable |
|||
|
#11
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT
45504-MAT-E01
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, MASTER CYLINDER
45517-MEL-006
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, STOP
45535-MR8-901
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER ASSY., L. HANDLE
53180-MEJ-006
Superseded by 53180-MEJ-016
|
$61.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TRIPLE (4X11)
90101-MR7-006
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HANDLE LEVER PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
91355-MG9-006
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
