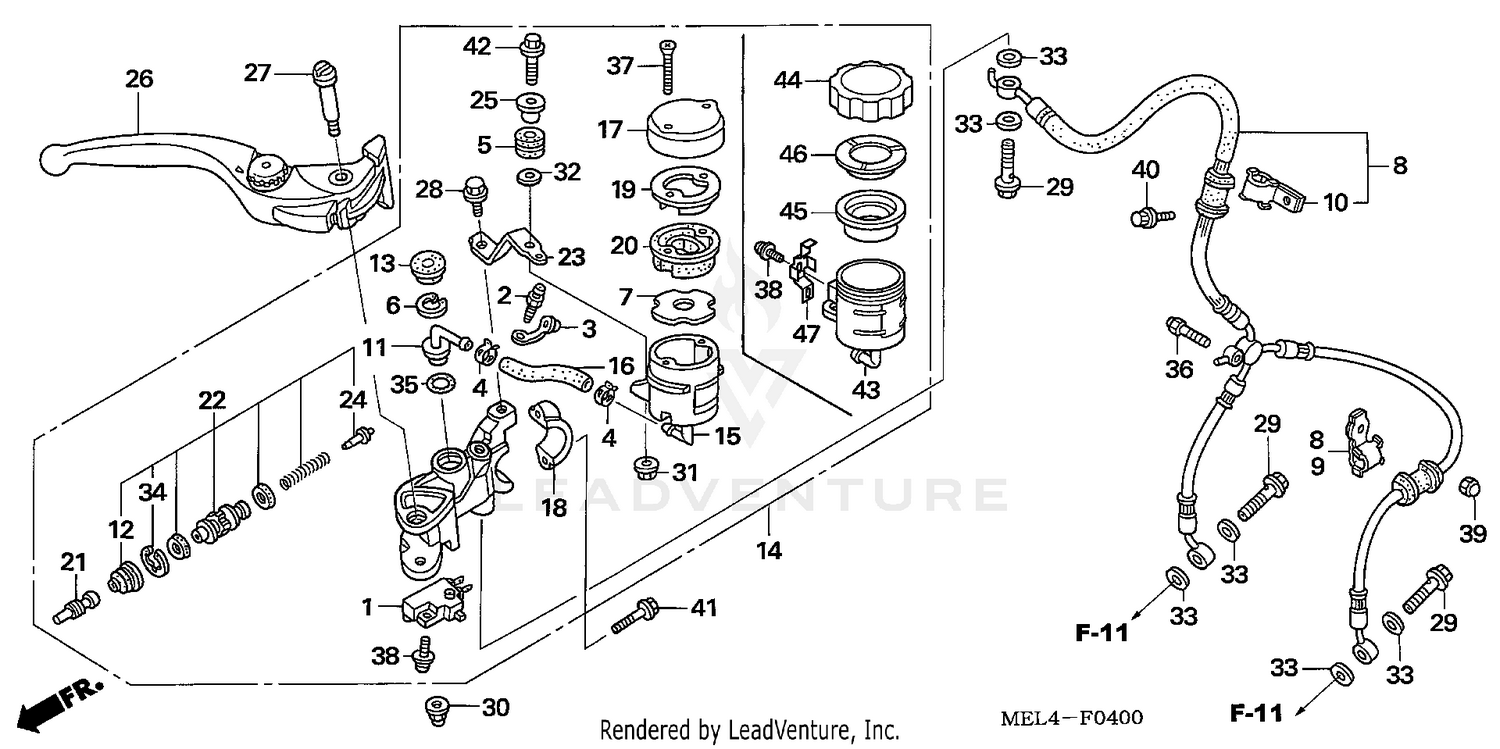

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MEL-003
|
$18.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, OIL CUP
43516-MCJ-006
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP, RR. MASTER CYLINDER
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLOAT, RR. MASTER CYLINDER
43523-MAH-671
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, FR. BRAKE
45125-MEL-003
|
$114.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP A, FR. BRAKE HOSE
45158-MEL-000
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP B, FR. BRAKE HOSE
45159-MEL-000
|
$4.31 | ||
|
Unavailable |
|||
|
#11
CONNECTOR, MASTER CYLINDER
45503-KV3-006
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT
45504-MCF-006
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, DUST
45505-KV3-006
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SUB-ASSY., FR.
45510-MEL-006
|
$268.55 | ||
|
Unavailable |
|||
|
#15
CUP, OIL
45511-KV3-016
|
$44.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, MASTER CYLINDER OIL
45512-MEL-006
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, OIL CUP
45513-KV3-006
|
$42.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, MASTER CYLINDER
45517-MEL-006
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, DIAPHRAGM
45518-KV3-006
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
DIAPHRAGM
45520-KV3-006
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, PUSH
45525-MEL-006
Superseded by 45525-MEL-016
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, PUSH
45525-MEL-016
|
$17.80 | ||
|
Unavailable |
|||
|
#22
MASTER CYLINDER SET
45530-MEL-006
|
$65.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, FR. MASTER CYLINDER
45550-MEL-006
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, SPRING
46140-MEL-006
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER ASSY., R. HANDLE
53170-MEL-006
|
$63.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HANDLE LEVER
90114-MCF-006
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
90117-MR7-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, U (6MM)
90301-MG3-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER (6X16)
90473-147-000
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
CIRCLIP
90651-MCF-006
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEX. CAP (6X18)
92501-06018-0G
|
$1.99 | ||
|
Unavailable |
|||
|
#37
SCREW, FLAT (4X50)
93600-04050-1G
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#39
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X28)
96300-06028-07
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
