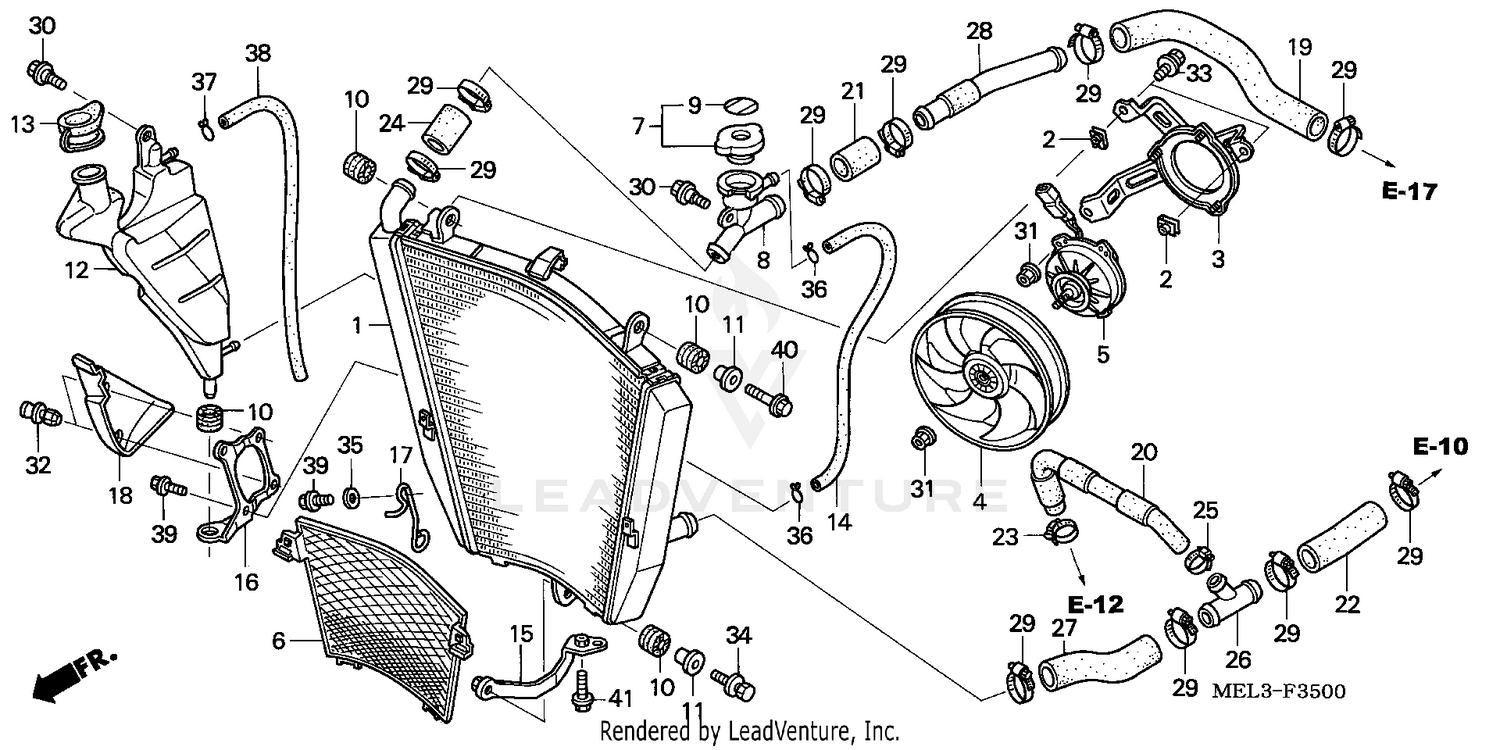

Radiator (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-MEL-D01
|
$835.57 | ||
|
Unavailable |
|||
|
#2
NUT, SETTING
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD
19015-MEL-003
|
$48.88 | ||
|
Unavailable |
|||
|
#4
FAN, COOLING
19020-MAT-E02
|
$59.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOTOR ASSY., FAN
19030-MEL-003
|
$258.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRILLE, RADIATOR
19032-MEL-000
|
$20.96 | ||
|
Unavailable |
|||
|
#7
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
NECK, FILLER
19039-MEL-003
|
$33.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RADIATOR RESERVE
19101-MEL-000
|
$54.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVE TANK
19104-MB0-700
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, RESERVE TANK FILLER
19104-MEL-000
|
$12.50 | ||
|
Unavailable |
|||
|
#15
STAY, RADIATOR (LOWER)
19113-MEL-000
|
$13.06 | ||
|
Unavailable |
|||
|
#16
BRACKET, RESERVE TANK
19117-MEL-000
|
$5.90 | ||
|
Unavailable |
|||
|
#17
CLAMP, OVERFLOW
19119-MEL-000
|
$3.47 | ||
|
Unavailable |
|||
|
#18
GUIDE, FAN AIR
19125-MEL-000
|
$8.12 | ||
|
Unavailable |
|||
|
#19
HOSE A, R. RADIATOR
19501-MEL-000
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, OIL COOLER
19502-MEL-000
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE A, WATER
19503-MCT-000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE A, L. RADIATOR
19503-MEL-000
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP, HOSE (25MM)
19504-KT7-751
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, FILLER NECK
19504-MEL-000
|
$14.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP A, WATER HOSE
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT, HOSE (THREE-WAY)
19507-MEE-000
|
$14.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE B, L. RADIATOR
19508-MEL-000
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE, WATER
19509-MEL-000
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, PANEL FIXING *NH1* (BLACK)
91549-MW0-790ZA
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT-WASHER (6X12)
93401-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#35
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#36
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BULK HOSE, VACUUM (5X3000) (5X540)
95005-50003-30M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
