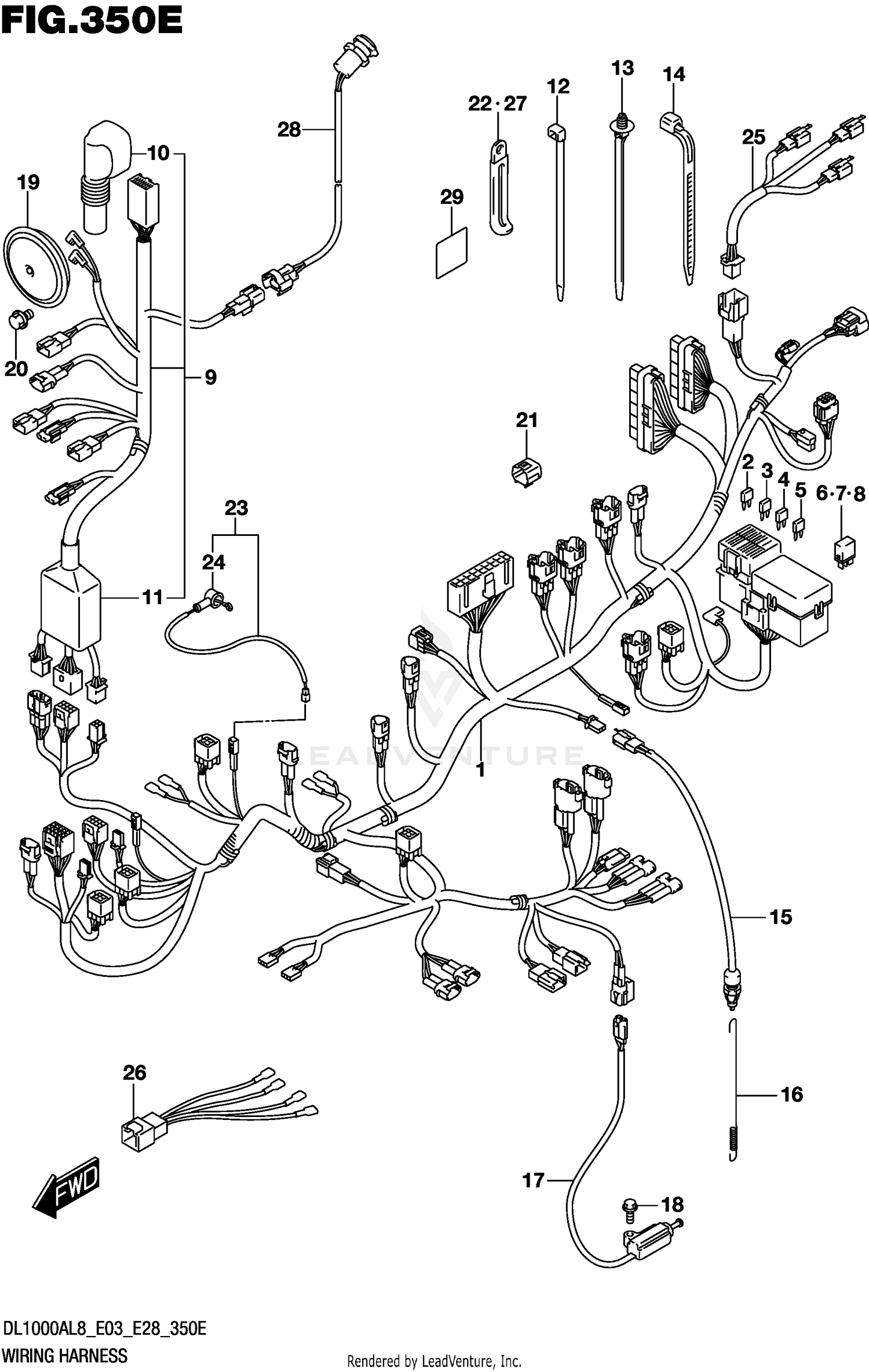

Wiring Harness (dl1000xal8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-31JN0
|
$1,053.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (3A)
09481-03501
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (10A)
09481-10504
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15504
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (25A)
09481-25504
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#8
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#9
HARNESS, WIRING NO.2
36620-31J10
|
$208.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
.COVER, SPEEDOMETER
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#11
.COVER, SPEEDOMETER
36618-18G10
|
$8.94 | ||
|
Unavailable |
|||
|
#12
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SWITCH ASSY,STOP LAMP
37740-31D00
|
$37.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING,STOP LAMP SWITCH
43259-31J00
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY,SIDE STAND
37840-24F00
Superseded by 37840-24F02
|
$66.52 | ||
|
Unavailable |
|||
|
#18
.BOLT (8X35)
09103-08357
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
HORN ASSY
38500-41F50
|
$89.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CAP, TS
36654-06J20
|
$15.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#23
WIRE, OIL PRESSURE SWITCH LEA
36851-31J10
|
$20.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
.CAP, OIL PRESSURE SWITCH
36618-31J00
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
WIRE, REAR TURNSIGNAL LEAD
36856-31J10
|
$36.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
WIRE, IGNITION COIL LEAD
36854-31J20
|
$37.46 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#28
TERMINAL,POWER SOURCE
38850-31J00
|
$82.93 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL, PROTECTOR
48599-57L00
|
|||
|
Unavailable |
|||
