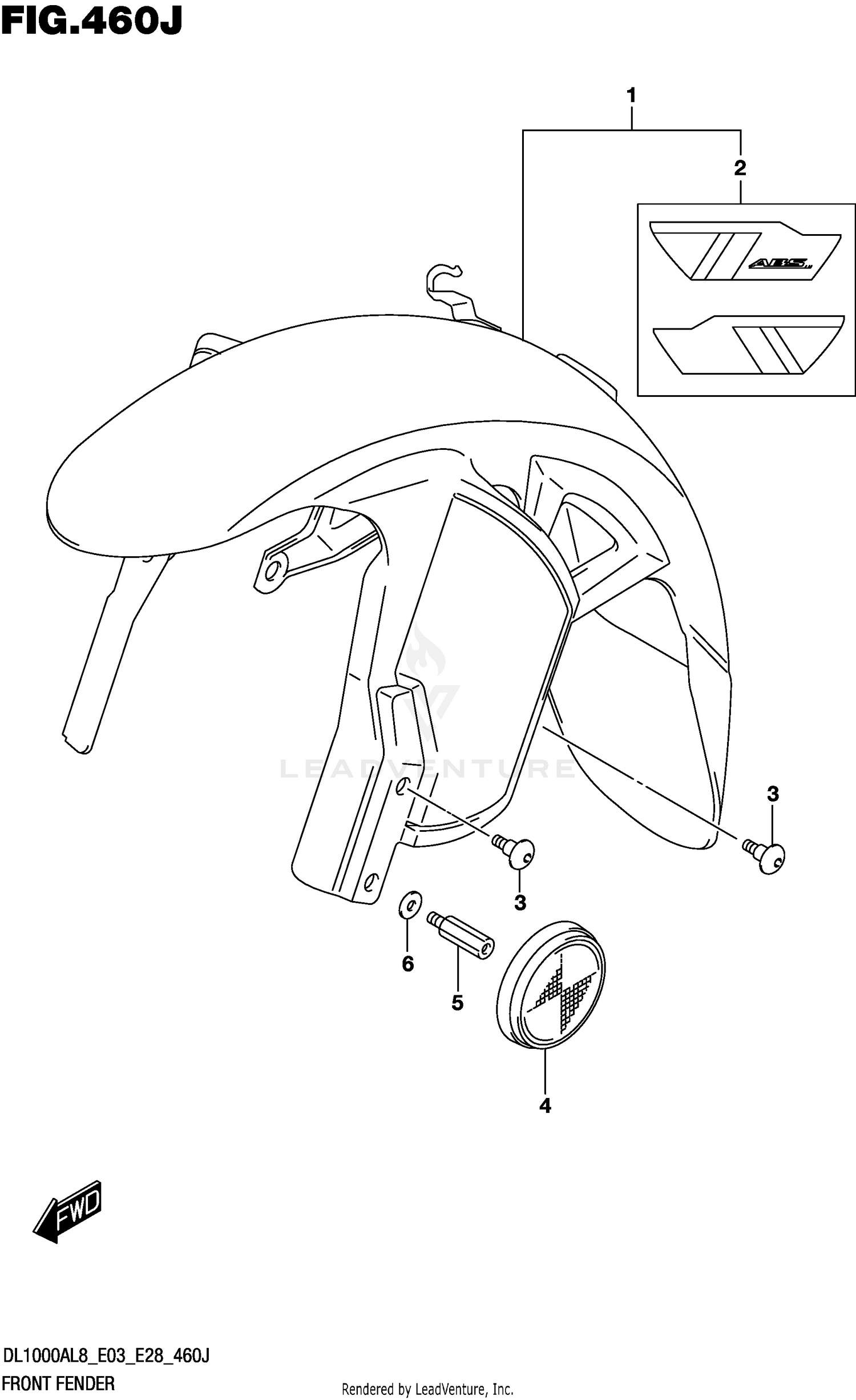

Front Fender (dl1000xal8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
FENDER ASSY,FRO
53100-31J20-BG7
Superseded by 53100-31J21-BG7
|
$211.00 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
FENDER, FRONT
53100-31J20-BG8
|
$175.70 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.TAPE SET, FRONT FENDER
68150-31J00-BG7
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
.TAPE SET, FRONT FENDER
68150-31J00-BG8
|
$32.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
47915-31J00
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLEX REFLECTOR ASSY,FR SIDE
35950-13K00
Superseded by 35950-13K01
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09119-06109
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (8.5X18X1)
09160-08043
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
