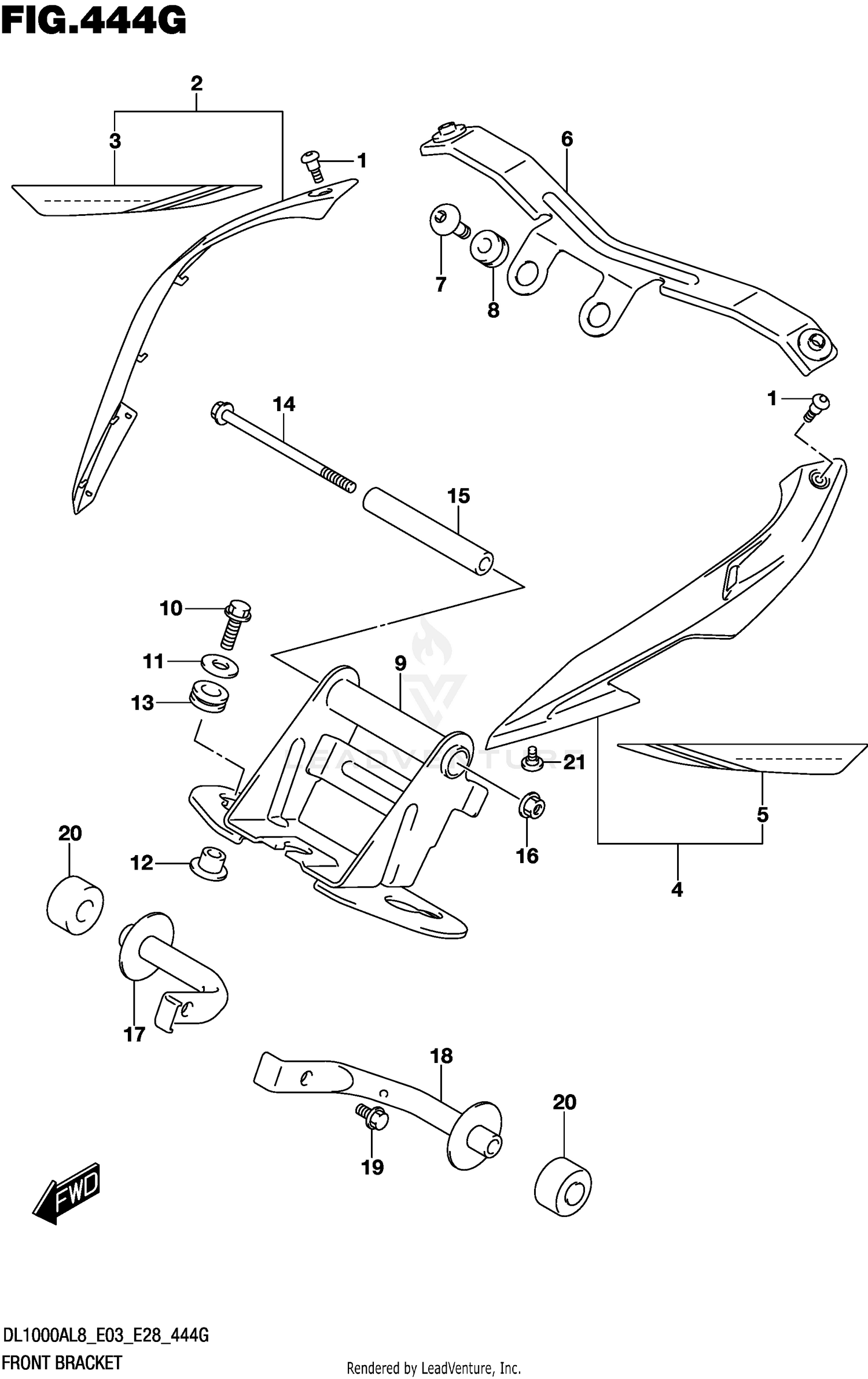

Front Bracket (dl1000xal8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW
44193-31J00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
COVER, SIDE REAR RH (SILVER)
94420-31J20-YMD
|
$156.20 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
COVER, SIDE REAR RH (SILVER)
94420-31J20-5JX
|
$156.20 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
.TAPE, COVER SIDE RH
68275-31J00-BG5
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
.TAPE, COVER SIDE RH
68275-31J00-BG6
|
$23.78 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
COVER, SIDE REAR LH (SILVER)
94430-31J20-YMD
|
$160.64 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
COVER, SIDE REAR LH (SILVER)
94430-31J20-5JX
|
$137.72 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
.TAPE, COVER SIDE LH
68285-31J00-BG5
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
.TAPE, COVER SIDE LH
68285-31J00-BG6
|
$23.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, COVER
44160-31J00
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (6X20)
09139-06190
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, COVER
44164-31J00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET,FUEL TANK FRONT
44520-31J01
|
$61.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW (6X25)
09139-06192
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
09160-06012
Superseded by 09160-06054
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,FUEL TANK,FR
44512-16G00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-0695A
|
|||
|
Unavailable |
|||
|
#15
SPACER
44561-35F00
|
$17.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-3106B
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SIDE RH
44560-31J00
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, SIDE LH
44560-31J00
|
$17.92 | ||
|
Unavailable |
|||
|
#19
BOLT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION,FRONT SIDE BRKT
44543-31J00
Superseded by 44543-31J01
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW (5X13)
09139-05091
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
