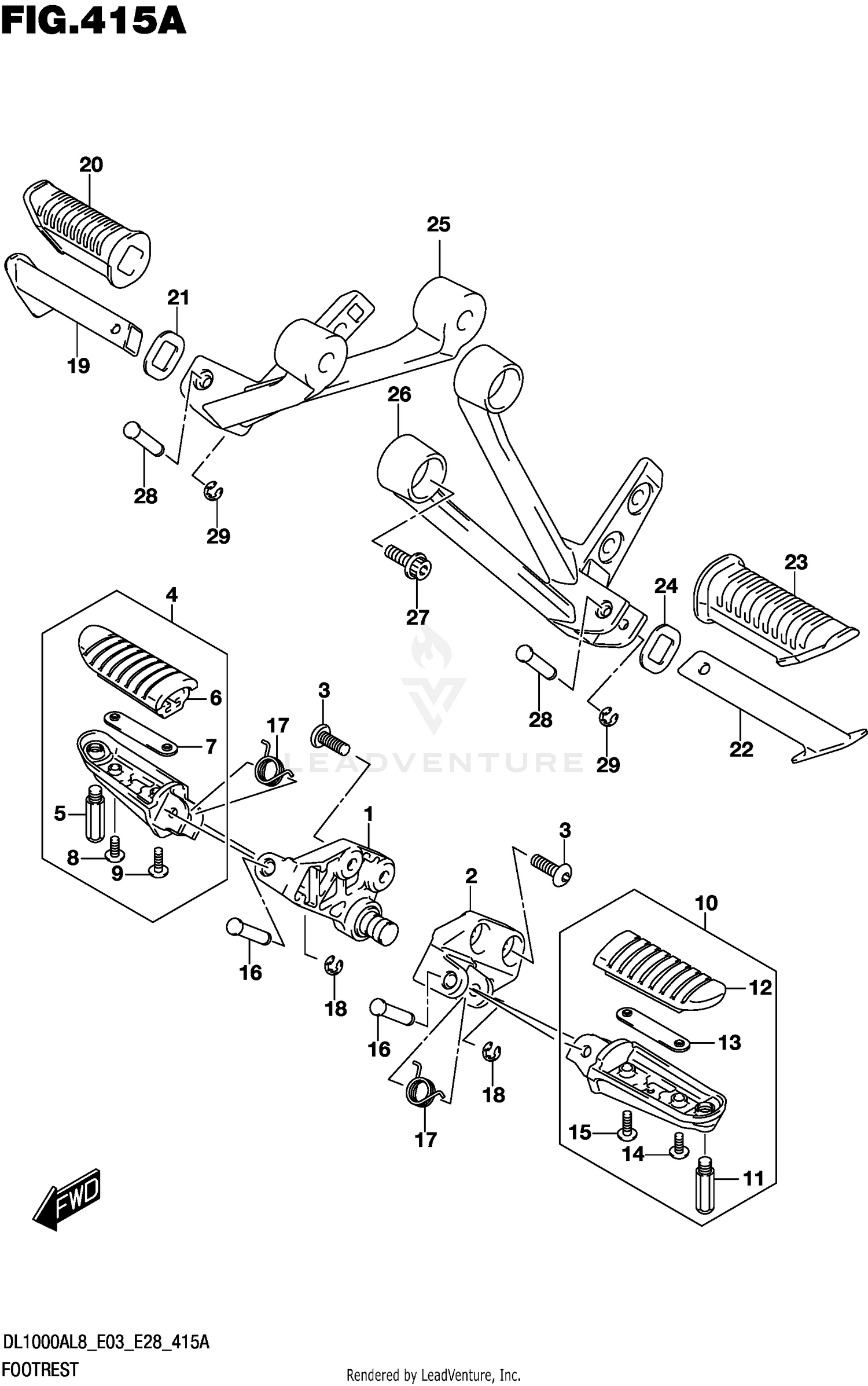

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,FR FOOTREST RH (BLACK
43510-06G01-YAP
Superseded by 43510-06G10-YAP
|
$125.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET,FR FOOTREST,L (BLACK)
43521-06G01-YAP
Superseded by 43521-06G11-YAP
|
$63.39 | ||
|
Unavailable |
|||
|
#3
BOLT (8X23)
09106-08150
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOOTREST ASSY,FRONT RH
43501-31J00
|
$132.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SENSOR,FOOTREST
43576-31J00
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RUBBER
43551-06G00
|
$18.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
.PLATE
43552-06G00
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW
02142-0516A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02142-0520A
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST ASSY,FRONT LH
43502-31J00
|
$117.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SENSOR,FOOTREST
43576-31J00
|
$11.75 | ||
|
Unavailable |
|||
|
#12
.RUBBER
43551-06G00
|
$18.62 | ||
|
Unavailable |
|||
|
#13
.PLATE
43552-06G00
|
$14.47 | ||
|
Unavailable |
|||
|
#14
.SCREW
02142-0516A
|
$1.78 | ||
|
Unavailable |
|||
|
#15
SCREW
02142-0520A
|
$1.77 | ||
|
Unavailable |
|||
|
#16
PIN
09208-08019
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09448-18022
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
E-RING
08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAR,PILLION FOOTREST RH
43610-34A30
Superseded by 43610-34A60
|
$73.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER,PILLION FOOTREST
43612-33G01
Superseded by 43612-33G30
|
$10.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, FOOTREST RUBBER
43631-31J00
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR,PILLION FOOTREST LH
43710-34A30
Superseded by 43710-34A60
|
$70.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER,PILLION FOOTREST
43612-33G01
Superseded by 43612-33G30
|
$10.83 | ||
|
Unavailable |
|||
|
#24
WASHER, FOOTREST RUBBER
43631-31J00
|
$5.82 | ||
|
Unavailable |
|||
|
#25
BRKT,PILLION FOOTREST RH (BLA
43811-31J00-YAP
|
$157.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRKT,PILLION FOOTREST LH (BLA
43821-31J00-YAP
|
$157.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (8X30)
09106-08131
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN
09208-06007
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
E RING
08332-1104A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
