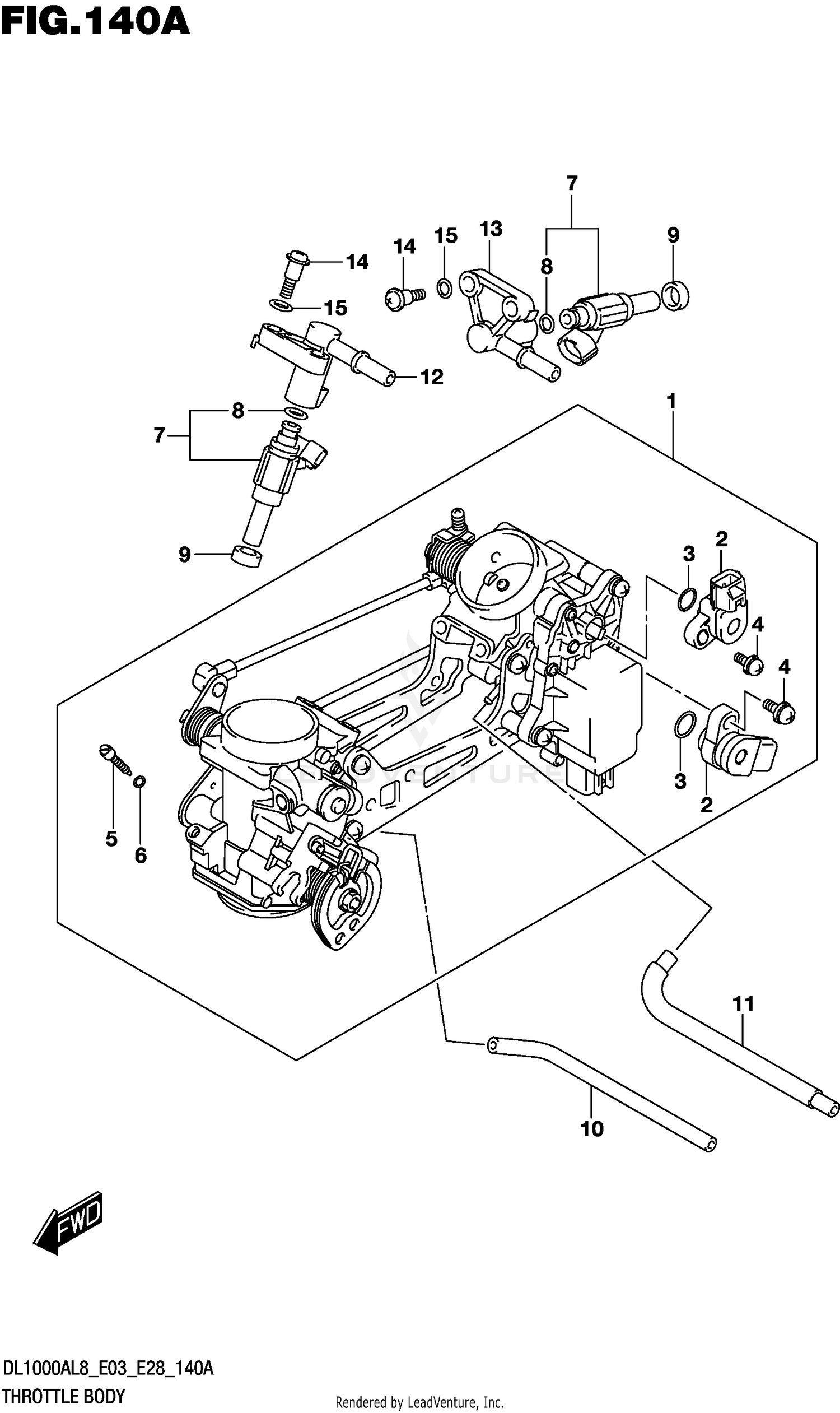

Throttle Body (dl1000al8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY
13405-31J00
Superseded by 13405-31J01
|
$973.26 | ||
|
Unavailable |
|||
|
#2
.SENSOR ASSY
13580-27G21
|
$163.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O-RING
13575-29G00
Superseded by 13575-29G01
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SCREW
13605-02F00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
.ADJUSTER
13662-22J00
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O RING
13453-36F00
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
.INJECTOR ASSY
15710-31J00
|
$285.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
..O-RING
15717-58B00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SEAL
15722-14J00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE
13683-48G10
Superseded by 13683-48G11
|
$46.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE
13683-31J20
|
$38.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
DELIVERY PIPE
15731-11J00
|
$168.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
DELIVERY PIPE
15732-11J00
|
$168.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
13601-11J00
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
