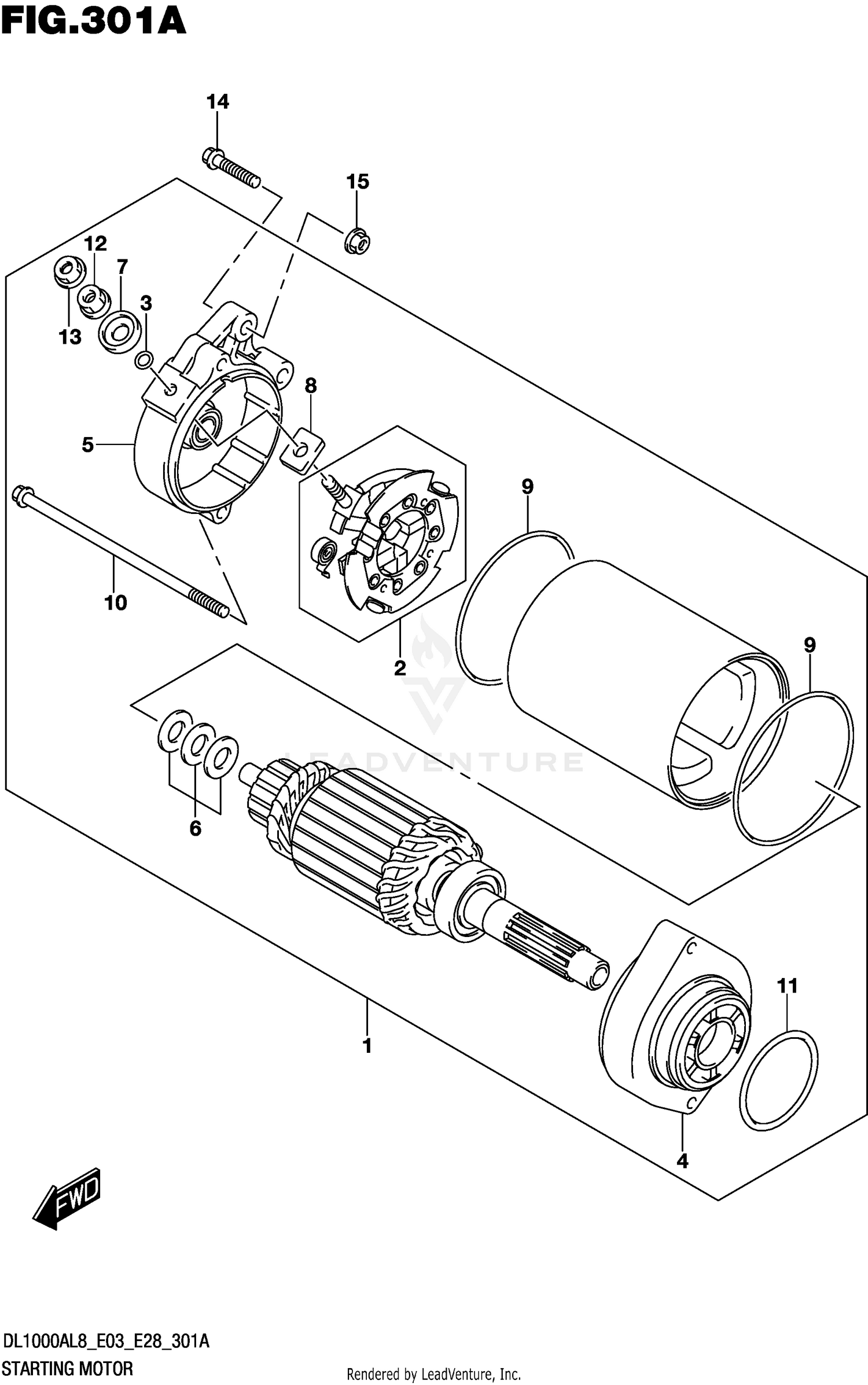

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY,STARTING
31100-06G01
|
$743.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
.HOLDER SET, BRUSH
31132-45C00
|
$77.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O-RING
31143-38300
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
.HOUSING
31150-44B10
|
$82.39 | ||
|
Unavailable |
|||
|
#5
.FRAME
31170-02F10
|
$72.72 | ||
|
Unavailable |
|||
|
#6
.SHIM SET
31170-43400
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BUSHING
31172-38300
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BUSHING
31173-88C00
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O-RING
31264-44110
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
31281-24B10
Superseded by 31281-31D00
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O RING
31156-48B00
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
.NUT
08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08361-3506A
|
$2.20 | ||
|
Unavailable |
|||
