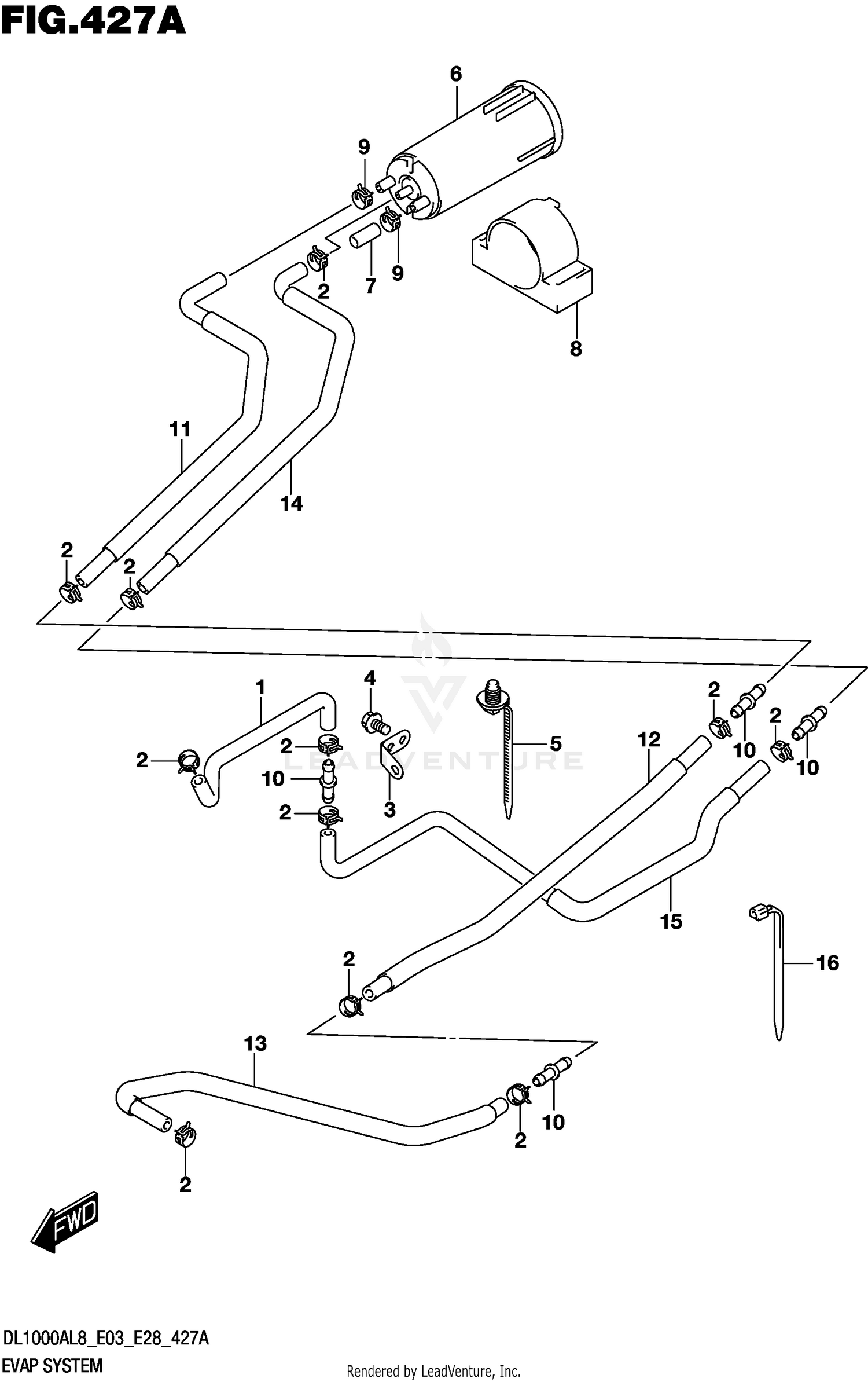

Evap System (dl1000al8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, TANK & BREATHER VALVE
44434-31J01
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP (ID:11)
09401-11413
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SURGE HOSE
18572-31J00
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
CANISTER
17210-15H10
|
$305.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP (OD:11.5)
09251-07003
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, CANISTER
18571-31J10
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP (ID:11.1)
09401-12404
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
09367-06009
|
$2.80 | ||
|
Unavailable |
|||
|
#11
HOSE, CSTR PURGE NO.1
18561-31JB0
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, CSTR PURGE NO.2
18561-31J10
|
$41.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, CSTR PURGE NO.3
18561-31J20
|
$42.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, CSTR SURGE NO.1
18563-31JA0
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, CSTR SURGE NO.2
18563-31JB0
|
$36.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
