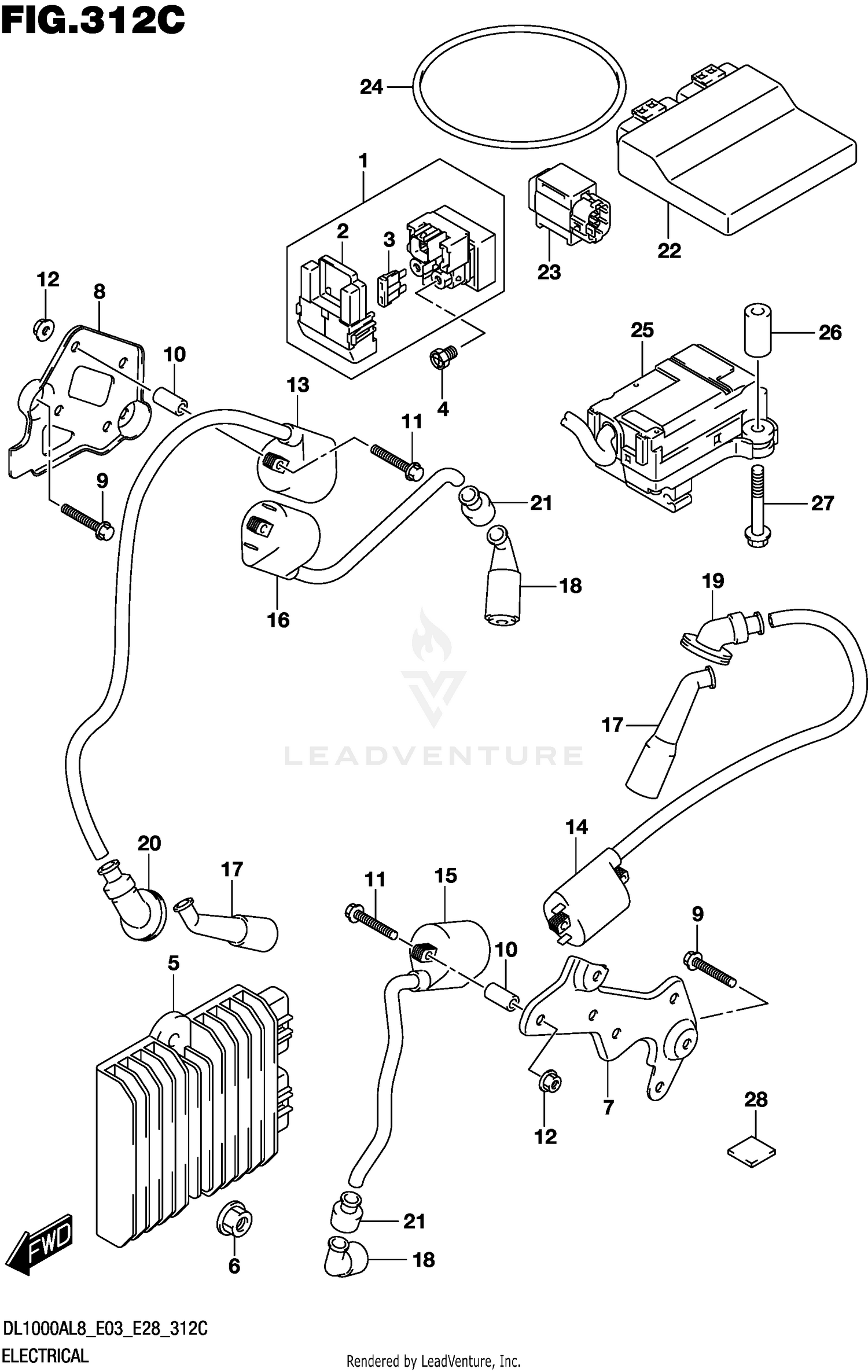

Electrical (dl1000al8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-06G00
Superseded by 31800-06G02
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER, RELAY ASSY
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-31J00
Superseded by 32800-31J10
|
$165.67 | ||
|
Unavailable |
|||
|
#6
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BRACKET, IGNITION COIL
33414-31J00
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, IGNITION COIL
33424-31J00
|
$13.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.4X10X18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X35)
09103-06231
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-06096
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
COIL ASSY,IGNITION
33410-06G00
Superseded by 33410-06G01
|
$131.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
COIL ASSY,IGNITION
33410-17G00
Superseded by 33410-17G01
|
$96.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
COIL ASSY, IGNITION
33410-20H00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COIL ASSY,IGNITION
33410-26G00
Superseded by 33410-26G01
|
$134.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP ASSY, SPARK PLUG
33510-31G00
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP ASSY, SPARK PLUG
33510-31G10
|
$42.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL,HT CORD RR
33542-06G00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL,HT CORD FR
33542-06G10
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
CONTROL UNIT, FI
32920-31J22
|
$1,550.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING (D:3.5,ID:85)
09280-85001
|
$3.72 | ||
|
Unavailable |
|||
|
#25
ACTUATOR ASSY
33970-47H01
Superseded by 33970-47H03
|
$465.80 | ||
|
Unavailable |
|||
|
#26
SPACER (6.2X14.5X26)
09180-06345
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (6X55)
09116-06183
|
$2.53 | ||
|
Unavailable |
|||
|
#28
CUSHION
44534-24F00
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
