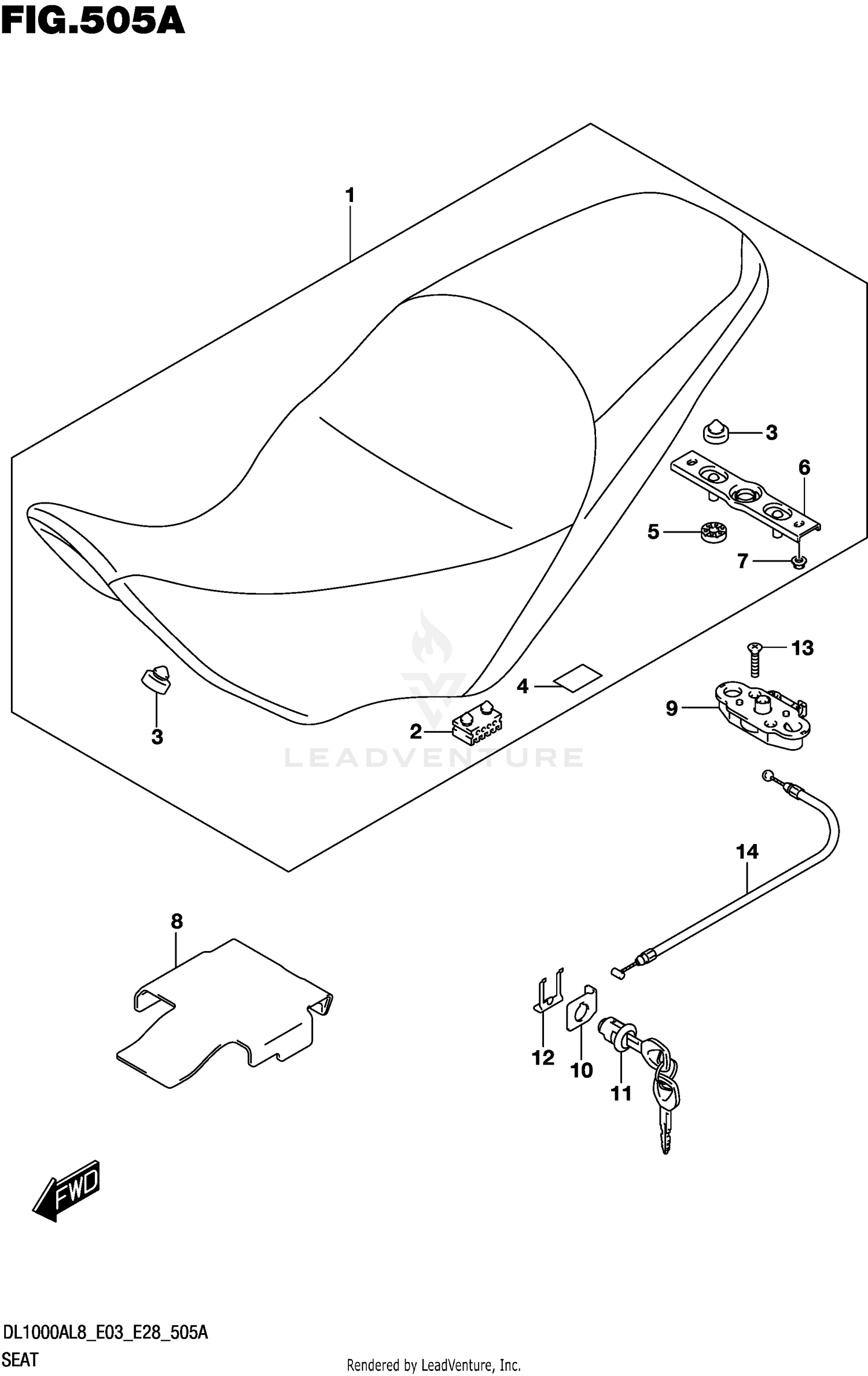

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
SEAT ASSY
45100-31J10-BGQ
Superseded by 45100-31J12-BGQ
|
$561.48 | ||
|
Unavailable |
|||
|
#1-2
SEAT ASSY
45100-31J10-BGR
|
$621.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CUSHION
45149-31300
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION, SEAT MOUNT
09321-10012
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
.TAPE, SEAT BOTTOM
94474-17H00
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION, SEAT LOCK
45213-13601
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
.STRIKER, SEAT LOCK
45215-26F00
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
.NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SHEET, HEAT SHIELD RUBBER
45256-31J00
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, SEAT SUPPORT
45220-47H00
|
$149.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET, SEAT
95700-14F00
Superseded by 95700-14810
|
$132.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, SEAT LOCK ASSY
45289-11F00
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02122-0630A
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE,SEAT LOCK
45280-18G01
|
$26.01 | ||
|
Available to order. Add to View Price |
|||
