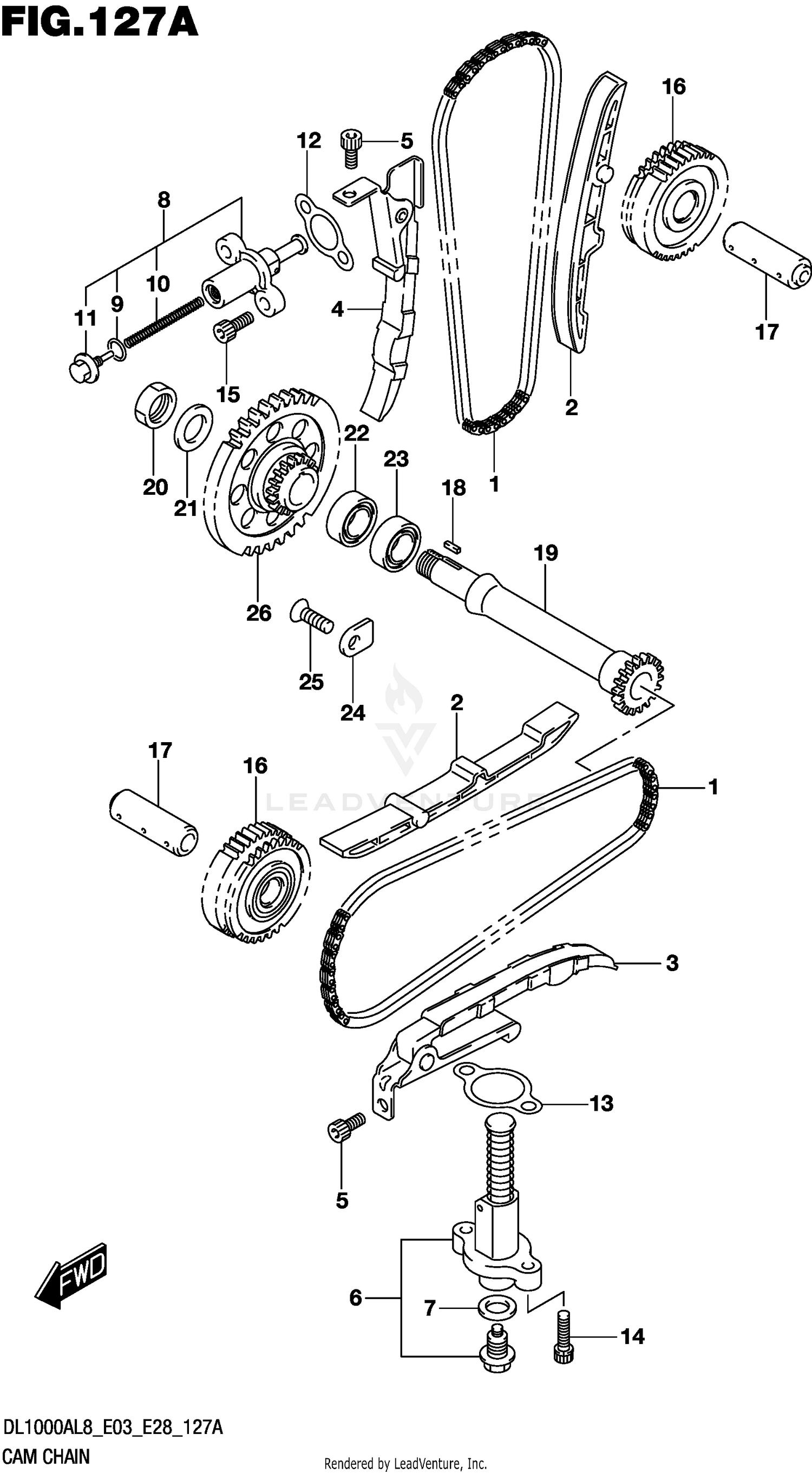

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-23F20
|
$77.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-06G00
|
$38.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER,CAM CHAIN FR
12810-06G00
|
$108.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER,CAM CHAIN,REAR
12815-06G00
|
$108.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
07120-0612A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER ASSY, FRONT TENSIONE
12832-05A10
|
$186.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
.GASKET (12X21X2)
09168-12018
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
ADJUSTER ASSY,TENSIONER
12830-30A01
|
$136.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O-RING
12832-02A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SPRING
12833-30A01
|
$1.89 | ||
|
Unavailable |
|||
|
#11
.PLUG
12834-02A00
|
$8.21 | ||
|
Unavailable |
|||
|
#12
.GASKET,TENSIONER ADJUSTER
12837-19B10
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
.GASKET, TENSIONER ADJUSTER
12837-24A10
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, CAM CHAIN IDLER NO.2
12750-31J10
|
$129.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
(NT:31/41)
12750-31J10
|
$129.58 | ||
|
Unavailable |
|||
|
#17
SHAFT,IDLER NO.2
12755-31J00
|
$42.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
KEY
09421-04004
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT,IDLER
12716-06G00
|
$166.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09140-16001
Superseded by 09140-16005
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM (16X26X1.5)
09181-16212
|
$1.71 | ||
|
Unavailable |
|||
|
#22
BEARING
08112-63030
|
$16.83 | ||
|
Unavailable |
|||
|
#23
BEARING (25X47X8)
09262-25006
|
$32.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
RETAINER, CL HSG BRG
24741-20A00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, IDLER NO.1 (NT:36)
12731-06G01
|
$118.30 | ||
|
Available to order. Add to View Price |
|||
