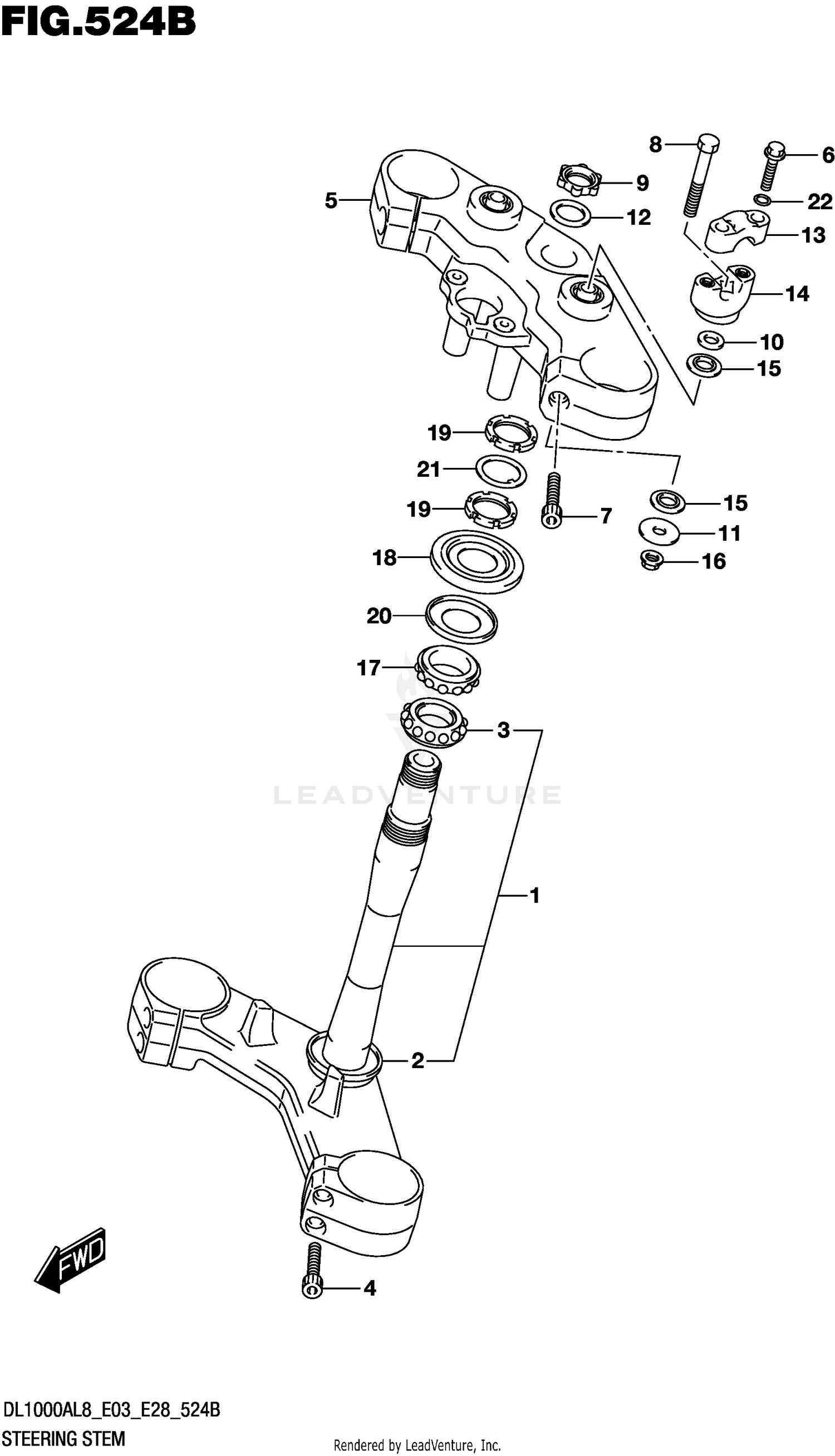

Steering Stem (dl1000al8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,UNDER
51410-31J00
|
$622.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (30X55X17)
09267-30010
|
$58.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X40)
51328-44G10
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, UPPER (BLACK)
51311-31J00-YTA
|
$257.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
51147-31J00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X40)
51328-44G10
|
$7.08 | ||
|
Unavailable |
|||
|
#8
BOLT
51321-17H10
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CAP
51353-24F00
|
$47.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
51354-17H00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
51355-16G00
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
51356-24F50
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, HANDLE (BLACK)
56211-31J00-YTA
|
$46.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, HANDLE (BLACK)
56221-08J00-YTA
|
$93.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER,HANDLE HOLDER
56245-31J00
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING (30X55X17)
09267-30010
|
$58.58 | ||
|
Unavailable |
|||
|
#18
COVER,STEERING UPPER
51643-41G00
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, STEERING STEM
51631-33E00
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$11.67 | ||
|
Unavailable |
|||
|
#21
WASHER, STEERING STEM
51641-33E00
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
09164-08015
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
