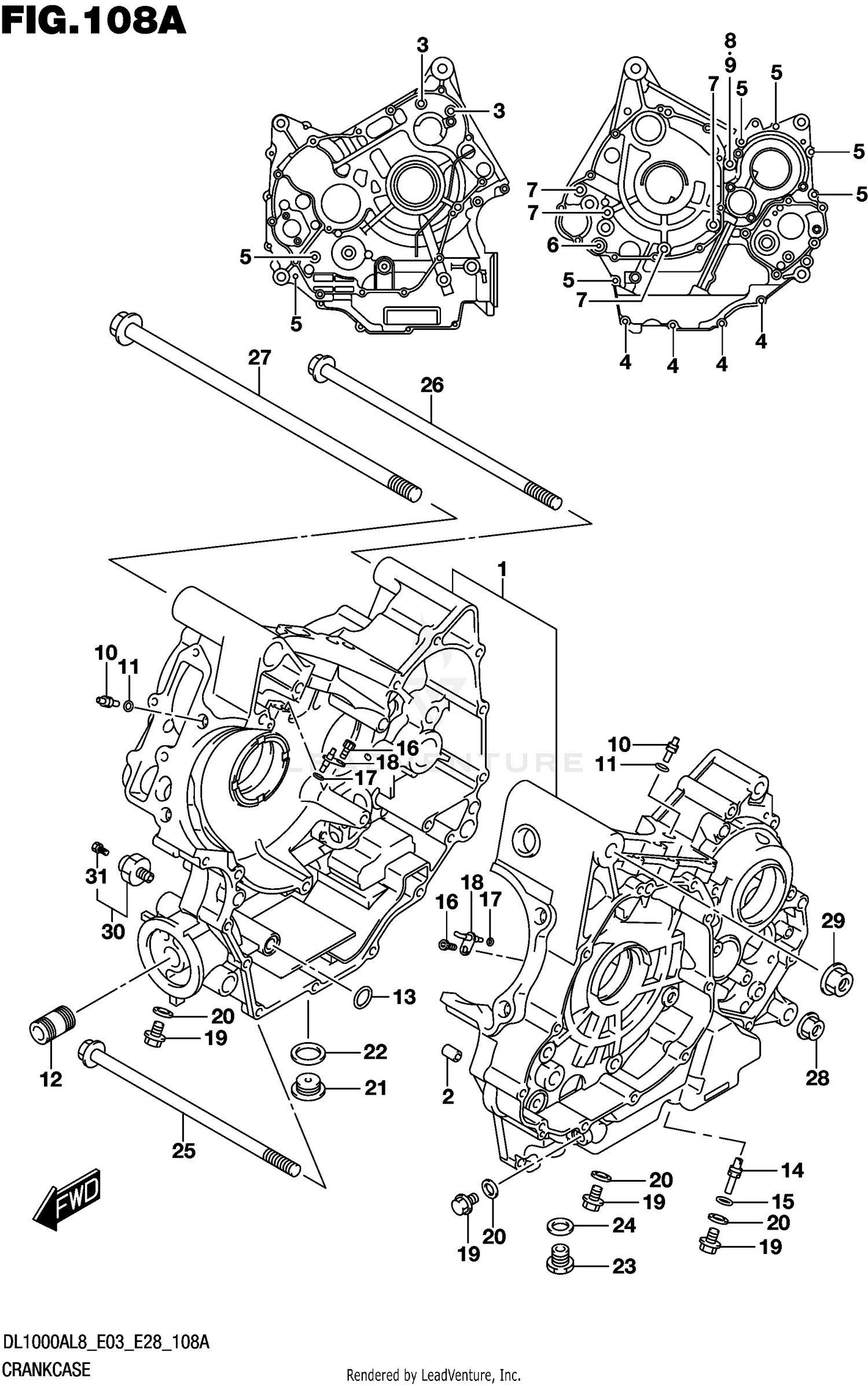

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11306-06831
|
$2,627.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PIN
11319-33E00
|
$4.29 | ||
|
Unavailable |
|||
|
#3
.BOLT (8X110)
09106-08142
|
$5.59 | ||
|
Unavailable |
|||
|
#4
BOLT
01547-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOLT
01547-0670A
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BOLT
01547-0685A
|
|||
|
Unavailable |
|||
|
#7
.BOLT
07120-0890A
|
|||
|
Unavailable |
|||
|
#8
.BOLT (8X125)
09106-08136
|
$6.26 | ||
|
Unavailable |
|||
|
#9
WASHER,LOCK
08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET AIR (#14)
09493-28010
|
$17.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
UNION,OIL STAND
16591-06B01
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, OIL GALLERY
09493-20014
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Unavailable |
|||
|
#16
BOLT (6X12)
09106-06075
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
O RING (D:1.2,ID:4.7)
09280-05007
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET,PISTON COOLING
11390-06G10
|
$24.72 | ||
|
Unavailable |
|||
|
#19
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG (16X8)
09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (16X22X2)
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG (14X20)
09247-14036
|
$7.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#25
BOLT (10X225)
09103-10205
|
$20.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (10X265)
09103-10226
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (L:300)
09103-12016
|
$27.61 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
09159-12056
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$26.40 | ||
|
Unavailable |
|||
|
#31
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
