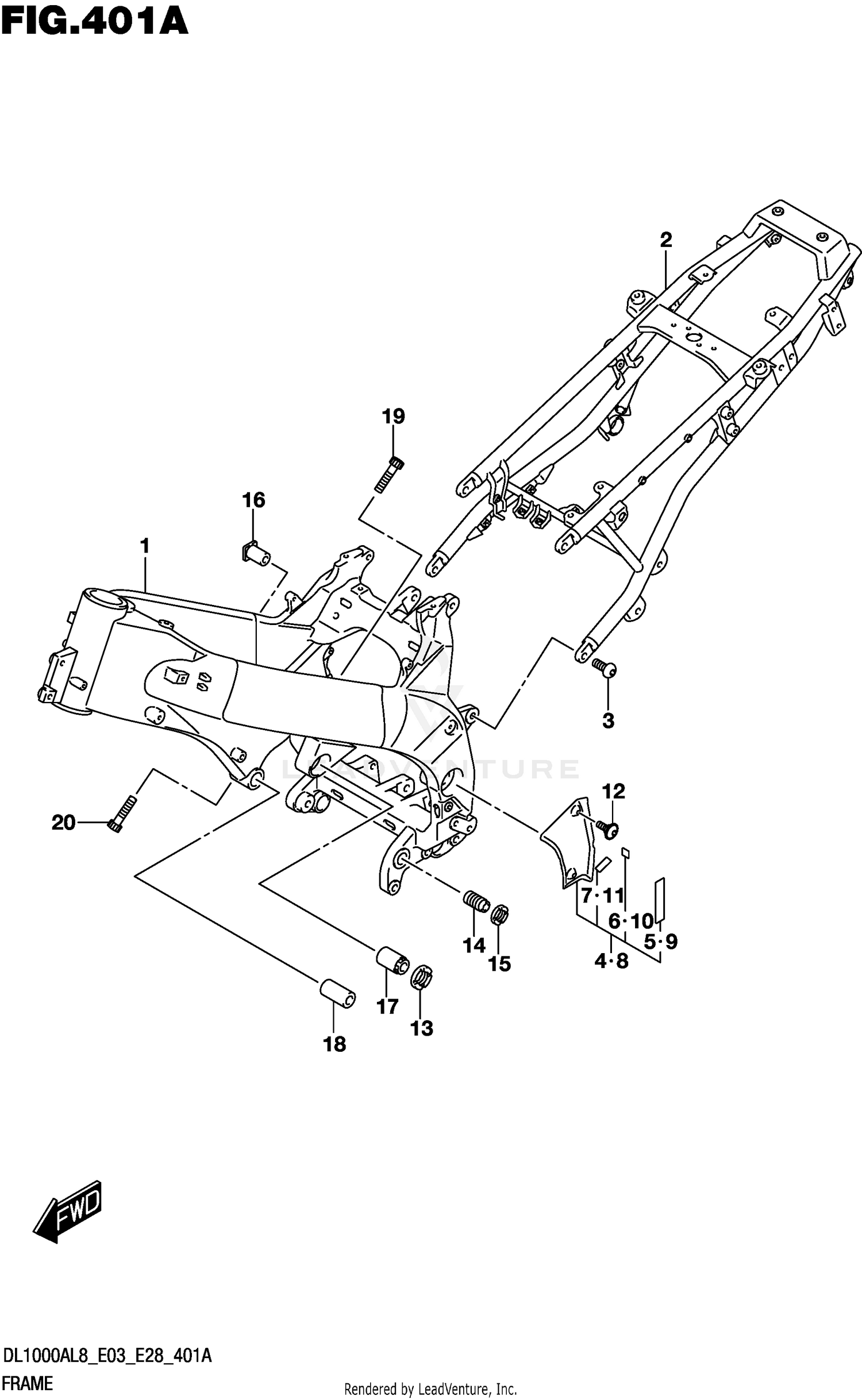

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-31J10-YAP
|
$3,887.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL, SEAT (BLACK)
41200-31J20-YAP
|
$861.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (10X25)
09139-10003
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,PIVOT RH
43580-31J00
|
$25.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CUSHION (10X10X1)
63115-37H00
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CUSHION,PIVOT COVER NO.2
94429-21E00
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER,PIVOT LH
43590-31J00
|
$25.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$6.98 | ||
|
Unavailable |
|||
|
#10
.CUSHION (10X10X1)
63115-37H00
|
$4.62 | ||
|
Unavailable |
|||
|
#11
.CUSHION,PIVOT COVER NO.2
94429-21E00
|
$3.32 | ||
|
Unavailable |
|||
|
#12
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,CRANK CASE ADJUST CTR
41922-19F20
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CRANK CASE ADJUST LWR
41921-16G00
Superseded by 41921-16G01
|
$25.36 | ||
|
Unavailable |
|||
|
#15
NUT,CRANK CASE ADJUST LWR
41922-33E20
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER,MOUNTING REAR UPPER RH
41941-19F01
|
$43.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CRANK CASE ADJUST
41921-47H00
|
$56.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPACER, ENG HEAD MTG RR LH
41942-02F00
|
$31.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
07130-0840B
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07130-0840B
|
$4.83 | ||
|
Unavailable |
|||
