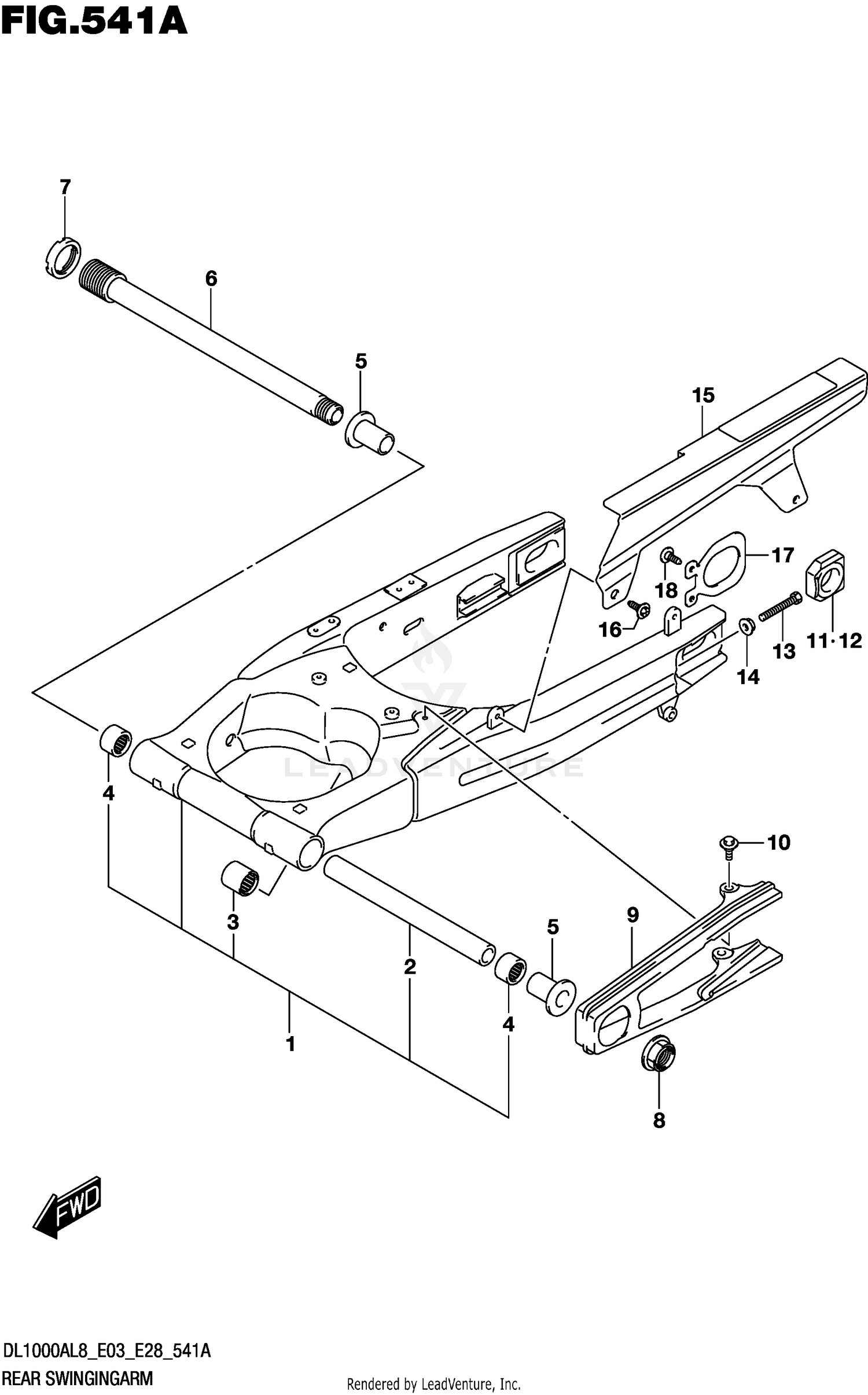

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-31J10-YAP
|
$1,765.83 | ||
|
Available to order. Add to View Price |
|||
|
#1
(BLACK)
61000-31J10-YAP
|
$1,765.83 | ||
|
Unavailable |
|||
|
#2
.SPACER (20.8X27.2X196.7)
61281-31J00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (20X27X30)
09263-20070
|
$39.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (27X35X35)
09263-27013
Superseded by 09263-27015
|
$33.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, SWINGING ARM
61251-41G00
|
$48.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT,RR SWGARM PIVOT
61211-31J00
|
$96.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, PIVOT SHAFT
61214-42E10
|
$45.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-20006
|
$33.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUFFER,CHAIN TOUCH DEFENSE
61273-31J00
Superseded by 61273-31J01
|
$37.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X17.8)
09111-06072
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
ADJUSTER,CHAIN LH
61446-40F00
|
$58.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
ADJUSTER,CHAIN RH
61445-40F00
|
$58.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (8X50)
09100-08287
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08316-1008A
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CASE,CHAIN
61310-16G00
|
$106.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X12)
09111-06107
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE,REAR SWINGINGARM BRKT
61124-33E00
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW (6X12)
09125-06060
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
