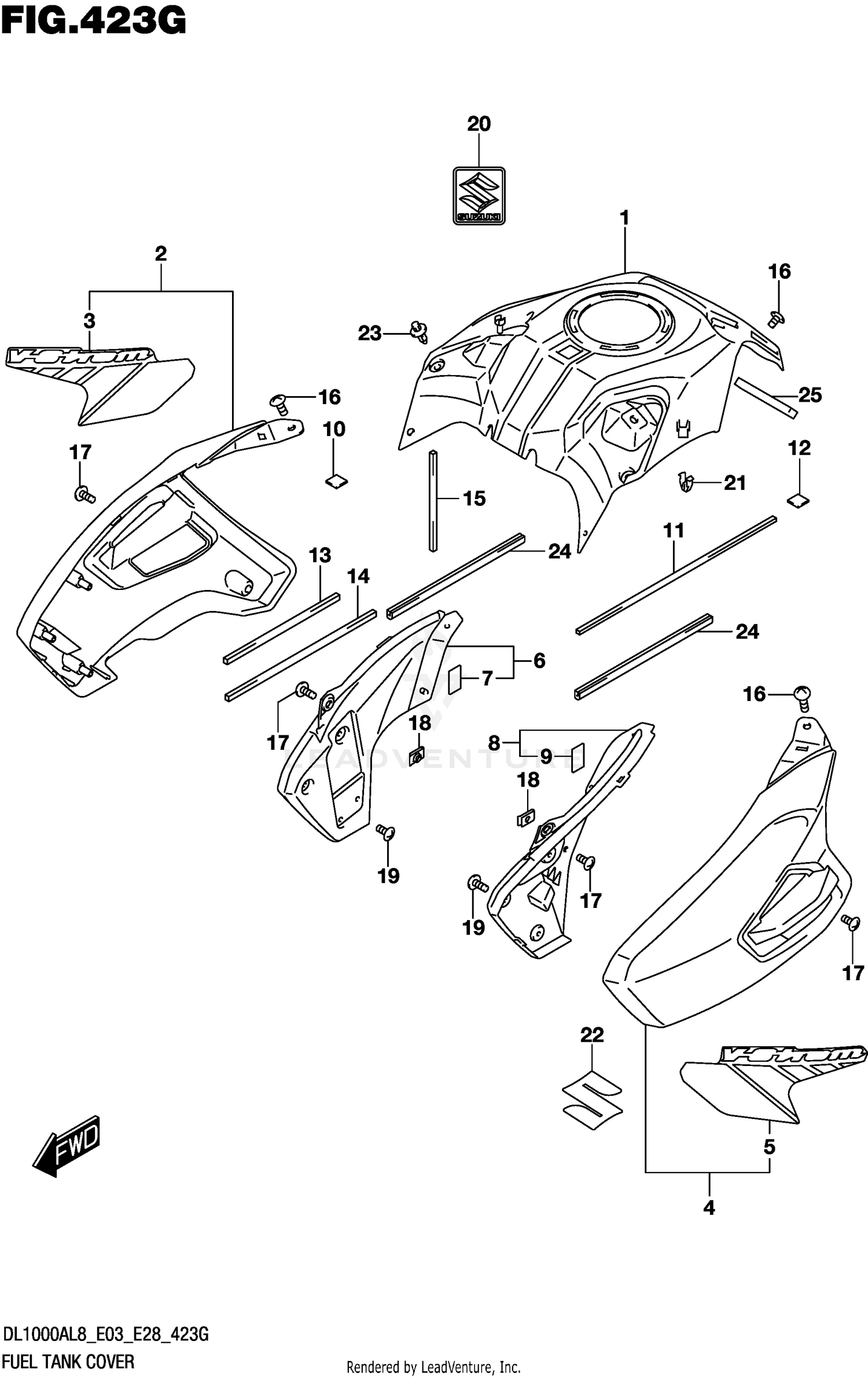

Fuel Tank Cover (dl1000xal8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FUEL TANK
44191-31J00-YKV
Superseded by 44191-31J01-YKV
|
$325.20 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,FUEL TANK
44191-31J00-YKV
Superseded by 44191-31J01-YKV
|
$325.20 | ||
|
Unavailable |
|||
|
#2-1
COVER COMP,FUEL
44170-31J10-YKV
Superseded by 44170-31J11-YKV
|
$228.29 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
COVER COMP,FUEL
44170-31J10-YKV
Superseded by 44170-31J11-YKV
|
$228.29 | ||
|
Unavailable |
|||
|
#2-2
COVER COMP,FUEL
44170-31J10-4TX
Superseded by 44170-31J11-4TX
|
$232.60 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
COVER COMP,FUEL
44170-31J10-4TX
Superseded by 44170-31J11-4TX
|
$232.60 | ||
|
Unavailable |
|||
|
#3-1
.TAPE, FUEL TANK COVER RH
68125-31J00-BHA
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
.TAPE, FUEL TANK COVER RH
68125-31J00-BG4
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
COVER COMP,FUEL
44180-31J10-YKV
Superseded by 44180-31J11-YKV
|
$232.60 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
COVER COMP,FUEL
44180-31J10-YKV
Superseded by 44180-31J11-YKV
|
$232.60 | ||
|
Unavailable |
|||
|
#4-2
COVER COMP,FUEL
44180-31J10-4TX
Superseded by 44180-31J11-4TX
|
$232.60 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
COVER COMP,FUEL
44180-31J10-4TX
Superseded by 44180-31J11-4TX
|
$232.60 | ||
|
Unavailable |
|||
|
#5-1
.TAPE, FUEL TANK COVER LH
68135-31J00-BHA
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
.TAPE, FUEL TANK COVER LH
68135-31J00-BG4
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, FUEL TANK FRONT RH
44270-31J00
|
$46.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
.TAPE, FUEL TANK COVER
45517-31J00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, FUEL TANK FRONT LH
44280-31J00
|
$46.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TAPE, FUEL TANK COVER
45517-31J00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
CUSHION, COVER INNER
44612-13600
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, FUEL TANK COVER
44277-01H00
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, FUEL TANK COVER NO.2
94642-10GA0
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,TANK COVER SIDE NO.1
44176-31J00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, TANK COVER SIDE NO.2
44177-31J00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION,TANK COVER SIDE NO.3
44178-31J00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X10)
09139-06172
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (5X13)
09139-05074
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
03241-0516B
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM,"S"
68281-47HA0
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09409-08326
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM,S
68111-47HA0
|
$52.21 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
MOLDING,FUEL TANK,REAR
44552-24B00
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION
45289-05H00
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
