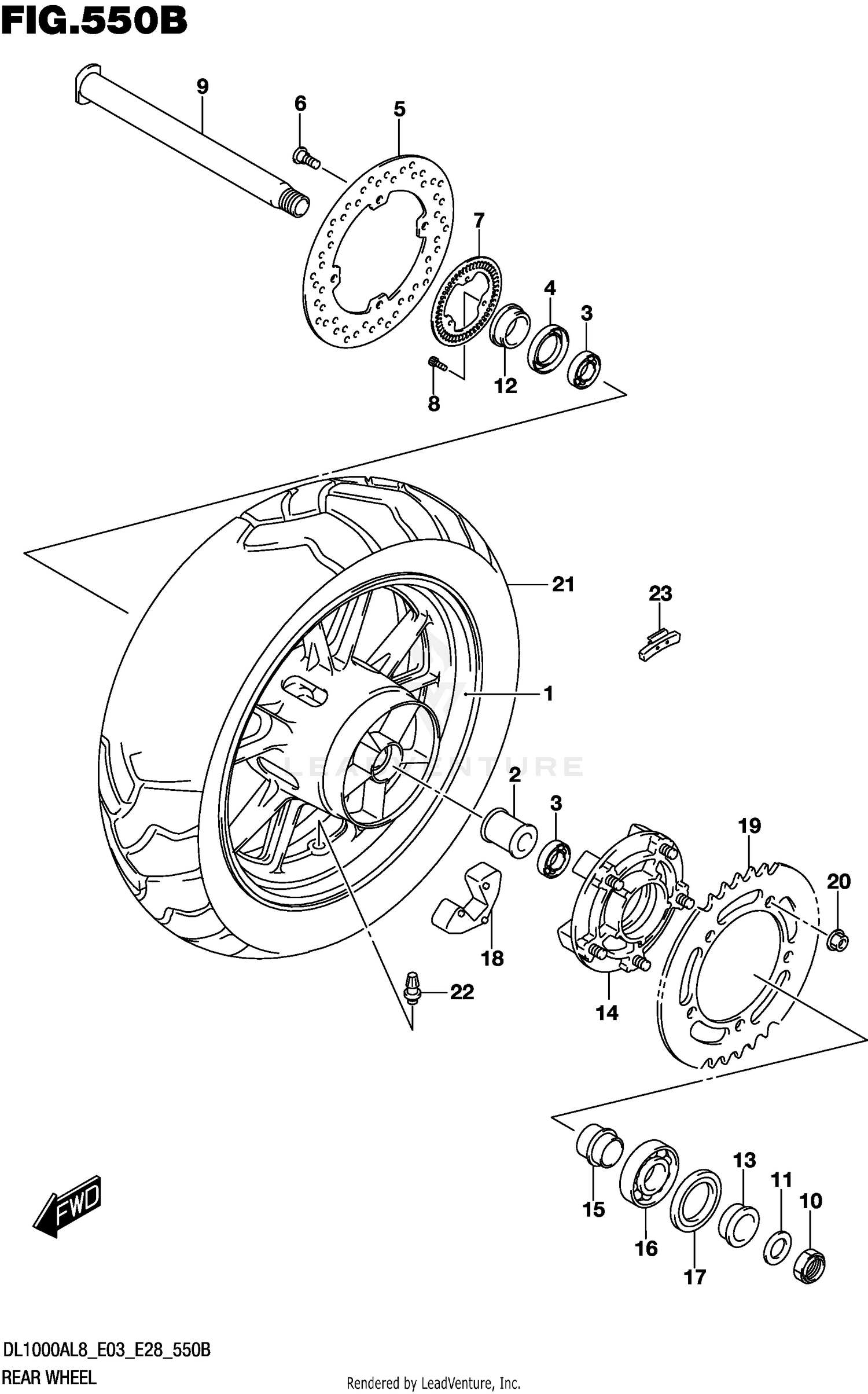

Rear Wheel (dl1000al8 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR (17M/CXMT4.00)
64111-31J00-019
|
$1,149.02 | ||
|
Available to order. Add to View Price |
|||
|
#1
(BLACK)
64111-31J00-019
|
$1,149.02 | ||
|
Unavailable |
|||
|
#2
SPACER, REAR WHEEL BEARING
64731-49G00
|
$63.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (28X52X12)
09262-28052
Superseded by 09262-28062
|
$32.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL,OIL (37X52X8)
09284-37001
Superseded by 09284-37002
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISC,REAR BRAKE
69211-06G00
|
$331.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X21)
09106-08160
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RING, SPEED SENSOR REAR
64162-17G00
|
$22.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0512A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE,RR
64711-31J00
|
$91.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,REAR AXLE
64721-17K00
|
$20.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (25.2X42X3.2)
09160-25070
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,REAR AXLE RH
64741-35F00
Superseded by 64741-35F10
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER,REAR AXLE LH
64751-47H00
Superseded by 64751-47H10
|
$20.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRUM,REAR SPROCKET
64610-35F40
|
$332.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
RETAINER,REAR SPROCKET DRUM
64733-35F00
|
$32.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (32X65X17)
09262-32022
Superseded by 09262-32024
|
$47.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (39X65X7)
09285-39001
|
$12.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
ABSORBER,REAR HUB SHOCK
64651-35F30
|
$48.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPROCKET, REAR (NT:41)
64511-35F20
|
$96.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE, REAR
65110-31J00
|
$364.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
(150/70R17M/C 69V)
65110-31J00
|
$364.31 | ||
|
Unavailable |
|||
|
#22
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#23-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#23-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
