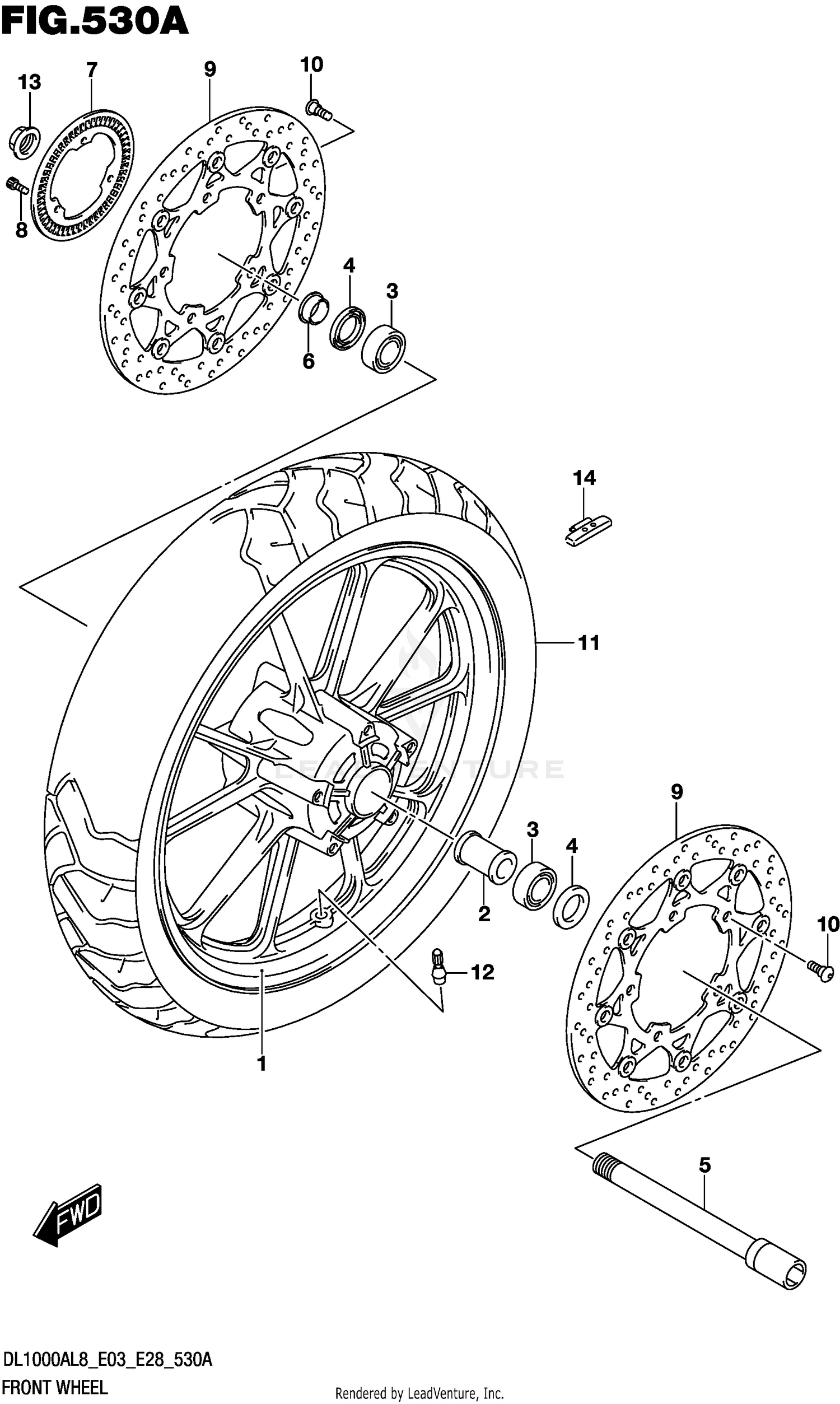

Front Wheel (dl1000al8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL,FR (BLACK)
54111-31J00-019
Superseded by 54111-31J01-019
|
$546.77 | ||
|
Unavailable |
|||
|
#1
WHEEL,FR (BLACK)
54111-31J00-019
Superseded by 54111-31J01-019
|
$546.77 | ||
|
Unavailable |
|||
|
#2
SPACER, FRONT WHEEL BEARING
54731-33E20
|
$52.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (25X52X15)
09262-25167
Superseded by 09262-25191
|
$29.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL (32X52X7)
09285-32004
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE,FR
54711-31J00
|
$149.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, FRONT AXLE RH
54751-41G10
|
$24.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING,SPEED SENSOR FR (50T)
54162-27G00
|
$151.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0512A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISC, FRONT BRAKE
59210-31J00
|
$321.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8X21)
09106-08160
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, FRONT
55110-31J00
|
$329.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
(110/80R19M/C 59V)
55110-31J00
|
$329.67 | ||
|
Unavailable |
|||
|
#12
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT,FRONT AXLE
54712-47H00
|
$44.86 | ||
|
Available to order. Add to View Price |
|||
|
#14-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#14-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#14-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
