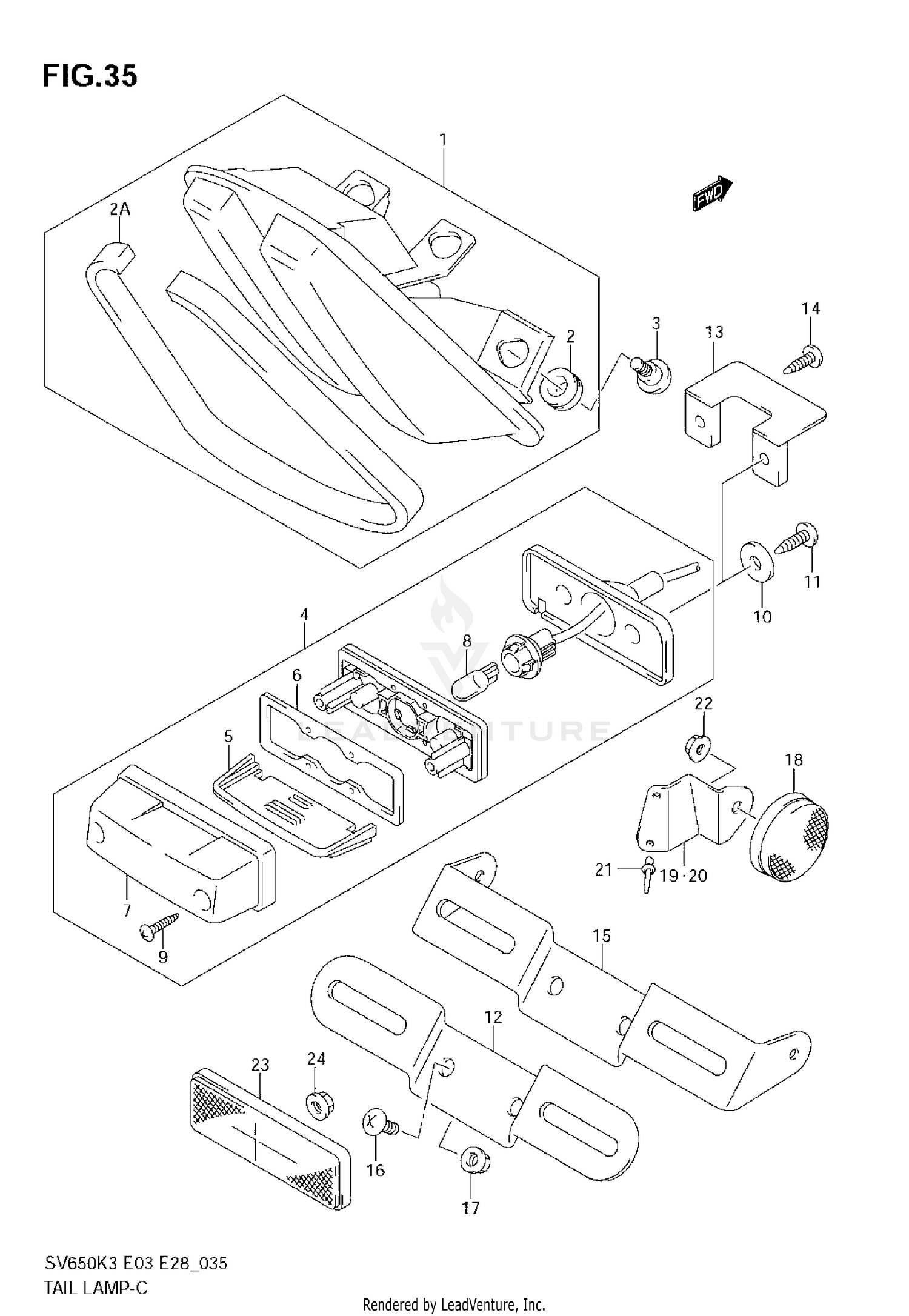

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,RR CO
35710-16G30
Superseded by 35710-16G32
|
$474.97 | ||
|
Unavailable |
|||
|
#1
LAMP ASSY,RR CO
35710-16G31
Superseded by 35710-16G32
|
$474.97 | ||
|
Unavailable |
|||
|
#2
CUSHION
09320-10049
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#2A
CUSHION,SEAT TA
45519-16G00
Superseded by 45519-16G01
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, REAR COMB
09139-06118
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
LAMP ASSY,LICEN
35910-16G00
Superseded by 35910-16G01
|
$87.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
LAMP ASSY,LICEN
35910-16G10
Superseded by 35910-16G11
|
$99.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
.LENS
35912-16G00
Superseded by 35912-16G01
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35913-16G00
|
$6.31 | ||
|
Unavailable |
|||
|
#7
COVER
35917-16G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03211-0416A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (5.5X20X1.2)
09160-05501
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, LICENSE PLATE
35927-16G00
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, LICENSE
35926-16G00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
03541-0520A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, LICENSE PLATE
35927-17G30
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SCREW
02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, REAR SIDE RR, RH
35975-16G00
|
$4.87 | ||
|
Unavailable |
|||
|
#20
BRACKET, REAR SIDE RR, LH
35976-16G00
|
$4.87 | ||
|
Unavailable |
|||
|
#21
RIVET, REAR SIDE RR BKT
09229-04050
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, REAR SIDE RR
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, REAR RR
08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
